Talc milling line for Sri Lanka beauty industry

Introduction: The Growing Demand for High-Quality Talc in Sri Lanka

Sri Lanka’s beauty and personal care sector is expanding rapidly, driven by rising domestic consumption and growing exports to South Asian and Middle Eastern markets. Talc is a key mineral ingredient in face powders, body powders, blush, foundation, and eye shadow. To produce cosmetic-grade talc, manufacturers need a milling line that ensures consistent fineness, high whiteness, contamination control, and low operating cost. This article introduces a complete talc milling line design and recommends advanced equipment that can meet the strict requirements of the Sri Lankan beauty industry.

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China, and has made great achievements in the field of ultra-fine powder grinding. For talc processors in Sri Lanka, Zenith’s grinding mills offer reliable performance, precise classification, and high end-product quality.

Raw Material and Product Specifications

Talc ore from Sri Lanka contains varying amounts of magnesite, chlorite, and other gangue minerals. For beauty applications, simple particle size reduction is not enough. The process must increase surface area, maintain purity, and avoid iron contamination. Typical finished product specifications for cosmetic talc include D97 between 10 and 25 micrometres, whiteness above 90 percent, and no detectable asbestos or heavy metals.

A milling line for the beauty industry usually consists of primary crushing, material conveying, grinding, classification, dust collection, and final packaging. Each step must be designed carefully so that the final powder is smooth, pure, and safe for skin contact.

Process Design of a Talc Milling Line

Large run-of-mine talc is first reduced to below 20-30 mm by a jaw crusher or hammer mill. The crushed ore is then transferred to a grinding mill by a bucket elevator or belt conveyor. In the grinding chamber, rollers and grinding rings pulverize the talc. The fine powder is carried by air to a classifier, where oversized particles are returned for additional grinding. Qualified powder is collected by cyclones and bag filters, while the clean air is discharged by an induced draft fan.

For Sri Lankan cosmetics makers, the line should include metal detection and magnetic separation after grinding to ensure no ferrous contamination. The classifier speed and air volume are adjusted to meet the exact particle size distribution required by the beauty industry.

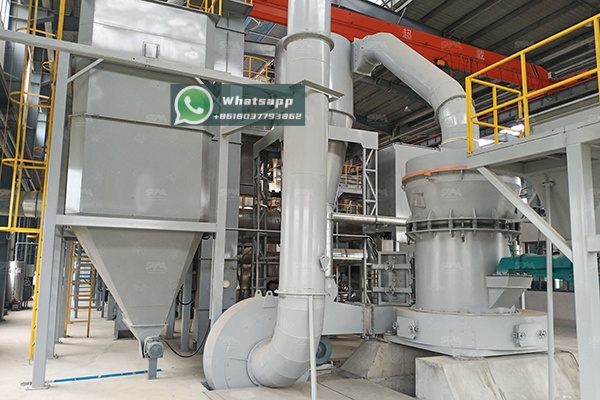

Figure 1 above shows a typical process flow for a cosmetic talc milling line. The entire system is installed under negative pressure to avoid dust leakage, which is essential for hygiene-sensitive applications.

Zenith’s Core Equipment for Talc Milling

Shanghai Zenith Machinery Co., Ltd. specializes in the research, development, and production of industrial powder grinding equipment and related devices. The main products include the MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. For a Sri Lankan beauty industry project, Zenith recommends two outstanding products: the MTW Trapezium Grinding Mill and the XZM Ultrafine Grinding Mill.

1. MTW Trapezium Grinding Mill

The MTW series Trapezium Grinding Mill is a multi-patent machine with compact structure, long service life, and environmentally friendly design. It is ideal as the main mill when the required fineness is around 0.045 mm, which is about 325 mesh. The MTW mill can also be applied upstream to produce a uniform feed for an ultra-fine mill. The following models are available:

The MTW mill uses curved air guiding plates, a conical classifier, and a split transmission system. These features improve classifying accuracy and reduce energy usage. In a cosmetic talc line, an MTW110 mill can produce 3-9 t/h of 325 mesh talc powder, making it a reliable and affordable first-stage solution.

2. XZM Ultrafine Grinding Mill

When the beauty industry requires superfine talc powder, the XZM Ultrafine Grinding Mill is a perfect choice. This mill is widely used for powder production from 325 to 2500 mesh and is suitable for soft or medium-hard materials with moisture content below 6 percent. With the XZM mill, Sri Lankan manufacturers can produce talc powder with high surface area, smooth feel, and excellent absorption, all of which are essential for cosmetics.

For a small or mid-sized Sri Lankan beauty talc factory, the XZM221 offers an output of 0.5 to 4.5 t/h. This matches the demand of many cosmetics brands. The final product has a high content of end-fines, which improves the tactile feel of the talcum powder.

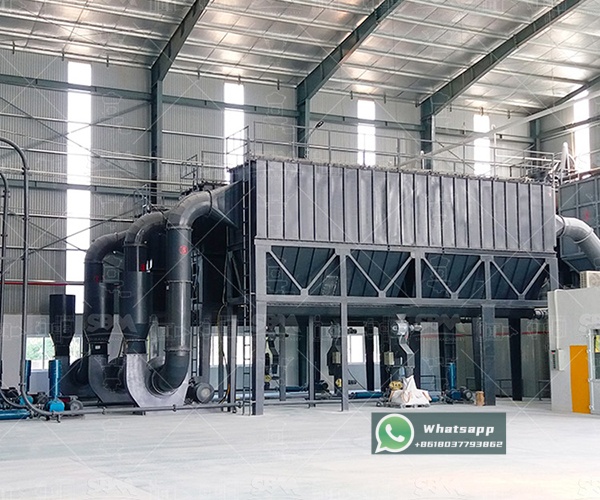

Figure 2 illustrates the structure of the XZM Ultrafine Grinding Mill. The machine is designed with a multi-head classifier and a high-pressure blower. The entire system is automated, so operators can adjust fineness easily without stopping the line.

How the Two Machines Work in a Complete Line

In many talc processing plants, the run-of-mine talc is crushed to below 20 mm before feeding into the XZM mill. If the raw material is relatively soft, the talc can be fed directly to the XZM after a hammer mill; if larger capacity is required, the MTW mill is installed as the primary mill. The MTW mill produces 100-325 mesh powder, which is then fed into the XZM mill for further refinement to 600-2500 mesh.

This two-stage configuration offers several advantages in Sri Lanka. First, it reduces the load on the ultrafine mill and extends its service life. Second, it allows one line to produce both conventional talc powder and cosmetic-grade superfine powder. Third, it makes the line flexible to changes in market demand.

Important Design Considerations for the Beauty Industry

When building a talc milling line for beauty products, the following factors must be considered:

• Hygiene and cleaning: contact parts should be made of stainless steel or be easily cleaned.
• Low iron contamination: use ceramic or high-alumina liners and grinding media where necessary.
• Classification precision: the particle size distribution must be narrow for a smooth skin feel.
• Dust control: the entire system should run under negative pressure.
• Whiteness preservation: avoid over-grinding which may reduce brightness.
• Asbestos-free guarantee: the mill must not introduce cross-contamination.

Zenith’s mills have sealed housings, clean gas flow paths, and optional ceramic modifications. These features help Sri Lankan producers maintain the strict quality standards demanded by the beauty industry.

Why Shanghai Zenith Machinery Is the Right Partner

Shanghai Zenith Machinery Co., Ltd. is a leading manufacturer of industrial powder grinding equipment in China. The company specializes in the research, development, and production of grinding mills, crushers, and related equipment. Its product line includes the MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. This wide range allows Zenith to design a customized milling line for each customer.

For Sri Lankan investors, Zenith offers complete solutions with project consultation, site investigation, equipment selection, layout design, installation guidance, and after-sales service. The company’s experience in ultrafine powder mills has made it a trusted name in mineral processing projects around the world.

Figure 3 shows a Zenith grinding mill being installed at a mineral processing site. The robust construction and simple maintenance reduce downtime, which is vital for continuous supply to the beauty industry.

Conclusion

The Sri Lankan beauty industry needs high-quality talc powder that is pure, ultra-fine, and consistent. A properly designed talc milling line must combine efficient crushing, precise grinding, and rigorous contamination control. Shanghai Zenith Machinery Co., Ltd. offers the MTW Trapezium Grinding Mill and the XZM Ultrafine Grinding Mill as two ideal solutions. These machines provide high capacity, excellent fineness, low energy consumption, and stable operation.

By partnering with Zenith, Sri Lankan talc processors can establish a modern milling line that supports the growing local cosmetics manufacturing sector and even opens the door to export markets. For more information on equipment specifications and process design, please contact Zenith’s professional team.
