Petroleum Coke Mill for Refinery Fuel Powder in Malaysia

Malaysia is one of Southeast Asia’s most dynamic refining and energy markets. The country hosts major refining and petrochemical complexes in Pengerang, Kerteh, Melaka, Bintulu and other industrial zones. As refineries upgrade heavy residues and produce petroleum coke, many operators are looking for reliable ways to convert this by-product into fuel powder for boilers, kilns, gasifiers and power plants. A properly selected petroleum coke mill is therefore a key asset for refinery fuel preparation in Malaysia.

Why Petroleum Coke Is a Strategic Refinery Fuel in Malaysia

Petroleum coke, often called petcoke, is a carbon-rich solid produced during the delayed coking or other residue upgrading processes. It has a high calorific value and can be used as a substitute for coal, fuel oil or natural gas in industrial combustion. For Malaysian refineries, using petcoke as fuel powder can reduce energy costs, improve residue utilization and create a more circular internal energy flow. However, raw petcoke is not ready for direct combustion in most burners. It must be crushed, dried and ground into a fine, consistent powder.

The quality of petcoke varies widely. Some grades are hard and abrasive, while others contain high moisture or high sulfur. These properties affect mill capacity, wear part life, drying requirements, explosion safety and environmental control. For this reason, a petroleum coke mill for refinery fuel powder in Malaysia must be selected with a full understanding of the material test data and the required particle size distribution.

Milling Challenges of Petroleum Coke

Petroleum coke is more difficult to grind than many conventional coals. It often has low volatile matter, high fixed carbon, high hardness and abrasive ash or catalyst fines. A petcoke grinding system must handle several challenges at the same time:

• Hardness and abrasiveness, which demand wear-resistant grinding elements and a robust mill body.
• Moisture content, which requires integrated drying using hot gas or waste heat.
• Fineness control, because fuel powder usually needs 200 mesh or finer for efficient combustion.
• Explosion and fire safety, because fine carbon powder can create dust hazards.
• Environmental compliance, because sulfur and dust emissions must be controlled.
• Continuous operation, because refinery fuel preparation cannot tolerate frequent unplanned shutdowns.

In Malaysia, humidity and ambient conditions can also influence material handling and storage. Therefore, the mill, feeder, classifier, dust collector and hot air system must be designed as one integrated solution.

Key Selection Criteria for a Petcoke Mill in Malaysia

When choosing a petroleum coke mill for refinery fuel powder in Malaysia, plant owners should consider capacity, feed size, product fineness, drying capability, specific energy consumption, maintenance access, spare parts availability and local service support. A typical refinery fuel powder specification may require 90 percent passing 200 mesh, which is about 75 microns. Some advanced burners and gasifiers may require 90 percent passing 325 mesh, which is about 45 microns. The mill must be able to deliver this fineness while maintaining stable output and low vibration.

Because petcoke is abrasive, the grinding zone should be protected with high-quality wear liners and grinding rollers or rings. The classifier should be adjustable so that operators can change fuel fineness according to boiler load and fuel quality. The dust collection system should use high-efficiency bag filters to meet Malaysian environmental regulations. Finally, the supplier should provide process design, commissioning and long-term after-sales support.

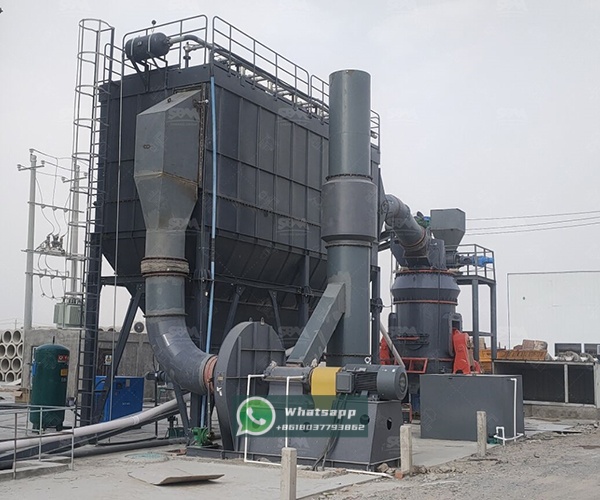

Recommended Solution: LM Vertical Coal Mill Series from Shanghai Zenith

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. For medium-to-large refinery fuel powder projects in Malaysia, we recommend the LM Vertical Coal Mill Series. This mill integrates crushing, grinding, powder selection, drying and material conveying into a single compact system. It is suitable for coal, petroleum coke, lignite and similar fuels. Hot air can be introduced into the mill to dry high-moisture petcoke while grinding, which makes the LM series highly efficient for refinery fuel preparation.

The LM Vertical Coal Mill Series offers high capacity, low energy consumption, small occupied area and low noise. Its vertical grinding principle reduces repeated grinding and improves powder shape and consistency. The dynamic classifier allows flexible adjustment of product fineness, and the hydraulic roller lifting system makes maintenance easier and safer. For a Malaysian refinery that needs a continuous fuel powder supply, the LM series can be configured with an automatic control system to monitor mill load, temperature, pressure difference and product fineness.

For a refinery requiring 35-50 t/h of petroleum coke fuel powder, the LM220M is a strong choice. For larger fuel preparation plants, the LM280M can deliver 60-90 t/h. For smaller auxiliary fuel systems, the LM130M provides 10-17 t/h. These models can be combined with hot air generators, bag filters, coal powder storage silos and pneumatic conveying systems to create a complete refinery fuel powder plant.

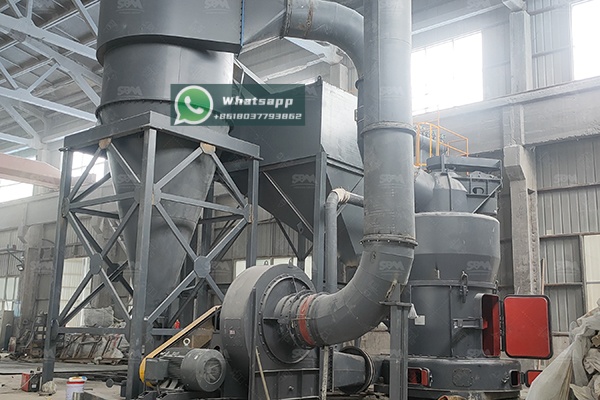

Alternative Solution: MTW Trapezium Grinding Mill

For small-to-medium capacity projects, or for refineries that prefer a conventional air-swept grinding workshop, Shanghai Zenith also recommends the MTW Trapezium Grinding Mill. This mill has multiple patents and is known for its compact structure, long service life and eco-friendly design. It is suitable for processing materials with a maximum input size of 50 mm and can produce a final product as fine as 0.038 mm. The MTW mill is widely used in fuel preparation, chemical processing, building materials and industrial powder production.

The MTW215G can produce 15-45 t/h, which makes it suitable for refinery fuel powder lines that need flexible output. The MTW138Z and MTW175G are ideal for 6-25 t/h applications. With an adjustable classifier and high-efficiency dust collector, the MTW mill can grind petroleum coke to 200 mesh or finer while controlling dust emissions. It is a practical option for Malaysian plants with limited space or modular expansion plans.

Process Configuration for a Petcoke Fuel Powder Plant

A complete petroleum coke milling plant usually includes raw material receiving, storage, crushing or screening, feeding, grinding and drying, classification, dust collection, fine powder storage and conveying to the burner. With an LM Vertical Coal Mill, raw petcoke is crushed to less than 38-50 mm and fed into the mill through a rotary feeder. The material falls onto the rotating grinding table and is ground by rollers. Hot gas from a hot air generator, kiln waste heat or other source dries the material during grinding. The dynamic classifier rejects coarse particles, which return to the grinding table, while fine powder is carried to a bag filter for collection.

With an MTW Trapezium Grinding Mill, the process is similar but uses an air-swept grinding chamber and a high-efficiency separator. Both systems can be designed with inert gas or temperature control for safe operation. Storage silos should be equipped with level indicators, safety valves and reliable discharge devices. Pneumatic conveying or mechanical conveyors can deliver the finished fuel powder to boilers, kilns or gasifiers.

Environmental and Operational Benefits

Malaysia has strict environmental standards for industrial emissions. The LM and MTW mills from Shanghai Zenith can be configured with negative pressure operation, pulse-jet bag filters and sound insulation to reduce dust and noise. High grinding efficiency also means lower specific power consumption per ton of fuel powder, which reduces operating costs and carbon intensity. Wear-resistant materials extend the service life of rollers, rings, liners and classifier blades. Hydraulic maintenance systems and remote monitoring help reduce downtime and improve plant availability.

Why Choose Shanghai Zenith Machinery Co., Ltd.

Shanghai Zenith Machinery Co., Ltd. is specialized in the research, development and production of industrial powder grinding equipment and other related devices. The main products include MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill and Hammer Mill. We provide complete process design, equipment manufacturing, installation, commissioning, operator training and spare parts support. For Malaysian customers, we can assist with material testing, capacity calculation, layout design and long-term service planning.

Conclusion

Petroleum coke will continue to play an important role as a refinery fuel in Malaysia. Converting petcoke into a fine, dry and consistent fuel powder allows refineries to reduce fuel costs, improve residue utilization and meet environmental requirements. For high-capacity and high-moisture petcoke applications, the LM Vertical Coal Mill Series is the recommended solution. For small-to-medium and flexible fuel powder production, the MTW Trapezium Grinding Mill is an excellent alternative. By working with Shanghai Zenith Machinery Co., Ltd., Malaysian refinery operators can build a reliable, efficient and future-ready petroleum coke milling plant.
