Heavy calcium carbonate grinding mill for polymer filler in Oman

Introduction

Oman is steadily expanding its industrial minerals and polymer processing sectors, and heavy calcium carbonate (GCC) has become an important raw material for plastic compounds, masterbatch, PVC profiles, pipes, sealants, and coatings. As a functional filler, GCC can reduce resin consumption, improve stiffness and dimensional stability, and contribute to better surface appearance and thermal properties. For polymer processors in Oman and the wider GCC region, the selection of a reliable heavy calcium carbonate grinding mill is therefore a critical decision that affects product quality, production cost, and long-term competitiveness. This article reviews the main quality requirements for GCC polymer filler, explains how to select suitable grinding equipment, and recommends two products from Shanghai Zenith Machinery Co., Ltd. for different production targets.

Why Heavy Calcium Carbonate Matters for Polymer Fillers in Oman

Heavy calcium carbonate is produced by mechanical grinding of natural limestone, marble, or chalk. Compared with precipitated calcium carbonate, GCC generally offers a favorable cost-performance ratio, good whiteness, and stable mineral composition. In polymer applications, GCC is widely used in PVC pipes and profiles, PE and PP masterbatch, breathable films, cable compounds, artificial marble, sealants, and adhesives. The filler not only lowers formulation cost but also influences mechanical strength, impact resistance, dispersion, gloss, and processing rheology.

Oman has access to substantial carbonate mineral resources and a growing industrial base, including plastics processing and construction-related manufacturing. Local and regional polymer producers increasingly require consistent GCC powder with controlled particle size distribution, low moisture, low grit content, and good dispersion. These requirements place high demands on the grinding system. A mill that simply produces fine powder is not enough; the entire process must deliver stable fineness, reliable capacity, low contamination, and efficient dust collection under the hot and dusty conditions common in the region.

Key Quality Requirements for GCC Polymer Filler

Fineness and Particle Size Distribution

The required fineness of GCC depends on the final polymer product. General PVC pipes and profiles often use 400 to 800 mesh calcium carbonate, while masterbatch, thin films, breathable films, and engineering plastics may require 1250 to 2500 mesh or an ultrafine product with D97 in the range of 5 to 30 micrometres. A narrow particle size distribution is important because coarse particles can cause surface defects, while excessive fines can increase viscosity, reduce loading capacity, and cause dusting. Therefore, the grinding mill should be equipped with an efficient classifier and should allow precise adjustment of the top cut size.

Moisture, Dispersion, and Surface Treatment

Moisture control is essential for polymer filler production. High moisture can lead to agglomeration, feeding problems, and poor dispersion in the polymer matrix. For high-quality applications, GCC powder should be dry and free-flowing, and the grinding system should ideally integrate drying, grinding, and classification. Surface modification with stearic acid or other coupling agents is also common for polymer fillers, because it improves compatibility between the hydrophilic mineral surface and the hydrophobic polymer. Good dispersion helps achieve higher filler loading without sacrificing mechanical properties.

Contamination Control and Stable Operation

Iron contamination and wear debris can affect whiteness and final product quality, especially for white and light-colored polymer compounds. The grinding mill should use reliable wear parts, effective sealing, and proper dust collection. Stable operation is equally important: polymer producers require continuous supply and consistent quality, so the equipment must be robust, easy to maintain, and supported by readily available spare parts. In Oman, high ambient temperatures and dust require careful attention to lubrication, cooling, and maintenance access.

Grinding Mill Selection for Heavy Calcium Carbonate

Several mill types can be used for calcium carbonate processing, including Raymond mills, ball mills, trapezium mills, vertical mills, and ultrafine grinding mills. For polymer filler production, the optimal choice depends on target fineness, required capacity, raw material moisture, investment budget, and product portfolio. Vertical and ultrafine mills are often preferred for modern GCC plants because they integrate grinding, drying, classification, and conveying, occupy a smaller footprint, and can produce a consistent fine powder with lower noise and dust. Shanghai Zenith Machinery Co., Ltd. offers a complete range of industrial grinding equipment, including MTW Trapezium Grinding Mill, MTM Medium-Speed Grinding Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, Raymond Mill, Ball Mill, and Hammer Mill. For Oman GCC polymer filler projects, two products are particularly suitable: the MTW Trapezium Grinding Mill for efficient fine powder production and the LUM Ultrafine Vertical Mill for premium ultrafine filler.

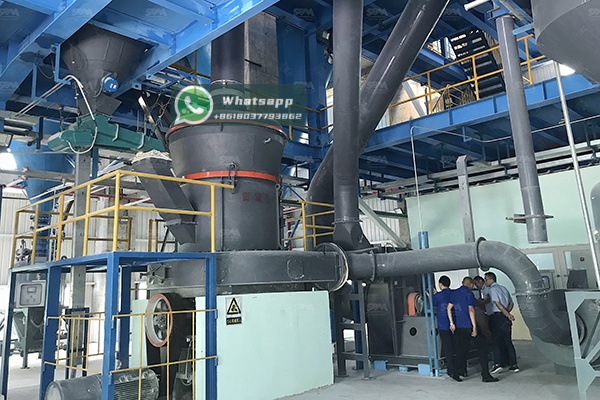

Recommended Product 1: MTW Trapezium Grinding Mill

The MTW Trapezium Grinding Mill is a multiple-patent product known for its compact structure, long service life, and eco-friendly design. It is suitable for processing materials with a maximum feed size of up to 50 mm and can produce final products in the range of 1.6 to 0.045 mm. The series includes models such as MTW110, MTW110Z, MTW138Z, MTW175G, and MTW215G, with capacities ranging from 3 t/h to 45 t/h depending on the model and material fineness. For a polymer filler plant in Oman that requires 325 to 400 mesh calcium carbonate with high output, the MTW138Z, MTW175G, or MTW215G can be considered according to the required capacity. The mill offers stable grinding pressure, efficient classification, and convenient maintenance, making it a practical choice for cost-effective GCC filler production. It can also be integrated into a closed-circuit grinding plant with dust collection, material conveying, and packaging systems.

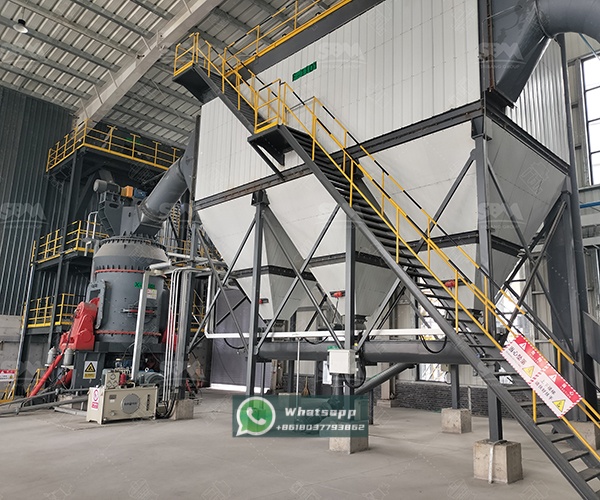

Recommended Product 2: LUM Ultrafine Vertical Mill

For high-performance polymer fillers, the LUM Ultrafine Vertical Mill is an excellent solution. It integrates grinding, drying, classifying, and transportation in one machine and occupies minimal space. The LUM series is designed to produce a high content of end-fines and features intelligent control for easier operation and maintenance. Models such as LUM1525, LUM1632, and LUM1836 can produce products with D97 in the range of 5 to 30 micrometres and capacities from 1.6 t/h to 15 t/h. This makes the LUM mill suitable for 1250 to 2500 mesh heavy calcium carbonate used in masterbatch, breathable films, engineering plastics, and other demanding polymer applications. When combined with surface modification equipment, the LUM Ultrafine Vertical Mill can help manufacturers in Oman produce premium GCC filler with controlled particle size, low moisture, and good dispersion.

Plant Design and Quality Control Considerations in Oman

A complete heavy calcium carbonate grinding plant usually includes raw material crushing, storage, feeding, grinding, classification, dust collection, surface modification if required, and packaging. The raw material should be characterized for size, moisture, whiteness, hardness, and impurity content before equipment selection. If the limestone or marble contains high moisture, a drying step or an integrated drying function in the mill should be considered. Dust collection is essential for environmental compliance and worker safety, while magnetic separation and proper wear-part selection help control iron contamination.

Quality control should include regular testing of particle size distribution, whiteness, moisture, oil absorption, and dispersion. A laser particle size analyzer, whiteness meter, and moisture analyzer are useful for routine production control. Because Oman has a hot climate and occasional dusty conditions, the plant layout should provide adequate ventilation, cooling, and maintenance access. Spare parts planning and local service support are also important for minimizing downtime. For export-oriented producers, consistent product quality and reliable packaging are key to serving polymer customers in Oman, the UAE, Saudi Arabia, and other GCC markets.

Why Choose Shanghai Zenith Machinery

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. The company specializes in the research, development, and production of industrial powder grinding equipment and related devices. Its main products include MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. For heavy calcium carbonate polymer filler production in Oman, Shanghai Zenith can provide process consultation, equipment selection, plant design, installation guidance, commissioning support, and operator training. The recommended combination of MTW Trapezium Grinding Mill and LUM Ultrafine Vertical Mill allows producers to cover both high-capacity fine filler and premium ultrafine filler, creating a flexible product portfolio for different polymer customers.

Conclusion

Heavy calcium carbonate is a valuable functional filler for Oman’s growing polymer industry, but its performance depends on consistent fineness, low moisture, controlled contamination, and good dispersion. Selecting the right grinding mill is the foundation of a successful GCC filler business. The MTW Trapezium Grinding Mill is recommended for efficient 325 to 400 mesh production with high capacity, while the LUM Ultrafine Vertical Mill is ideal for D97 5 to 30 micrometres premium filler. With Shanghai Zenith Machinery’s experience in industrial powder grinding and its comprehensive product range, Oman-based manufacturers can build a reliable, energy-efficient, and scalable heavy calcium carbonate grinding plant for polymer filler applications.
