Dolomite mill for fine powder production in Thailand

Dolomite Mill for Fine Powder Production in Thailand

Thailand has become one of Asia’s most attractive markets for mineral powder processing, and dolomite plays a central role in this landscape. Found in commercial quantities in central and northern regions, Thai dolomite is a highly valued raw material for the ceramic, glass, paint, rubber, plastic, and agricultural industries. In order to turn run-of-mine dolomite into premium fine powder, producers need reliable, efficient, and cost-effective grinding equipment. This is where Shanghai Zenith Machinery Co., Ltd. demonstrates its strength. As an excellent manufacturer of ore grinding equipment in China, Zenith has made great achievements in the field of ultra-fine powder grinding, providing complete solutions for dolomite fine powder production in Thailand and throughout Southeast Asia.

Dolomite and Its Industrial Applications

Dolomite is a naturally occurring carbonate mineral composed of calcium magnesium carbonate, CaMg(CO3)2. It is widely used after being milled into powder. In the glass industry, dolomite powder supplies magnesium oxide and calcium oxide, improving the chemical resistance and stability of glass. In ceramics, dolomite acts as a flux, lowering firing temperature and enhancing mechanical strength. In paints, coatings, rubbers, and plastics, fine dolomite powder is used as filler to improve opacity, brightness, weather resistance, and dimensional stability. Agricultural dolomite powder neutralizes soil acidity and supplies essential magnesium and calcium nutrients. In construction, dolomite powder is used in asphalt mixtures, cement, and building materials.

The required fineness of dolomite powder varies by application. Coarse powders below 0.1 mm are often sufficient for construction fillers, while glass and ceramics commonly need powder in the range of 0.1 to 0.045 mm. High-end paint, paper, rubber, and plastic products require ultrafine powder with particle sizes of 10 to 30 microns or even finer. Therefore, choosing a mill that can produce consistent, controllable particle size distribution is critical to commercial success.

Why Mill Selection Is Critical in Dolomite Processing

The selection of the right dolomite mill depends on multiple factors: feed size, hardness, moisture content, required fineness, capacity, energy cost, and maintenance requirements. Dolomite has a Mohs hardness of about 3.5 to 4 and a specific gravity of roughly 2.8 to 2.9. It is not extremely hard, but it is abrasive enough to cause wear in poorly designed equipment. In Thailand, ambient humidity is high, and raw dolomite can contain surface moisture, so the mill system may need drying capability. Furthermore, power costs continue to influence the profitability of mineral processing plants; high-efficiency mills with low unit energy consumption are strongly preferred.

Shanghai Zenith Machinery Co., Ltd. has developed a complete line of industrial milling equipment that responds to these needs. The company specializes in the research, development, and production of industrial powder grinding equipment and related devices. Its main products include MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. All these machines are engineered for durability, precise classification, and energy-efficient operation. For Thai dolomite producers, Zenith specifically recommends two families of mills: the MTW Trapezium Grinding Mill and the LUM Ultrafine Vertical Mill.

MTW Trapezium Grinding Mill for Dependable Fine Powder Production

The MTW Trapezium Grinding Mill is a patented machine with compact structure, long service life, and environmentally friendly features. It is an excellent choice for producing dolomite powder with a fineness range of 1.6 mm to 0.038 mm. The mill can accept feed materials up to 50 mm, which simplifies the crushing stage and reduces total investment. It utilizes an internal high-efficiency classifier, a curved air duct, and a muffler to lower noise and dust pollution. For Thailand’s medium-capacity plants, the MTW138Z model offers a capacity of 6 to 17 t/h and a feed size smaller than 35 mm. For larger producers, the MTW175G offers 9.5 to 25 t/h with a main motor power of 160 kW. These capacities make the MTW series ideal for supplying fine dolomite to glass factories, ceramic plants, animal feed producers, and construction material plants.

The MTW mill’s advantages go beyond capacity. Its grinding roller and ring are made of high-quality wear-resistant alloy, ensuring longer service intervals. The transmission system adopts bevel gear lubrication, reducing maintenance and improving operational stability. With a PLC control system, operators can easily monitor and adjust the fineness, temperature, and load. The whole system runs in an enclosed environment, which is important for Thai plants located near residential areas or environmentally sensitive zones.

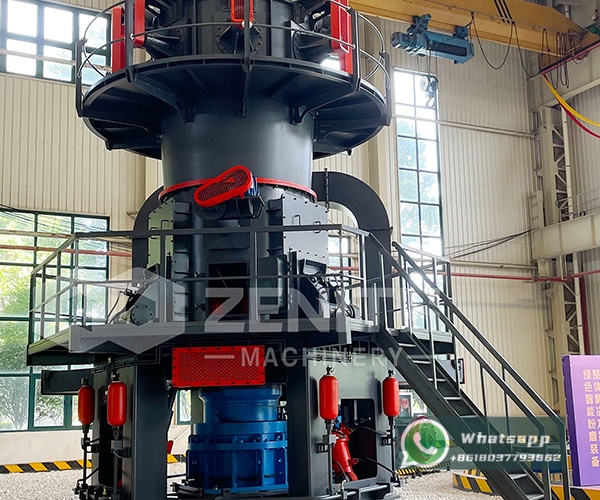

LUM Ultrafine Vertical Mill for High-Value Ultrafine Dolomite Powder

When the target is ultrafine dolomite powder for premium applications, the LUM Ultrafine Vertical Mill is the ideal solution. This mill combines grinding, classification, drying, and conveying in one compact unit. It uses a vertical grinding table and rollers to grind material under pressure, while a high-speed dynamic classifier controls the final particle size. The LUM series produces powder with D97 fineness between 5 and 30 microns, roughly equivalent to 600 to 2500 mesh. This level of fineness is required for high-end paints, inks, rubber fillers, paper coatings, and advanced ceramics.

The LUM mill is known for high content of end-fines, narrow particle distribution, and intelligent automation. It occupies a very small area compared with a ball mill of equal capacity, saving valuable floor space in existing Thai plants. The grinding rollers can be flipped and reused, reducing operating cost. The classifier speed, grinding pressure, and air temperature are automatically controlled, ensuring stable product quality even when raw dolomite properties vary. For a typical Thai project, the LUM1836 model with a main power of 355 to 400 kW can produce 2.3 to 15 t/h of ultrafine dolomite powder. Smaller operations can select the LUM1525 or LUM1632.

How to Choose the Right Dolomite Mill in Thailand

Thai investors and plant managers should first define the final product. If the market focus is ordinary fine powder for construction, agriculture, glass, or ceramics, the MTW Trapezium Grinding Mill offers the best balance of capital cost, capacity, and operating cost. If the objective is to produce high-margin ultrafine powder for paints, plastics, rubber, or paper, the LUM Ultrafine Vertical Mill is the preferred choice. The raw material feed size should also be considered. MTW can accept up to 50 mm, while LUM may require the feed to be smaller before entering the mill; therefore, proper primary crushing is essential. Moisture content should be kept below 6 percent for most dry grinding mills. Both MTW and LUM can be configured with hot air generators for drying, but at an additional energy cost.

Zenith’s engineers can help Thai customers conduct material tests and design the optimal process flow. As a manufacturer with international installation experience, Zenith provides complete equipment supply, site planning, installation supervision, commissioning, operator training, and spare parts support. Customers in Thailand can rely on Zenith’s long-term commitment to the mineral processing industry.

Conclusion

Dolomite fine powder is set to remain an important industrial raw material in Thailand for years to come. To achieve excellent productivity and product quality, selecting a professional and robust grinding mill is essential. Shanghai Zenith Machinery Co., Ltd. offers proven solutions with the MTW Trapezium Grinding Mill for fine powder and the LUM Ultrafine Vertical Mill for ultra-fine powder. These mills combine advanced technology, high efficiency, precise classification, and low operating costs. For Thai dolomite processors seeking a reliable partner, Zenith’s equipment and technical expertise form the foundation of a profitable fine powder production line.
