Limestone powder mill for Kenya 10tph building use

Introduction

Kenya’s construction industry is booming, driven by urbanization, infrastructure development, and a growing middle class. Limestone powder is a critical raw material in building applications, used as a cement additive, concrete filler, and in the production of lime-based products. For a processing plant aiming to produce 10 tons per hour (10tph) of limestone powder tailored for building use, selecting the right grinding equipment is paramount. The choice must balance capacity, fineness requirements, energy efficiency, and operational reliability.

Understanding the Application: Limestone Powder for Building Use

In building materials, limestone powder is typically ground to a fineness of 200 mesh (75 microns) to 325 mesh (45 microns). Coarser powders (e.g., 200 mesh) are common in cement blending, while finer grades (325 mesh) improve workability in concrete and mortar. A 10tph throughput is substantial – it corresponds to a medium-scale operation suitable for supplying regional concrete batching plants or cement factories. The raw limestone feed size is often below 40 mm, and the moisture content should be low (under 6%) for dry grinding.

Key Selection Criteria for the Mill

When specifying a limestone powder mill for a 10tph building-use plant, several factors must be considered:

• Capacity: The mill must reliably produce 10 tons per hour of finished product. A safety margin of 10-20% is advisable to handle fluctuations.
• Product Fineness: Adjustable discharge size from 1.6 mm down to 0.038 mm (400 mesh). For building use, 0.075-0.045 mm (200-325 mesh) is typical.
• Energy Consumption: Grinding is energy-intensive. A high-efficiency mill reduces operating costs.
• Maintenance & Durability: In remote Kenyan sites, ease of maintenance and long wear life are critical.
• Environmental Compliance: Low noise, dust control, and eco-friendly operation are increasingly important.

Shanghai Zenith Machinery: A Trusted Partner

Shanghai Zenith Machinery Co., Ltd. is a leading Chinese manufacturer of ore grinding equipment, with decades of experience in ultra-fine powder processing. Our product line includes the MTW Trapezium Grinding Mill, MTM Medium-Speed Grinding Mill, LM Vertical Grinding Mill, and many others. Each machine is engineered for high efficiency, reliability, and adaptability to local conditions.

Recommended Grinding Mills for 10tph Limestone Processing

Based on the required capacity and application, we recommend two excellent options from Zenith’s portfolio:

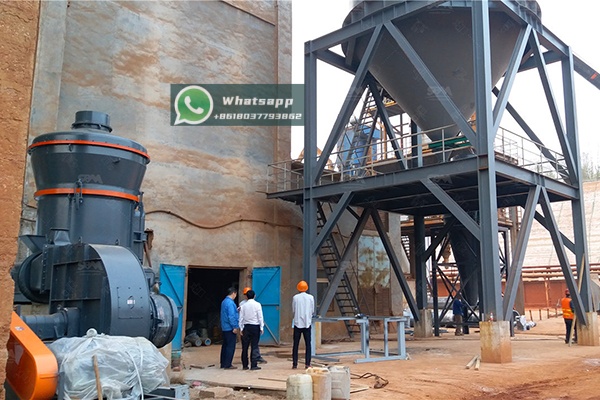

Option 1: MTW138Z Trapezium Grinding Mill

The MTW138Z is part of the MTW series – a machine with multiple patents for compact structure, long service life, and eco-friendly design. Its technical parameters:

• Max feed size: 35 mm
• Final product fineness: 1.6 – 0.045 mm (10 – 325 mesh)
• Capacity: 6 – 17 t/h
• Main motor: 90 kW; Fan motor: 110 kW

At a mid-range setting, the MTW138Z comfortably achieves 10 t/h with a fineness around 200 mesh. Its trapezoidal grinding ring and roller design improve grinding efficiency by 30% compared to traditional Raymond mills. The built-in classifier allows precise control of particle size. For Kenyan building uses, this mill delivers consistent quality with low operating costs.

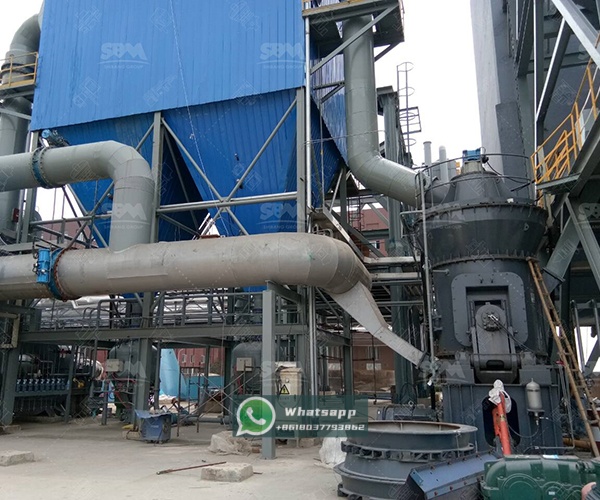

Option 2: LM130K Vertical Grinding Mill

The LM130K vertical mill integrates crushing, grinding, drying, classifying, and conveying in one unit. Its parameters:

• Plate diameter: 1300 mm
• Capacity: 10 – 28 t/h
• Output fineness: 170 – 40 µm (80 – 400 mesh)
• Max feed size: 38 mm
• Main motor: 200 kW

With a capacity range starting at 10 t/h, the LM130K is perfectly suited for a 10tph line. Its vertical layout saves floor space – a major advantage in confined plant areas. The grinding rollers and table are designed for easy maintenance, with quick replacement of wear parts. The integrated classifier produces a narrow particle size distribution, ideal for building-grade limestone powder. Additionally, the LM series excels in drying high-moisture materials (up to 15%), making it robust for Kenyan raw limestone.

Why Choose Zenith’s MTW or LM Series for Kenya?

Both mills offer distinct advantages for the Kenyan market:

• Proven Reliability: Thousands of installations worldwide, including in Africa, ensure dependable operation under local conditions.
• Energy Savings: The MTW series uses a bevel gear drive and optimized air flow, reducing power consumption by 20-30% compared to ball mills. The LM vertical mill reduces energy use by 30-50% over traditional grinding systems.
• Ease of Operation: PLC control systems allow remote monitoring and automatic adjustment of fineness and output.
• After-Sales Support: Zenith provides comprehensive spare parts inventory and technical training for local operators.
• Environmental Performance: Both mills are equipped with bag-type dust collectors and soundproofing enclosures, meeting stringent emission standards.

Conclusion

For a 10tph limestone powder plant serving Kenya’s building industry, the MTW138Z Trapezium Grinding Mill and the LM130K Vertical Grinding Mill are outstanding choices. They deliver the required capacity, precise fineness control, low energy consumption, and long service life. By partnering with Shanghai Zenith Machinery, you invest in high-quality equipment backed by decades of expertise. Contact our team to discuss site-specific requirements – we can customize the solution to your raw material characteristics and desired product specifications.

With the right mill, your Kenyan limestone processing operation will be efficient, profitable, and ready to support the nation’s construction growth.
