Perlite grinding mill for UAE concrete additives

Introduction

The United Arab Emirates is one of the most dynamic construction markets in the world. From Dubai’s high-rise towers and mega shopping malls to Abu Dhabi’s transport hubs and residential communities, the demand for high-performance concrete is growing rapidly. To meet strict building codes and energy-efficiency requirements, concrete producers are increasingly using mineral additives such as perlite. Perlite is a volcanic glass that expands when heated, forming a lightweight and porous material. In concrete applications, perlite powder improves thermal insulation, reduces structural dead load, enhances fire resistance, and contributes to a smoother surface finish. However, to unlock these benefits, perlite must be ground to the correct fineness and particle size distribution. A reliable perlite grinding mill is therefore essential for UAE concrete additive manufacturers.

The Role of Perlite in Concrete Additives

Perlite is not a simple filler. Its cellular structure and low density make it valuable in lightweight concrete and insulation screeds. When processed into fine powder, perlite can act as a supplementary cementitious material or as an additive that improves the rheology of fresh concrete. The fineness of ground perlite directly influences the strength and durability of the final concrete. Medium-fineness perlite can improve the bond between cement paste and aggregates, while ultra-fine perlite fills micropores and reduces permeability. In the UAE’s hot and corrosive environment, a well-controlled particle size also helps reduce the heat of hydration and the risk of thermal cracking. Consequently, advanced grinding technology is not an optional extra; it is a critical component of the additive production process.

Grinding Challenges for Perlite

Raw perlite has a hardness of about 5.5 to 6 on the Mohs scale and is slightly abrasive. After expansion, perlite is highly porous but brittle. Both raw and expanded forms require a grinding mill that can handle a low-density, high-volume feed without compromising efficiency. Moisture content, feed particle size, and target fineness also vary. For concrete additives, a typical fineness requirement is between 0.045 mm and 0.038 mm for medium grades, while high-performance additives may require particles finer than 30 microns. Therefore, the grinding system must offer adjustable speed, precise classification, and stable operation under continuous production. Standard crushers or hammer mills can be used for pre-crushing, but the final powder must come from a dedicated grinding mill engineered for mineral processing.

Zenith Grinding Mills for Perlite Processing

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China, and has made great achievements in the field of ultra-fine powder grinding. We specialize in the research, development, and production of industrial powder grinding equipment and other related devices. Our main products include the MTW Trapezium Grinding Mill, MTM Medium-Speed Grinding Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, Raymond Mill, XZM Ultrafine Grinding Mill, Hammer Mill, and Ball Mill. For perlite used in UAE concrete additives, two of our machines are particularly suitable: the MTW Trapezium Grinding Mill and the LUM Ultrafine Vertical Mill.

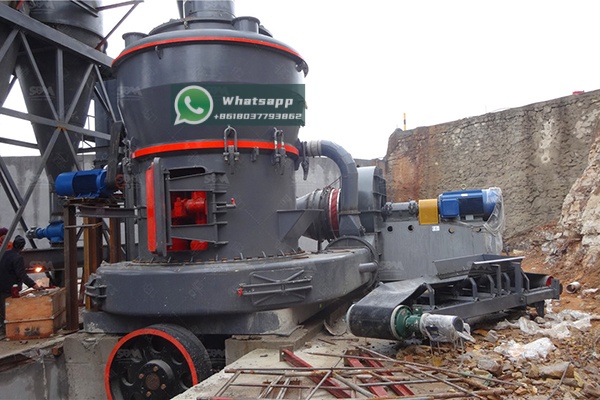

MTW Trapezium Grinding Mill

The MTW Trapezium Grinding Mill is a multi-patent machine with a compact structure, long service life, and an eco-friendly design. It is suitable for processing materials with a maximum input size of up to 50 mm, and its product fineness can be adjusted from about 1.6 mm down to 0.045 mm, with select models capable of reaching 0.038 mm. This capability is exactly within the range needed for concrete-grade perlite additives. The mill uses trapezium-style grinding rollers and rings, which provide a larger grinding surface and higher efficiency. An internal classifier ensures uniform particle size, while the main motor and fan motor are sized for low energy consumption. The following table shows representative MTW models for UAE perlite additive plants.

For a medium-sized concrete additive plant, the MTW138Z is a proven choice. It can accept feed below 35 mm and deliver 6 to 17 t/h of final powder between 1.6 and 0.045 mm. If a larger production capacity is required, the MTW175G can produce up to 25 t/h. These units are compact enough to be installed in existing buildings and can be equipped with a dust collector to meet stringent environmental regulations.

LUM Ultrafine Vertical Mill

For producers who need ultra-fine perlite for high-performance concrete additives, the LUM Ultrafine Vertical Mill is the best solution. This machine integrates grinding, drying, classifying, and transportation in a single unit, occupying minimal floor area. It is designed to produce products with a high content of end-fines and features intelligent control for easier maintenance. The LUM series can achieve a size distribution D97 of 5 to 30 microns, which is significantly finer than traditional grinding mills. Because it uses a vertical roller and a dynamic classifier in a closed circuit, it prevents over-grinding and keeps the product temperature low. This is particularly important in the UAE’s warm climate, where cementitious materials can lose quality due to excess heat.

For an additive producer targeting high-strength concrete, the LUM1632 offers a capacity of 2.0 to 13.5 t/h with a D97 of 5 to 30 microns. Its main machine power is 280 to 315 kW, and its automatic control system reduces the need for skilled operators. The LUM mill is also capable of processing perlite with moisture content below 6%, which is usually the case after expansion and drying.

Advantages for UAE Concrete Additive Producers

Selecting the right grinding mill is not only about the machine itself. UAE producers also consider installation space, power consumption, maintenance frequency, and the availability of spare parts. Zenith’s mills are designed for easy installation and low operating costs. With a small occupational area and no complicated foundation, the LUM vertical mill is especially suitable for compact plants. The MTW mill uses bevel gear transmission and an integrated lubrication system, which reduces mechanical failure. Moreover, Zenith’s engineers can help design a complete perlite processing line, from feeding and pre-crushing to classification and collection. We also provide technical training, spare parts support, and after-sales service through regional partners, ensuring that your perlite grinding mill keeps working at peak performance.

Conclusion

Perlite is becoming an indispensable component of modern concrete additives, and the UAE’s ambitious construction projects require grinding equipment that performs reliably under challenging conditions. Shanghai Zenith Machinery Co., Ltd. offers proven grinding solutions for perlite, including the MTW Trapezium Grinding Mill for conventional additive grades and the LUM Ultrafine Vertical Mill for ultra-fine and high-value products. By choosing Zenith, UAE producers gain access to advanced technology, high efficiency, and the support of a leading Chinese grinding equipment manufacturer. Contact Zenith today to select the right perlite grinding mill for your concrete additive production line and to receive a tailored quotation based on your capacity and fineness requirements.
