Introduction to Quartz Powder Milling in Vietnam
Vietnam is one of the most promising markets for industrial minerals in Southeast Asia. The country has large reserves of high-purity quartz sand along its central coast and southern regions. These quartz sands are not only used as construction aggregates but are also processed into quartz powder for glassmaking, ceramics, paints, coatings, adhesives, electronic fillers, and foundry applications. As the demand for high-quality quartz powder grows, the need for reliable, efficient, and energy-saving grinding equipment becomes critical. Shanghai Zenith Machinery Co., Ltd. has developed a complete range of quartz powder mills to help Vietnamese processors turn raw quartz sands into valuable fine powders.
Understanding Quartz Sands and Grinding Requirements
Quartz has a hardness of 7 on the Mohs scale, which makes it one of the harder industrial minerals. Its high silica content and chemical stability are valuable, but its abrasiveness demands robust grinding equipment with wear-resistant components. Raw quartz sand from riverbeds or quarries often contains lumps, impurities, and moisture. Before grinding, the material must be dried or screened if necessary. The target fineness depends on the end use. For example, glass-grade quartz powder often requires 40 to 120 mesh, while ceramic and paint fillers require 200 to 400 mesh. High-end applications such as electronic encapsulation or specialty coatings may require ultra-fine powder with D97 between 5 and 30 microns. Therefore, a versatile milling solution is essential.
Core Equipment for Quartz Powder Production
Shanghai Zenith offers several types of grinding mills that can be configured for quartz sand processing. Each mill has unique advantages in terms of output fineness, capacity, energy consumption, and maintenance. Among them, the MTW Trapezium Grinding Mill and the LUM Ultrafine Vertical Mill are particularly well suited for Vietnamese quartz sands.

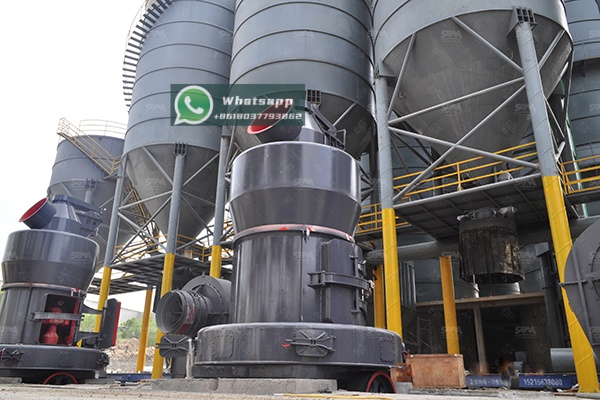

MTW Trapezium Grinding Mill for Medium-Fine Quartz Powder
The MTW Trapezium Grinding Mill is a flagship product of Zenith. It has several patented technologies and is designed for high-efficiency grinding with a compact footprint and long service life. The grinding roller and ring are made of high-quality alloy steel, making the mill highly resistant to the abrasiveness of quartz. The MTW mill accepts feed sizes up to 50 mm and produces powder with fineness ranging from 1.6 mm to 0.038 mm. This range covers the vast majority of commercial quartz powder requirements, including glass sand, ceramic powder, and paint filler.
| Model | Max Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) |
|---|---|---|---|---|
| MTW110Z | <30 | 1.6-0.045 | 3-10 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 |
For quartz sand processors in Vietnam with a capacity requirement of 10 to 25 tons per hour, the MTW175G is an excellent choice. It combines high output with low specific energy consumption. The internal air classification system ensures uniform particle size and reduces the need for additional screening equipment. This mill is also equipped with a pulse bag filter to meet strict environmental standards.

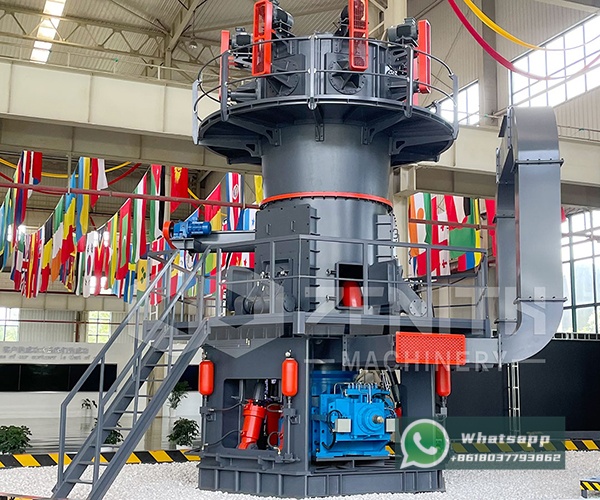

LUM Ultrafine Vertical Mill for High-Value Ultrafine Quartz Powder
When the market demands ultra-fine quartz powder with D97 between 5 and 30 microns, the LUM Ultrafine Vertical Mill is the ideal solution. The LUM series integrates grinding, classifying, drying, and conveying in one unit, which greatly simplifies the process flow and reduces floor space. It is especially suitable for high-end fillers used in plastics, rubber, paints, and electronic materials. The LUM mill uses a multi-head classifier to precisely control the particle size distribution, ensuring stable product quality. With a main motor power ranging from 220 kW to 400 kW, the LUM1632 and LUM1836 models can produce 2 to 15 tons per hour of ultra-fine quartz powder.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
For Vietnamese companies seeking to produce ultra-fine quartz powder for export or high-end domestic industries, the LUM1632 offers a balanced combination of capacity and fineness. The vertical structure also makes maintenance more convenient because the grinding table and rollers are easy to access.
Other Zenith Grinding Solutions
In addition to the MTW and LUM mills, Zenith also provides the XZM Ultrafine Grinding Mill for superfine powder down to 2500 mesh, the LM Vertical Grinding Mill for large-capacity mineral grinding, the Raymond Mill for conventional fine powder, and the Ball Mill for both dry and wet processes. For coarse quartz sand or preliminary crushing, the Hammer Mill can control product size within 0-3 mm. This comprehensive product portfolio ensures that every customer can find a suitable quartz powder mill based on their specific raw material, target fineness, and production scale.
Key Factors to Consider When Choosing a Quartz Powder Mill
Selecting the right powder mill for quartz sands in Vietnam requires a careful evaluation of several factors. First, feed size and moisture content determine whether pre-crushing or drying is needed. Second, target fineness and particle size distribution dictate the mill type and classifier configuration. Third, capacity requirements and available power affect equipment selection. Fourth, the abrasiveness of quartz demands mills with hardened grinding parts and reliable lubrication. Finally, environmental regulations in Vietnam are becoming stricter, so dust collection and noise control must be part of the design. Zenith mills are engineered to address all these factors.
Why Choose Shanghai Zenith Machinery Co., Ltd.
Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. The company specializes in the research, development, and production of industrial powder grinding equipment and related devices. With years of experience and a strong engineering team, Zenith has delivered thousands of grinding plants around the world, including many in Southeast Asia. For Vietnam quartz sand projects, Zenith can provide complete solutions from design and installation to commissioning and after-sales support. The company’s after-sales service network in Vietnam ensures quick response for spare parts and technical assistance.
Recommended Products for Vietnam Quartz Sands
Based on the typical requirements of Vietnam quartz sand processors, we recommend the following two products:
- MTW Trapezium Grinding Mill – for producing quartz powder from 40 mesh to 400 mesh with a capacity of 3-45 t/h. The MTW175G model is particularly suitable for medium-to-large grinding plants.
- LUM Ultrafine Vertical Mill – for producing ultra-fine quartz powder with D97 5-30 microns and a capacity up to 15 t/h. The LUM1632 model offers excellent energy efficiency and precise particle size control.
Conclusion
Vietnam quartz sands present a significant opportunity for enterprising mineral processors. With the right quartz powder mill, raw sand can be transformed into high-value products for many industries. Shanghai Zenith’s MTW and LUM mills offer advanced technology, robust construction, and high efficiency, making them ideal for Vietnamese conditions. By investing in quality grinding equipment, producers can achieve premium output, lower operating costs, and a stronger competitive position in both domestic and international markets. For more information about quartz powder milling solutions, contact Shanghai Zenith Machinery Co., Ltd. today.
