Dolomite milling line for UAE mineral plants

Introduction

The United Arab Emirates (UAE) has witnessed remarkable growth in its industrial and construction sectors over the past decade. With a strategic focus on economic diversification, the country has invested heavily in mineral processing and building material manufacturing. Dolomite, a sedimentary carbonate rock composed of calcium magnesium carbonate (CaMg(CO₃)₂), is widely used in the production of cement, glass, ceramics, steelmaking fluxes, and as a filler in plastics and paints. For UAE mineral plants, establishing a high-efficiency dolomite milling line is essential to meet both domestic demand and export opportunities. This article explores the key components of a modern dolomite milling line and presents advanced grinding solutions tailored for UAE operations.

Properties and Applications of Dolomite

Dolomite typically has a Mohs hardness of 3.5–4, a specific gravity of 2.8–2.9 g/cm³, and a crystalline structure that makes it suitable for grinding into fine powders. In the UAE, dolomite is primarily used for:

• Construction aggregates – as a base material for roads and concrete.
• Glass manufacturing – as a source of MgO to improve glass durability and reduce thermal expansion.
• Ceramic tiles and sanitaryware – as a fluxing agent to lower firing temperatures.
• Agricultural soil conditioner – to neutralize acidic soils and provide magnesium nutrients.
• Steel industry – as a refractory lining and slag former.

To serve these diverse applications, dolomite must be ground to different fineness specifications. Coarse powders (200–300 mesh) are used for construction fillers, while ultra-fine powders (800–2500 mesh) are required for high-value applications like plastic masterbatch and PVC pipe fillers.

Challenges in Dolomite Milling for UAE Climate and Logistics

The UAE’s hot and arid climate presents unique challenges for mineral processing. High ambient temperatures can affect the stability of grinding equipment, while the presence of moisture in raw dolomite (often due to occasional precipitation or quarry washing) may cause clogging in traditional mills. Additionally, many mineral plants in the UAE operate in remote desert locations where electricity supply and maintenance access are limited. Therefore, a reliable, energy-efficient, and robust milling solution is critical. Shanghai Zenith Machinery Co., Ltd., with decades of experience in ore grinding, provides equipment specifically designed to withstand harsh conditions while delivering consistent product quality.

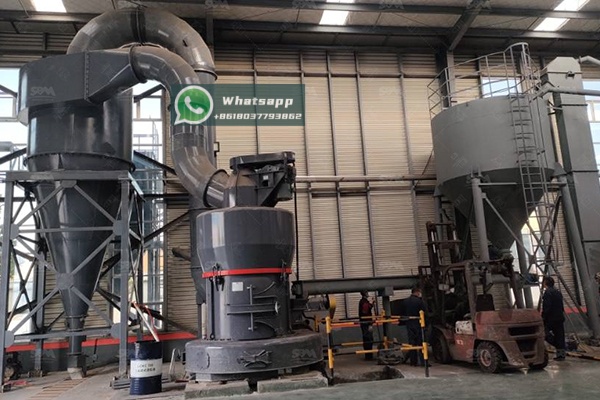

Key Stages of a Dolomite Milling Line

A complete dolomite milling line typically includes three main stages: crushing, grinding, and classification.

1. Crushing

Raw dolomite from the quarry (with a maximum size of up to 500 mm) is first reduced to <30 mm using a jaw crusher or hammer crusher. For UAE mineral plants, we recommend the Hammer Mill series for primary or secondary crushing. The HM4015-132 model, for example, can process <50 mm feed to produce 0–8 mm discharge at a capacity of 40–70 t/h, making it ideal for pre-milling preparation.

2. Grinding

The core of the milling line is the grinding mill, which determines the final particle size and throughput. Dolomite can be ground using various technologies:

• Raymond Mill – suitable for 1.6–0.045 mm powders with capacities up to 11 t/h.
• MTW Trapezium Grinding Mill – offers higher efficiency and lower energy consumption for medium-fine grinding (0.045–1.6 mm).
• LUM Ultrafine Vertical Mill – designed for superfine powders (5–30 μm, 325–2500 mesh) with integrated classifying and drying functions.
• LM Vertical Grinding Mill – a multi-functional machine that combines crushing, grinding, drying, and conveying.

3. Classification and Collection

After grinding, the powder is separated by air classifiers or sieves. Oversized particles are returned to the mill, while fine powders are collected by bag filters or cyclones. The final product can be stored in silos or directly packed. Modern mills like the MTW and LUM series feature built-in classifiers that ensure precise cut points and narrow particle size distributions.

Recommended Grinding Solutions from Shanghai Zenith

Based on the specific needs of UAE mineral plants – such as high ambient temperatures, limited water resources, and the requirement for multiple product grades – we strongly recommend the following two flagship products from Shanghai Zenith Machinery Co., Ltd.

1. MTW Trapezium Grinding Mill

The MTW Trapezium Grinding Mill is an ideal choice for producing dolomite powders in the range of 0.038–1.6 mm (10–400 mesh). Its patented trapezium pressure plates and curved shovel blades increase grinding efficiency by 20–30% compared to traditional Raymond mills. It features a compact, enclosed structure that prevents dust leakage – crucial for UAE environmental regulations. For a medium-scale plant processing 10–20 t/h of dolomite, the MTW138Z model (max feed <35 mm, final size 1.6–0.045 mm, capacity 6–17 t/h, main motor 90 kW) delivers reliable performance with minimal maintenance.

Key advantages for UAE:

• Resistant to high-temperature operation (ambient up to 50°C) with forced lubrication.
• Low power consumption: up to 30% energy savings vs. ball mills.
• Quick product fineness adjustment via the built-in classifier.

2. LUM Ultrafine Vertical Mill

For UAE plants targeting ultra-fine dolomite powders (800–2500 mesh) for high-value markets such as plastic masterbatch, rubber fillers, or high-gloss paints, the LUM Ultrafine Vertical Mill is the perfect solution. This mill integrates grinding, classifying, and drying in one vertical system, reducing the footprint by 50% compared to traditional ball mill + classifier setups. The LUM1632 model (main motor 280–315 kW, capacity 2.0–13.5 t/h, output fineness D97 = 5–30 μm) can produce high-brightness dolomite powder with a uniform particle shape.

Key advantages for UAE:

• Closed-circuit design eliminates dust emission – meeting UAE’s strict green building standards.
• Intelligent control system allows remote monitoring and automatic load adjustment.
• Low wear cost: grinding rollers and table are made of high-chromium alloy with a service life >8000 hours.

Case Study: Successful Installation in a UAE Mineral Plant

In 2023, Shanghai Zenith supplied a complete dolomite milling line to a mineral processing plant in Ras Al Khaimah, UAE. The line included a Hammer Mill HM4015-132 for primary crushing, a MTW138Z Trapezium Mill for main grinding (output 8–15 t/h at 200 mesh), and a LUM1632 Ultrafine Vertical Mill for premium-grade powder (4–6 t/h at 800 mesh). The plant reported a 25% reduction in energy costs and a 40% increase in production capacity compared to their previous ball mill system. The enclosed design also helped the plant achieve zero dust emission compliance.

Conclusion

The UAE’s growing mineral processing industry demands high-performance grinding equipment that can handle the challenges of heat, dust, and energy efficiency. Shanghai Zenith Machinery Co., Ltd. offers a comprehensive range of dolomite milling solutions, from the versatile MTW Trapezium Grinding Mill to the ultra-fine LUM Ultrafine Vertical Mill. With proven track records in over 100 countries and a dedicated service network in the Middle East, Zenith is the ideal partner for establishing a modern, profitable dolomite milling line in the UAE. Contact our team today to discuss your specific requirements and receive a customized proposal.

For more information on MTW and LUM mills, visit our website or request a quotation. Shanghai Zenith Machinery – your reliable partner in mineral grinding since 2005.
