Bentonite grinding mill for Egypt drilling mud plants

Introduction to Bentonite in Drilling Mud

Bentonite is a critical industrial mineral, widely used in drilling mud formulations for oil and gas well drilling, horizontal directional drilling, and geotechnical applications. In drilling fluids, bentonite performs essential functions such as viscosity control, filtration reduction, borehole stabilization, and cuttings transport. Egypt, with its prolific Western Desert and Nile Delta hydrocarbon fields, has an active drilling market. Consequently, local drilling mud plants require efficient, high-capacity bentonite grinding solutions to produce high-quality powdered bentonite that meets API (American Petroleum Institute) and OCMA (Oil Company Materials Association) standards.

Choosing the right grinding equipment is vital for optimizing the quality of bentonite powder, minimizing operational costs, and ensuring consistent production. Shanghai Zenith Machinery Co., Ltd., a leading Chinese manufacturer of ore grinding equipment, has extensive experience in supplying advanced grinding mills for bentonite processing. With a strong focus on ultra-fine powder grinding, Zenith offers robust and energy-efficient machines tailored for the demanding requirements of drilling mud plants.

Grinding Technology for Bentonite

Bentonite is a soft, clay-like mineral that requires careful milling to achieve the required fineness, typically 200 mesh (75 microns) or finer for drilling mud. The grinding process must also handle the material’s inherent moisture content and its tendency to agglomerate. Therefore, a mill with robust classification, drying capability, and stable operation is necessary. Zenith’s grinding mills feature advanced internal classifiers and air flow systems that efficiently separate fine powders from coarse particles, ensuring a uniform particle size distribution.

In addition, bentonite grinding often involves a combination of crushing, grinding, and classifying processes. Zenith offers integrated solutions that reduce the footprint and simplify plant layout. The company’s devices are engineered to deliver high throughput with low energy consumption, a crucial factor for Egypt’s drilling mud plants aiming to reduce production costs.

Recommended Zenith Products for Bentonite Grinding

Based on our product portfolio, two outstanding machines are particularly suitable for bentonite processing in Egypt drilling mud plants: the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill. Both are designed with advanced technology and offer distinct advantages in different scenarios.

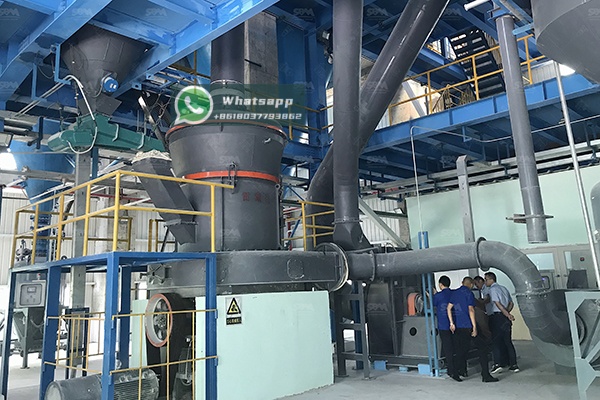

MTW Trapezium Grinding Mill

The MTW Trapezium Grinding Mill is a flagship product from Zenith, featuring multiple patents and a compact structure. It is well-known for its long service life, low maintenance, and eco-friendly operation. The mill is ideal for processing materials with a maximum input size of up to 50 mm, and it can produce a final powder as fine as 0.038 mm (400 mesh). Its internal trapezium-shaped grinding rollers and ring increase the grinding efficiency, while the air classifier ensures precise control over product fineness.

For a typical drilling mud plant, the MTW138Z or MTW175G models are excellent choices. The MTW138Z can process feed sizes below 35 mm and deliver capacities ranging from 6 to 17 tons per hour. The MTW175G, with a capacity of 9.5 to 25 tons per hour, is suitable for larger operations. Both models operate with main motor powers of 90 kW and 160 kW respectively, offering a favorable balance between energy consumption and output. The versatility of the MTW mill makes it ideal for grinding bentonite to API-grade fineness while maintaining consistent quality.

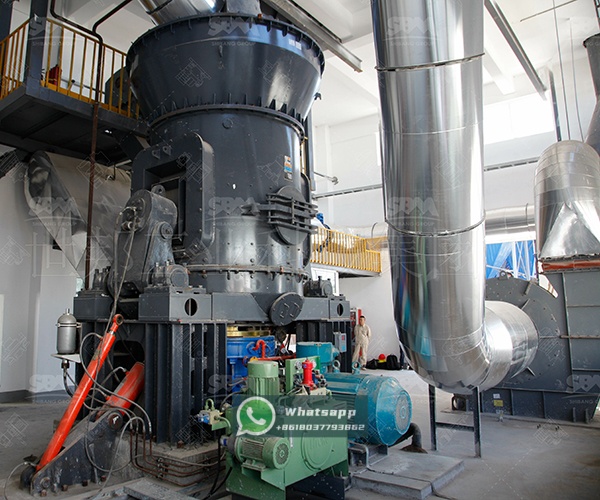

LM Vertical Grinding Mill

The LM Vertical Grinding Mill integrates crushing, drying, grinding, powder selection, and material conveying into one unit. It is an excellent solution for bentonite plants that require high efficiency and a small footprint. The LM mill adopts a vertical layout with a rotating grinding table and stationary rollers, which ensures lower energy consumption compared to traditional ball mills. Moreover, the hot air direct contact drying system can handle feed materials with up to 15-20% moisture, which is beneficial for bentonite that may not be pre-dried extensively.

For the specific needs of an Egypt drilling mud plant, the LM130K or LM190K vertical mineral mill models are highly recommended. The LM130K has a plate diameter of 1300 mm, producing 10 to 28 tons per hour with a fineness range of 170 to 40 microns. The larger LM190K can achieve outputs of 23 to 68 tons per hour, making it suitable for high-capacity production environments. The LM mill features a simple operation and automatic control system, reducing the need for intensive manual supervision. Additionally, its sealed structure minimizes dust leakage, contributing to a cleaner and safer plant environment.

Why Choose Zenith for Your Bentonite Grinding Project?

Egypt’s drilling mud industry demands reliable technology and consistent product quality. Shanghai Zenith Machinery Co., Ltd. has established a strong reputation in the global mining and mineral grinding sector. Our grinding mills are developed with state-of-the-art technology and manufactured under strict quality control standards. We provide comprehensive support, including plant design, equipment installation, and after-sales service, ensuring that your bentonite grinding plant operates at peak performance.

Besides the MTW and LM mills, Zenith also offers other outstanding equipment such as the MTM Medium-Speed Grinding Mill, LUM Ultrafine Vertical Mill, and XZM Ultrafine Grinding Mill. Each machine is designed to address specific fineness and capacity requirements. If your drilling mud process demands a superfine product, the LUM or XZM mills can achieve a D97 fineness of 5 to 30 microns, enhancing the rheological properties of the mud. Conversely, for coarse powder or sand production, the Hammer Mill and Ball Mill are also available.

Our expertise in powder processing allows us to recommend the most suitable grinding solution based on your raw material characteristics, target production rate, and final particle size specifications. We understand that the drilling fluid industry is highly competitive and cost-sensitive; therefore, our equipment is optimized to reduce power consumption, minimize downtime, and maximize profitability. With hundreds of successful installations worldwide, Zenith has proven its capability to support projects in diverse geological and climatic conditions.

Conclusion

For Egypt drilling mud plants, the selection of an efficient bentonite grinding mill is a strategic decision. Both the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill from Shanghai Zenith Machinery Co., Ltd. offer exceptional performance, reliability, and energy savings. The MTW mill excels in fine grinding with a low occupational footprint, while the LM vertical mill provides integrated drying and grinding for higher throughput. By investing in Zenith’s advanced grinding technology, Egyptian operators can ensure a steady supply of premium bentonite powder, thereby reducing drilling risks and improving operational efficiency.

At Zenith, we are committed to being your long-term partner in industrial powder processing. Contact us today to discuss how our grinding mills can empower your drilling mud plant in Egypt with superior productivity and quality.
