Quartz milling line for Malaysia silica fillers

Introduction: Malaysia’s Silica Filler Opportunity

Malaysia is endowed with abundant silica sand and quartz deposits, making it a strategic location for producing high-quality silica fillers for the fast-growing markets of paints, plastics, rubber, glass, ceramics and construction chemicals. However, converting raw quartz into a valuable functional filler requires a carefully engineered milling line that can deliver consistent fineness, low contamination, high throughput and reliable operation. Shanghai Zenith Machinery Co., Ltd., an excellent manufacturer of ore grinding equipment in China, has made great achievements in the field of ultra-fine powder grinding and offers complete solutions for quartz milling lines that meet the demanding needs of Malaysian producers.

As a specialist in the research, development and production of industrial powder grinding equipment, Zenith has supplied thousands of grinding systems across the world. Our main products include the MTW Trapezium Grinding Mill, MTM Medium-Speed Grinding Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, Raymond Mill, Ball Mill and Hammer Mill. In a quartz milling line for silica fillers, the LUM Ultrafine Vertical Mill and MTW Trapezium Grinding Mill are the two equipment choices that provide outstanding efficiency and product quality.

Understanding Quartz and Silica Fillers

Quartz is a crystalline form of silicon dioxide (SiO2) with a hardness of about 7 on the Mohs scale. When milled to fine powder, it becomes a versatile filler that improves abrasion resistance, thermal stability, chemical durability and electrical insulation. Silica fillers made from quartz are widely used in glass manufacturing, gel coats, semiconductor encapsulation, adhesives, sealants, rubber compounds and engineering plastics.

For most filler applications, the target fineness ranges from 200 mesh for general-purpose products to 2500 mesh for premium applications. Particle size distribution and the content of coarse particles are critical performance indicators. Therefore, a modern quartz milling line must combine robust grinding capability with precise classification and efficient dust collection.

Challenges in Quartz Milling

Quartz is one of the most abrasive industrial minerals. Grinding it places severe stress on mill internals, especially on grinding rollers, rings, vanes and classifier blades. Common challenges in quartz milling include:

• High abrasion causes rapid wear and increased maintenance cost.
• Heat generation can affect product quality and mill stability.
• Narrow particle size distribution is required for consistent filler performance.
• Iron contamination must be minimized for high-purity silica applications.
• Energy consumption is a major factor in total production cost.

Zenith addresses these challenges with heavy-duty grinding equipment, optimized internal air flow, wear-resistant materials and energy-saving classification systems. Our mills are designed to operate continuously with low vibration and high availability when processing hard, abrasive minerals such as quartz.

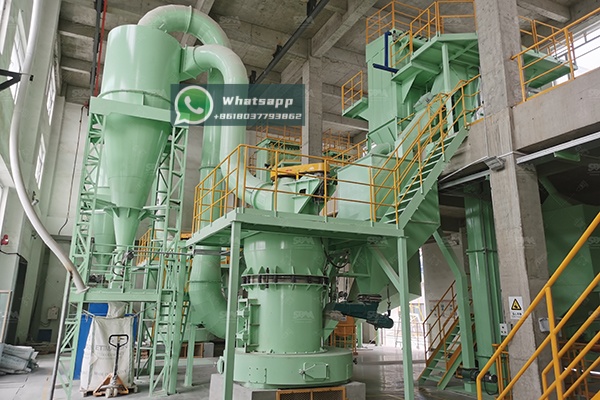

Process Flow of a Quartz Milling Line

A typical quartz milling line for silica fillers includes the following stages:

1. Primary crushing: a jaw crusher reduces run-of-mine quartz to under 50 millimetres.
2. Secondary crushing: a cone crusher or hammer mill further reduces the quartz to under 20 or 30 millimetres.
3. Grinding: the prepared quartz is fed into a vertical grinding mill or trapezium mill through a vibrating feeder and bucket elevator.
4. Classification: an integrated or external classifier ensures the final product fineness remains within specification.
5. Collection: a bag filter collects the finished silica powder and cleans the air before discharge.
6. Product handling: screw conveyors, air slides and silos store and transport the final filler.

This straightforward flow can be adapted to different capacities and product specifications. For producers that need multiple grades of silica fillers from a single line, Zenith can design a system with dual classification paths or a combination of two mills.

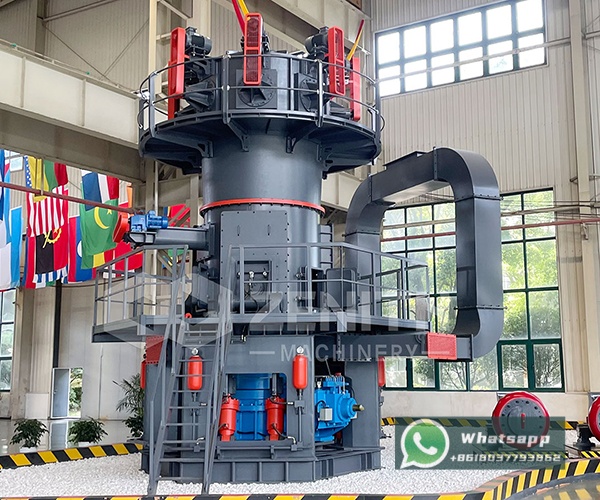

Zenith LUM Ultrafine Vertical Mill: The Core of Ultra-Fine Silica Filler Production

For Malaysian producers targeting high-value ultra-fine silica fillers, the LUM Ultrafine Vertical Mill is an excellent choice. The LUM series integrates grinding, drying, classifying and conveying in one compact system. It occupies less floor space and offers intelligent control, making operation easier and maintenance more cost-effective. The mill is designed to produce powders with a high content of fine end products and a steep particle size curve.

LUM Series Parameters

The LUM mill uses a grinding bed principle that avoids direct metal-to-metal contact, reducing vibration and noise while extending the service life of grinding parts. The classifier speed can be adjusted to control product fineness from about 5 microns to 30 microns D97, which covers the majority of silica filler applications. For quartz, the LUM mill is particularly valuable because it minimizes over-grinding and produces a uniform particle shape.

We recommend the LUM Ultrafine Vertical Mill as the primary equipment for a Malaysia quartz milling line when the final filler fineness needs to be finer than 400 mesh. Its low energy consumption, compact design and stable performance make it a wise long-term investment.

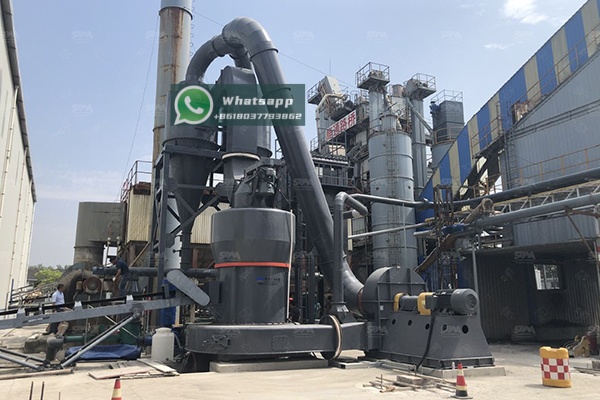

MTW Trapezium Grinding Mill: A Versatile Secondary Option

When the required silica filler is between 200 and 400 mesh, the MTW Trapezium Grinding Mill is a proven and economical solution. The MTW mill is a multi-patented grinding machine known for its compact structure, long service life and eco-friendly design. It can process quartz with a maximum feed size of up to 50 millimetres and produce final powder as fine as 0.038 millimetres.

MTW Series Parameters

The MTW mill uses a trapezium-shaped grinding roller and ring, which enlarge the grinding contact area and improve grinding efficiency. Its internal circulating fan and dust filter ensure a clean working environment. The MTW mill is also flexible: it can be used as the main grinding machine for medium-fineness silica fillers, or as a pre-grinding stage before an ultrafine mill for premium fillers.

For a complete quartz milling line in Malaysia, we recommend combining the LUM Ultrafine Vertical Mill and the MTW Trapezium Grinding Mill. This combination allows producers to offer both standard 200-400 mesh fillers and high-value ultra-fine fillers from the same raw material, maximizing market flexibility and profitability.

Auxiliary Equipment and System Integration

In addition to the grinding mills, Zenith supplies all auxiliary equipment needed for a complete quartz milling line. This includes jaw crushers, bucket elevators, vibrating feeders, air classifiers, bag filters, blowers, screw conveyors, silos and electrical control panels. Every component is selected to match the capacity and fineness requirements of the line.

Zenith also provides engineering services such as plant layout, foundation drawings, piping and ducting design, installation supervision and operator training. Our team can size the entire system to avoid bottlenecks and ensure smooth production from raw material receiving to finished product loading.

Why Choose Shanghai Zenith for Your Malaysia Quartz Milling Line

Shanghai Zenith Machinery Co., Ltd. has decades of experience in the design and manufacture of ore grinding machinery. Our products are continuously improved using the latest powder processing technology. We specialize in ultra-fine powder grinding and have built a strong reputation in Asia, Africa, the Middle East and Latin America.

• Complete product range: from crushing to ultra-fine grinding, Zenith supplies the whole line.
• Proven technology: LUM and MTW mills are widely used for silica, feldspar, limestone and barite.
• Energy-efficient design: lower power consumption and higher capacity reduce operating costs.
• Robust construction: heavy-duty components are made for abrasive materials like quartz.
• After-sales support: spare parts, technical advice and maintenance service are available worldwide.

Conclusion

Investing in a high-quality quartz milling line is the key to producing silica fillers that meet strict market standards. Shanghai Zenith Machinery Co., Ltd. has the equipment, experience and engineering capability to deliver a reliable solution for Malaysian producers. The LUM Ultrafine Vertical Mill and MTW Trapezium Grinding Mill together offer an ideal combination of efficiency, fineness control and operational flexibility. To build a successful silica filler business in Malaysia, partner with Zenith and benefit from advanced grinding technology that maximizes product quality and return on investment.
