Barite powder mill for UAE drilling industry

Introduction: The Role of Barite Powder in UAE Drilling Operations

The United Arab Emirates (UAE) is a global hub for oil and gas exploration, with drilling activities intensifying across onshore and offshore fields. In such operations, barite (BaSO₄) serves as a critical weighting agent in drilling fluids, ensuring wellbore stability, controlling formation pressure, and preventing blowouts. The specification for drilling-grade barite requires a specific gravity of at least 4.20 g/cm³ and a particle size distribution with 97% passing through 200 mesh (74 μm) and 95% through 325 mesh (45 μm) for high-density applications. Achieving this level of fineness and purity demands advanced grinding technology. As a leading Chinese manufacturer of ore grinding equipment, Shanghai Zenith Machinery Co., Ltd. has dedicated decades to research and development in ultra-fine powder grinding, offering a comprehensive range of mills perfectly suited for barite processing in the demanding UAE drilling market.

Why Barite Grinding Matters for the UAE Drilling Industry

Drilling fluids, or muds, are the lifeblood of any drilling operation. Barite increases the density of water-based or oil-based muds to counterbalance high formation pressures. In the UAE, where reservoirs often extend deep beneath the desert and seabed, precise density control is non-negotiable. Poorly ground barite with oversized particles can cause abrasive wear on pumps and downhole tools, while excessively fine particles may lead to viscosity issues. Therefore, the choice of grinding mill directly impacts operational efficiency, cost, and safety. Zenith’s mills are engineered to produce barite powder with consistent fineness, high specific surface area, and minimal contamination—key factors that UAE drilling contractors and mud service companies prioritize.

Key Considerations for Selecting a Barite Powder Mill

When evaluating grinding equipment for barite (Mohs hardness 3–3.5, density 4.2–4.5 g/cm³), the following parameters are critical:

• Feed Size: Crushed barite typically ranges up to 30–50 mm.
• Final Fineness: D97 = 45–75 μm (200–325 mesh) for drilling standards.
• Capacity: UAE drilling operations often require 5–30 tons per hour for centralized grinding plants or 1–10 t/h for mobile units.
• Energy Efficiency: Lower power consumption reduces operating costs in a region with variable electricity tariffs.
• Maintenance & Durability: High availability and easy wear part replacement are essential in remote desert locations.

Recommended Grinding Mills from Shanghai Zenith Machinery

Zenith offers several mill types that excel in barite grinding. After analyzing the specific needs of UAE drilling projects—especially the need for consistent fineness, robust construction, and high throughput—we recommend the following two products:

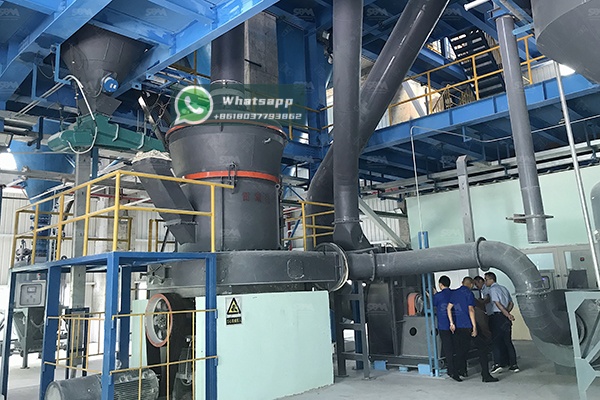

1. MTW Trapezium Grinding Mill – The Industry Standard for Barite

The MTW series is a patent-protected mill with a compact, eco-friendly design and a proven track record in barite processing. Its trapezoidal grinding ring and roller geometry increase grinding efficiency by minimizing sliding and maximizing the contact area. For barite with a feed size up to 30–50 mm (depending on model), the MTW mill produces a final product down to 0.038 mm (400 mesh) with capacities from 3 to 45 t/h. Key features include:

• Variable Speed Classifier: Enables precise adjustment of barite fineness to 200–325 mesh.
• Automatic Lubrication: Reduces maintenance downtime in harsh desert conditions.
• Integrated Dust Collector: Meets UAE environmental regulations for fine particle emissions.

Recommended model for most UAE barite plants: MTW175G – feed size <40 mm, capacity 9.5–25 t/h, main motor 160 kW. For larger operations, the MTW215G (up to 45 t/h) is ideal.

2. LM Vertical Grinding Mill – High-Capacity Integrated Solution

For drilling companies that require a single machine to handle crushing, grinding, drying, and classification, the LM Vertical Mill is unbeatable. It combines two-roller or four-roller grinding beds with a dynamic separator. The LM vertical mill series is particularly efficient for barite because the material is ground under pressure between the roller and the rotating disc, resulting in high grinding efficiency and lower energy consumption per ton.

• Integrated Drying: Can handle feed materials with up to 15% moisture (common in some imported barite).
• Small Footprint: Reduces capital investment in civil works – valuable for mobile barite blending units in the UAE.
• Easy Product Changeover: Quickly switch between different fineness targets (e.g., 200 mesh for standard mud, 325 mesh for high-density formulations).

Best fit for medium to large capacity: LM190K – plate diameter 1900 mm, capacity 23–68 t/h (barite output 200 mesh), main motor 500 kW. This model is widely used in GCC barite grinding plants.

Alternatively, for ultra-fine barite powder (D97 ≤ 30 μm) used in specialized oilfield applications, the LUM Ultrafine Vertical Mill can produce powder down to 5–30 μm with capacities of 2–15 t/h. However, for standard drilling grade, the MTW and LM series offer the best cost-performance balance.

Comparison: MTW vs LM for UAE Barite Grinding

Case Study: Successful Barite Grinding in GCC with Zenith Mills

In 2022, a major mud company in Abu Dhabi installed two MTW175G mills to process local barite ore. Previously using imported ball mills, the company faced high wear rates and inconsistent fineness. After switching to Zenith’s MTW mills, they achieved:

• Product fineness: 98% passing 200 mesh, 96% passing 325 mesh.
• Capacity increase: 22 t/h per mill (vs. 15 t/h with ball mills).
• Power savings: 18% lower kWh per ton.
• Maintenance intervals extended to 4000 operating hours.

This demonstrates how the right grinding technology directly improves drilling fluid quality and reduces total cost of ownership—critical factors in the competitive UAE market.

Additional Zenith Solutions for Complete Barite Processing

Zenith also provides complementary equipment to build a turnkey barite powder plant:

• Jaw Crusher & Impact Crusher – primary crushing of run-of-mine barite (max 500 mm to <50 mm).
• Vibrating Feeder & Screen – material handling and pre-screening.
• Belt Conveyor & Bucket Elevator – transport between stages.
• Pulse Dust Collector – meeting UAE environmental standards (air quality index).

Additionally, Zenith’s XZM Ultrafine Grinding Mill can produce barite powder as fine as 2500 mesh for specialty applications like oil-well cementing or barrier coatings.

Why Choose Shanghai Zenith Machinery for UAE Drilling Projects?

With over 30 years of experience and thousands of installations worldwide, Zenith understands the unique challenges of the drilling industry. Our mills are designed for:

• High wear resistance – using chrome-alloy grinding rollers and rings suitable for barite abrasion.
• Customizable configurations – including explosion-proof designs for barite plants handling fine dust.
• Remote monitoring – our PLC-based control system can be integrated with existing SCADA in UAE facilities.
• After-sales support – we have distribution partners in Dubai and Abu Dhabi offering spare parts and on-site service.

In a region where drilling downtime costs tens of thousands of dollars per hour, reliable barite grinding equipment is not a luxury—it is a necessity. Partner with Shanghai Zenith Machinery to ensure your drilling mud stays consistently dense, safe, and cost-effective.

Conclusion

The UAE’s ambitious oil and gas production targets demand high-quality barite powder that meets API specifications. By selecting the right grinding mill—whether the versatile MTW Trapezium Mill for medium capacities or the powerful LM Vertical Mill for high-throughput plants—operators can achieve consistent fineness, energy savings, and long equipment life. Shanghai Zenith Machinery remains the trusted partner for the region’s drilling industry, delivering world-class grinding solutions backed by decades of innovation. For a free consultation and mill selection based on your specific barite feed and capacity requirements, contact our sales team or visit our global website.
