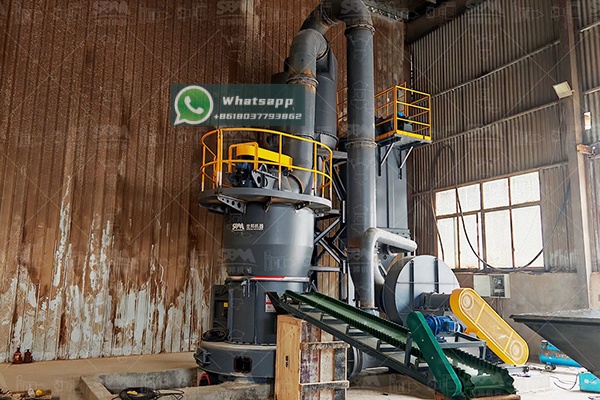

Barite grinding mill for UAE 10tph drilling mud

1. Introduction: The Role of Barite in Drilling Mud for UAE

The United Arab Emirates (UAE) is one of the world’s leading oil and gas producers, with extensive drilling operations both onshore and offshore. In these operations, drilling mud (or drilling fluid) plays a critical role in lubricating the drill bit, stabilizing the wellbore, and controlling formation pressure. Barite (barium sulfate, BaSO₄) is the most widely used weighting agent in drilling fluids due to its high specific gravity (4.2–4.5 g/cm³), chemical inertness, and relatively low cost. Adding barite to water-based or oil-based muds increases the fluid density, allowing it to counteract high formation pressures and prevent blowouts.

For a typical drilling mud formulation, the required barite fineness is usually 95% passing 325 mesh (44 microns) or finer, with a minimum specific gravity of 4.2. The UAE market demands consistent quality and reliable supply of barite powder, often at capacities around 10 tons per hour (tph). This calls for robust, energy-efficient grinding mills that can handle the abrasive nature of barite while delivering a stable product with minimal downtime.

2. Why Choose a Dedicated Barite Grinding Mill?

Barite is a moderately hard mineral (Mohs hardness 3–3.5) but can be abrasive due to its high density. Traditional grinding equipment like Raymond mills or ball mills have been used for decades, but they often suffer from high energy consumption, frequent maintenance, and limited capacity control. For a 10tph drilling mud application in the UAE, a modern vertical roller mill or trapezium mill offers several advantages:

• Higher grinding efficiency: Advanced roller and ring designs reduce energy consumption per ton of product.
• Stable product fineness: Integrated classifiers ensure that 95% of the product passes 325 mesh consistently.
• Lower wear costs: Durable wear parts made of high-chromium alloy extend service life, especially important for abrasive barite.
• Compact footprint: For UAE’s often space-constrained onshore rig sites or processing plants, a single machine that integrates grinding, classifying, and conveying saves valuable floor space.

3. Shanghai Zenith Machinery: Excellence in Ore Grinding Equipment

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China, with decades of experience in the field of ultra-fine powder grinding. We specialize in the research, development, and production of industrial powder grinding equipment and other related devices. Our product line includes MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. For the UAE barite drilling mud requirement of 10tph, two of our most suitable machines are the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill.

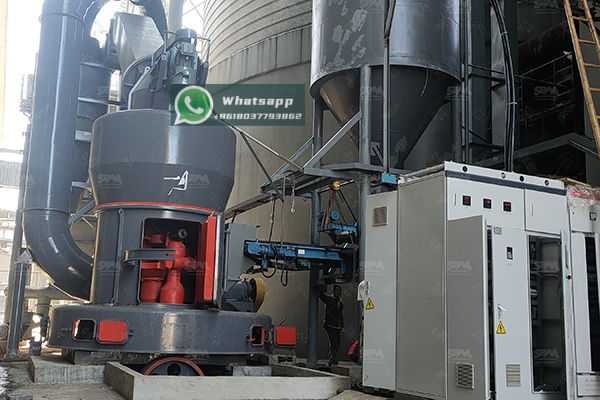

4. Recommended Product: MTW138Z Trapezium Grinding Mill

The MTW Trapezium Grinding Mill is a multi-patented mill known for its compact structure, long service life, and eco-friendly design. It is ideal for processing barite with a maximum input size of 35mm, producing a final product as fine as 0.045mm (325 mesh). The model MTW138Z offers a capacity range of 6-17 t/h, perfectly covering the 10tph target. Key parameters:

The trapezium-shaped rollers and rings improve grinding efficiency and reduce sliding between materials. The built-in high-efficiency classifier ensures that the barite product meets the strict drilling mud specifications. Furthermore, the mill is equipped with a pulse dust collector, making it environmentally friendly for UAE’s regulatory standards.

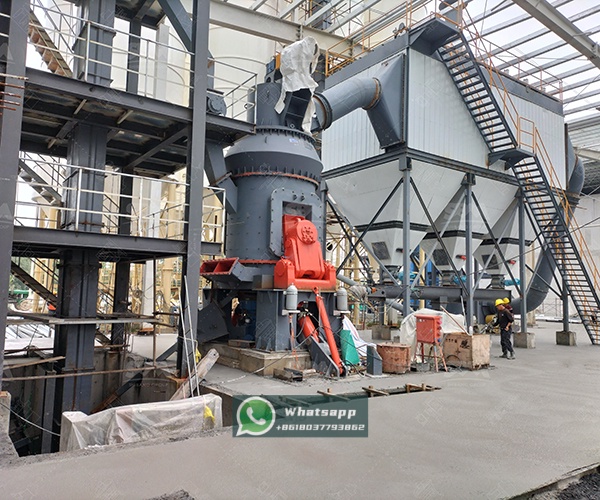

5. Alternative Recommendation: LM130K Vertical Grinding Mill

For customers who prefer a vertical mill solution, the LM130K vertical grinding mill is an excellent choice. It integrates crushing, grinding, powder selection, drying, and material conveying into a single unit. With a plate diameter of 1300mm, it can handle feed sizes up to 38mm and produce a fineness of 170-40 microns (corresponding to 88-325 mesh). Its capacity range is 10-28 t/h, easily covering 10tph. The main motor power is 200 kW.

The LM130K features a low wear rate thanks to its unique roller and segmented grinding table design. The automatic control system allows easy adjustment of product fineness, ensuring consistent quality for drilling mud. Its small footprint and low noise level make it suitable for installation near drilling sites or centralized barite processing plants in the UAE.

6. Comparison and Selection Guide for UAE 10tph Barite Grinding

Both the MTW138Z and LM130K can achieve the required 10tph capacity and 325 mesh fineness for drilling mud barite. The choice depends on specific site conditions:

• MTW138Z is more suitable when the feed material contains larger particles (up to 35mm) and when a more traditional grinding path is preferred. It offers lower initial investment and simpler operation.
• LM130K excels in applications where energy efficiency and a smaller footprint are critical. Its vertical design reduces installation area by about 50% compared to trapezium mills, and the integrated drying function can handle barite with slightly higher moisture content (up to 8%).

Both mills are manufactured with high-quality wear parts and backed by Shanghai Zenith’s global after-sales service network, including spare parts warehouses and technical support in the Middle East.

7. Important Considerations for Barite Grinding in UAE

When setting up a barite grinding mill for drilling mud in the UAE, operators should consider:

• Feed moisture: Barite is usually dry, but if damp, a mill with drying capability (like LM Vertical Mill) is advantageous.
• Abrasiveness: Barite causes wear on grinding elements. Using mills with replaceable wear parts and chromium alloy coatings extends equipment life.
• Power supply: UAE industrial zones provide 415V/50Hz three-phase power; both MTW and LM mills are adaptable.
• Environmental compliance: Both mills are equipped with bag filters to keep dust emissions below 20 mg/Nm³, meeting UAE’s environmental standards.

8. Conclusion: Reliable Barite Grinding Solution for UAE Drilling Industry

Shanghai Zenith offers proven, high-performance grinding mills for barite powder production. The MTW138Z Trapezium Grinding Mill and LM130K Vertical Grinding Mill are both capable of delivering the required 10tph capacity with a product fineness suitable for drilling mud. With decades of expertise in ore grinding, Zenith ensures that each machine is engineered for durability, efficiency, and ease of maintenance. For the demanding drilling operations in the UAE, investing in a Zenith grinding mill means consistent mud quality, lower operating costs, and reduced downtime.

Contact our team today for a customized proposal, including site layout, power requirements, and after-sales support. Let Zenith be your partner in barite grinding success.
