Basalt milling line for Oman aggregate production

Introduction

Oman, a country characterized by its rugged terrain and abundant mineral resources, has witnessed rapid growth in infrastructure and construction projects over the past decade. As the demand for high-quality aggregates continues to soar, the need for efficient and reliable milling lines has become paramount. Basalt, being one of the most common igneous rocks in Oman, is an ideal raw material for producing construction aggregates, road base materials, and manufactured sand. However, basalt is known for its high hardness and abrasiveness, which poses significant challenges to conventional crushing and grinding equipment. This article explores the development of a dedicated basalt milling line tailored to Oman’s aggregate industry, highlighting the advanced solutions provided by Shanghai Zenith Machinery Co., Ltd.

Understanding Basalt and Its Applications in Aggregate Production

Basalt is a volcanic rock formed from the rapid cooling of lava. It is dense, fine-grained, and rich in iron and magnesium, giving it exceptional durability and compressive strength. These properties make basalt an excellent choice for high-specification concrete aggregates, asphalt mixes, railway ballast, and filter stones. In Oman, basalt quarries are widely distributed across regions such as Al Batinah, Al Sharqiyah, and Dhofar, providing ample supply for local and export markets. However, the very properties that make basalt desirable also render it difficult to process. Its Mohs hardness typically ranges from 5 to 7, and its silica content can be high, leading to rapid wear of grinding media and mill internals. Therefore, a robust and efficient milling line is essential for maximizing yield and minimizing downtime.

Key Considerations for Basalt Milling in Oman

Designing a basalt milling line requires careful consideration of several factors. First, the feed size from the primary crusher can be as large as 50 mm, demanding grinding mills with capable feed openings and strong crushing capacities. Second, the final product specifications vary according to application. For aggregate production, the target fineness often ranges from 0-3 mm for coarse powder and up to 0.045 mm for finer fractions. Third, the abrasive nature of basalt necessitates the use of wear-resistant components and optimized grinding principles to maintain operational efficiency. Additionally, Oman’s hot desert climate and limited water resources require water-saving technologies, making dry grinding processes more favorable. Finally, the milling line must be energy-efficient, as power costs can constitute a significant portion of operating expenses. Addressing these challenges calls for cutting-edge grinding equipment with proven track records in similar applications.

Shanghai Zenith Machinery: A Trusted Partner in Powder Grinding

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China, with extensive experience and accomplishments in the field of ultra-fine powder grinding. The company specializes in the research, development, and production of industrial powder grinding equipment and related devices. Its comprehensive product portfolio includes the MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. Each product is engineered to meet diverse grinding requirements, from coarse crushing to ultra-fine pulverization. For a basalt milling line in Oman, Zenith offers tailored solutions that combine high capacity, low energy consumption, and exceptional reliability.

The Basalt Milling Line Process Flow

A typical basalt milling line for aggregate production involves several stages. First, basalt rocks are blasted and loaded into a primary jaw crusher, reducing the material to approximately 100-150 mm. The crushed material is then conveyed to a secondary cone crusher or impact crusher, where it is further reduced to sizes smaller than 30-50 mm. This pre-crushed basalt is then fed into the grinding mill. Zenith recommends either the MTW Trapezium Grinding Mill or the LM Vertical Grinding Mill for this crucial stage, depending on the target output and fineness. The mill grinds the basalt into fine powders or sands, which undergo classification via an integrated air classifier. Oversized particles are returned for regrinding, while the qualified powder is collected by a bag filter or cyclone and stored in silos. The entire process is automated and monitored via a centralized control system, ensuring consistent product quality and minimal operator intervention.

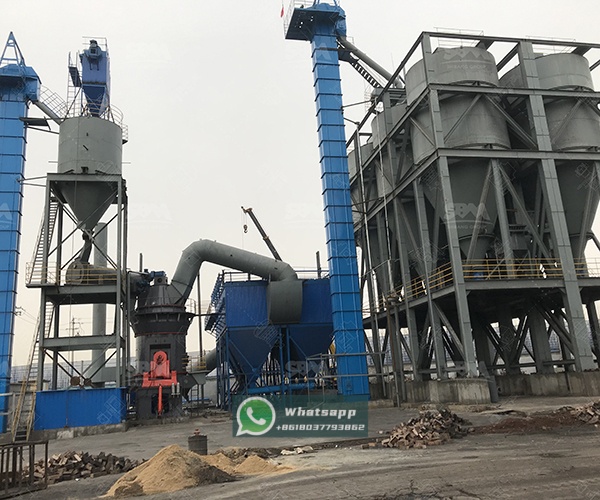

Recommended Products: MTW and LM Mills

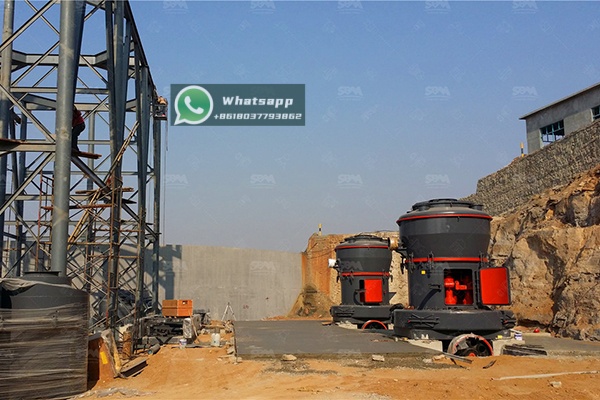

For custom basalt milling production, Zenith’s MTW Trapezium Grinding Mill stands out as a versatile and high-performance solution. With multiple patents, the MTW mill features compact structure, long service life, and eco-friendly design. It accepts a maximum feed size of 50 mm and can produce final powders as fine as 0.038 mm. The MTW215G model, for instance, offers a capacity of 15-45 t/h, powered by a 280 kW main motor. Its trapezoidal grinding rollers and ring, combined with an internal high-efficiency classifier, ensure high grinding efficiency and uniform product fineness. These features make the MTW mill particularly suitable for processing abrasive basalt while maintaining stable output and low downtime.

Alternatively, the LM Vertical Grinding Mill is another excellent choice for basalt milling lines. It integrates five functions: crushing, grinding, powder selection, drying, and material conveying in one machine. The LM series occupies a small area and produces fine final powder with narrow particle size distribution. For example, the LM130K model has a plate diameter of 1300 mm and can process 10-28 t/h of basalt to a fineness of 170-40 microns, with a main motor power of 200 kW. The vertical structure allows for efficient drying using hot air, which is beneficial if the basalt feed has slightly elevated moisture. Additionally, the LM mill’s hydraulic loading system and wear-resistant liners reduce maintenance costs, making it a robust and economical solution for Oman’s demanding conditions.

Advantages of Choosing Zenith for Your Basalt Milling Line

Investing in a Zenith milling line brings numerous benefits to aggregate producers in Oman. Firstly, Zenith’s equipment is renowned for high grinding efficiency, which directly translates into increased throughput and reduced specific energy consumption. The trapezium design of the MTW mill, for instance, creates an ideal grinding curve that maximizes contact area between rollers and material, thereby enhancing size reduction while minimizing wear. Secondly, Zenith mills are built for longevity. Critical components such as grinding rings, rollers, and classifier blades are made from high-chrome alloys or composite wear-resistant materials, ensuring extended service intervals even when handling highly abrasive basalt. Thirdly, the intelligent control system supplied with Zenith mills allows operators to adjust fineness and output in real time, optimizing the process for varying raw material conditions and product requirements. This flexibility is crucial for meeting the stringent specifications of construction projects in Oman and the wider Gulf region.

Furthermore, Zenith provides comprehensive after-sales support, including installation supervision, operator training, and spare parts availability. The company’s global network of service centers ensures rapid response times, minimizing any potential loss of production. By choosing a complete Zenith basalt milling line, operators can rest assured that they are partnering with a manufacturer that understands the intricacies of abrasive mineral processing and is dedicated to delivering long-term value.

Case Study Scenario: A 20 t/h Basalt Mill Plant in Oman

To illustrate the practicality of Zenith’s equipment, consider a hypothetical basalt milling plant designed for aggregate production with a target capacity of 20 t/h. The plant begins with a primary jaw crusher, followed by a cone crusher to prepare 30 mm feed. The crushed basalt is then introduced into an LM190K vertical grinding mill. Based on its specifications, the LM190K can produce 23-68 t/h of material at a fineness of 170-40 microns. However, for coarser aggregate products such as 0-3 mm manufactured sand, the throughput can be even higher. To achieve the desired balance, an alternative configuration could employ the MTW175G mill, which delivers 9.5-25 t/h at finer settings. With a 160 kW main motor and a 200 kW fan motor, the total installed power remains manageable, ensuring favorable energy costs per ton of product. The mill’s integrated separator ensures that only fine particles pass through, with coarse material recycled for further grinding. This closed-loop system maximizes yield and eliminates the need for additional screening equipment.

The finished basalt powder is conveyed to a series of silos, with samples taken periodically for quality control. The plant’s control room, equipped with PLC-based automation, allows a single operator to oversee the entire process, from feed control to product discharge. In the hot and dusty Omani climate, Zenith’s mills are designed with sealed housings and effective dust collection points, ensuring a clean and safe working environment. Additionally, the heavy-duty bearings and lubrication systems require minimal water, aligning with sustainable practices in arid regions.

Conclusion

As Oman continues to diversify its economy and invest in mega-projects such as ports, railways, and smart cities, the demand for high-quality basalt aggregates will inevitably rise. A well-designed basalt milling line is the backbone of any successful aggregate production operation. Shanghai Zenith Machinery Co., Ltd. offers state-of-the-art grinding solutions that combine efficiency, durability, and precision. Whether using the MTW Trapezium Grinding Mill or the LM Vertical Grinding Mill, customers can achieve high outputs of fine and uniform products while maintaining low operating costs. With a robust product portfolio, advanced technology, and a commitment to customer success, Zenith is the ideal partner for developing basalt milling lines in Oman and beyond.

For more information about Zenith’s grinding mills and how they can be tailored to your specific aggregate or powder project, please contact our international sales team. We look forward to assisting you in building a profitable and sustainable milling operation.
