Carbon black powder mill for Indonesia plastics industry

Carbon Black Powder Mill for Indonesia Plastics Industry

Indonesia is one of the fastest-growing economies in Southeast Asia, with a rapidly expanding plastics industry that serves diverse sectors such as packaging, automotive, construction, and consumer goods. Carbon black is a critical additive in plastic manufacturing, serving as a reinforcing agent, UV stabilizer, and colorant. The quality and fineness of carbon black powder directly influence the performance of plastic products, including tensile strength, dispersion, and color consistency. As demand for high-quality plastics surges in Indonesia, the need for advanced carbon black powder grinding solutions becomes paramount. Shanghai Zenith Machinery Co., Ltd., a leading manufacturer of ore and industrial powder grinding equipment in China, offers a comprehensive range of mills specifically designed to produce ultra-fine carbon black powder with superior efficiency and reliability.

The Importance of Fine Carbon Black Grinding in Plastics

Carbon black used in plastics typically requires particle sizes ranging from 10 to 50 microns, with high-end applications demanding sub-micron or nano-scale dispersion. Insufficient grinding leads to poor dispersion, resulting in visible agglomerates, reduced mechanical properties, and uneven coloring. Moreover, the moisture content of raw carbon black must be carefully controlled to prevent clogging and ensure smooth operation. Therefore, selecting the right grinding mill is crucial for achieving the desired fineness (often D97 < 20 μm) while maintaining high throughput and low energy consumption. For Indonesian plastic compounders and masterbatch producers, investing in a mill that can handle the abrasive nature of carbon black and deliver consistent particle size distribution is a strategic advantage.

Shanghai Zenith’s Solution for Carbon Black Processing

With years of experience in the mining and powder processing industry, Shanghai Zenith has developed a series of mills that excel in grinding carbon black. Two of the most suitable models for the Indonesian plastics market are the XZM Ultrafine Grinding Mill and the LUM Ultrafine Vertical Mill. Both machines are engineered to produce ultra-fine powders in the range of 325 to 2500 mesh (approximately 5 to 44 microns), meeting the strict specifications of plastic applications.

XZM Ultrafine Grinding Mill – Ideal for High-Fineness Carbon Black

The XZM Ultrafine Grinding Mill is a proven workhorse for carbon black grinding. Its multi-stage classification system ensures a precise cut point, minimizing over-grinding and maximizing yield. With a maximum feed size of 20 mm and final fineness adjustable between 325 and 2500 mesh, it is particularly effective for producing fine carbon black powder for plastics. The mill features a main motor power ranging from 75 kW to 315 kW, with an output capacity of 500 kg/h to 25,000 kg/h, depending on the model. Its robust design, combined with wear-resistant materials, provides long service life even when handling abrasive carbon black. For Indonesian plastics manufacturers seeking high hourly output with consistent quality, the XZM221 and XZM268 models are excellent choices.

• Model XZM221: Working diameter Φ800 mm, max feed ≤20 mm, final size 325-2500 mesh, output 500-4500 kg/h, main motor 75 kW.
• Model XZM268: Working diameter Φ1680 mm, max feed ≤20 mm, final size 325-2500 mesh, output 5000-25000 kg/h, main motor 315 kW.

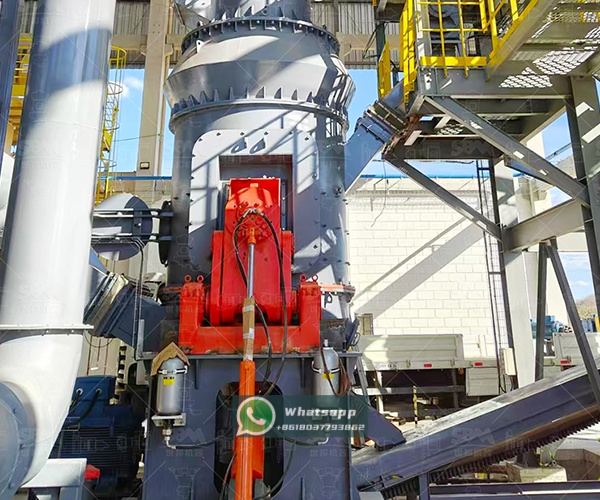

LUM Ultrafine Vertical Mill – Compact and Intelligent

The LUM Ultrafine Vertical Mill integrates grinding, drying, classifying, and conveying in a single unit, offering a compact footprint ideal for plants with space constraints. Its intelligent control system automatically adjusts parameters to maintain stable product fineness, reducing operator intervention. The LUM series achieves a final size distribution of D97 5-30 μm, perfectly matching the requirements of high-end plastic masterbatch production. With main motor power from 220 kW to 400 kW and capacity up to 15 t/h, the LUM1632 and LUM1836 models are particularly recommended for medium-to-large scale operations in Indonesia. The vertical roller design also offers lower energy consumption per ton compared to traditional ball mills, making it a cost-effective solution in the long run.

Why Choose Shanghai Zenith for Indonesia’s Carbon Black Grinding?

Shanghai Zenith Machinery Co., Ltd. has established a strong reputation in the global powder processing market. Our machines are built using high-quality components and undergo rigorous quality control. We also provide comprehensive after-sales support, including installation, commissioning, and training, which is particularly valuable for Indonesian customers who may need technical guidance. Additionally, our mills are designed with environmental protection in mind – equipped with efficient dust collectors and noise reduction features to comply with Indonesia’s environmental regulations. Whether you are a small masterbatch workshop or a large industrial plastic compounder, Zenith offers a tailored solution backed by decades of expertise.

Technical Considerations for Carbon Black Milling in Indonesia

The tropical climate in Indonesia often results in higher ambient humidity, which can cause carbon black to absorb moisture and become sticky. To address this, both the XZM and LUM mills incorporate hot air or gas systems for in-situ drying during grinding. The mills also feature advanced sealing mechanisms to prevent dust leakage, ensuring a safe working environment. Furthermore, the wear parts (grinding rollers, rings, liners) are manufactured from durable alloys to withstand the abrasive nature of carbon black, reducing downtime for maintenance. With proper operation, the mills can maintain a stable capacity and fineness for years, offering an excellent return on investment.

Conclusion

The Indonesian plastics industry is poised for continued growth, and the demand for high-quality carbon black powder will only increase. By partnering with Shanghai Zenith Machinery, local manufacturers can access state-of-the-art grinding technology that delivers consistent, ultra-fine powders with high efficiency and low operating costs. The XZM Ultrafine Grinding Mill and LUM Ultrafine Vertical Mill represent the ideal choices for carbon black processing, combining proven reliability with advanced features tailored to the needs of the plastics sector. Contact Shanghai Zenith today to learn more about how our mills can elevate your production capability.
