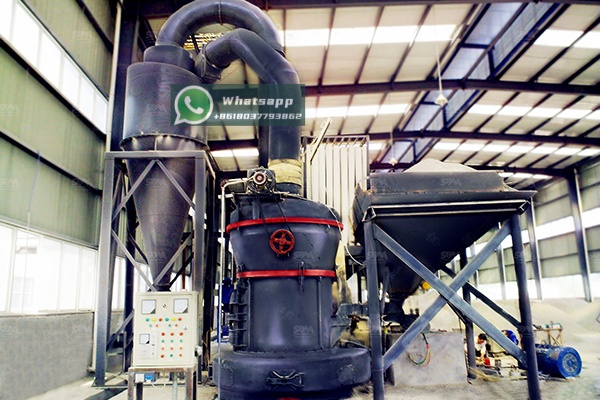

Calcium carbonate milling line for Bangladesh chemical plants

1. Introduction: The Growing Demand for Calcium Carbonate in Bangladesh

Bangladesh’s chemical industry has been expanding rapidly over the past decade, driven by the country’s booming manufacturing sector, particularly in plastics, paints, coatings, rubber, and construction materials. Calcium carbonate (CaCO₃) is one of the most widely used industrial minerals in these applications, serving as a filler, extender, and functional additive. To meet the increasing quality and quantity requirements, chemical plants in Bangladesh require reliable and efficient calcium carbonate milling lines that can produce fine and ultra-fine powders with consistent particle size distribution.

Shanghai Zenith Machinery Co., Ltd., an excellent manufacturer of ore grinding equipment in China, has made great achievements in the field of ultra-fine powder grinding. With decades of research and development, Zenith offers a comprehensive range of grinding mills specifically designed for processing calcium carbonate, from coarse powder to superfine products. This article presents a professional overview of a typical calcium carbonate milling line tailored for Bangladesh chemical plants, highlighting key equipment, process flow, and the advantages of choosing Zenith’s solutions.

2. Raw Material Characteristics and Grinding Challenges

Calcium carbonate ore in Bangladesh is typically sourced from local limestone quarries. The raw material has a Mohs hardness of about 3 and a specific gravity of 2.7. Common impurities include silica, clay, and iron oxides, which must be considered during the grinding process. The desired final product for chemical applications usually ranges from 200 mesh (74 μm) for general filler use down to 1250 mesh (10 μm) or even finer for high-end applications such as masterbatch or PVC pipe production.

Key challenges in calcium carbonate milling include:

• Achieving high capacity while maintaining low energy consumption.
• Controlling product fineness and particle shape.
• Minimizing contamination from grinding media.
• Handling varying moisture content in the feed (typically less than 6%).

Zenith’s milling equipment is engineered to overcome these challenges, offering robust performance and long service life.

3. Process Flow of a Typical Calcium Carbonate Milling Line

A complete calcium carbonate milling line for a chemical plant in Bangladesh generally consists of the following stages:

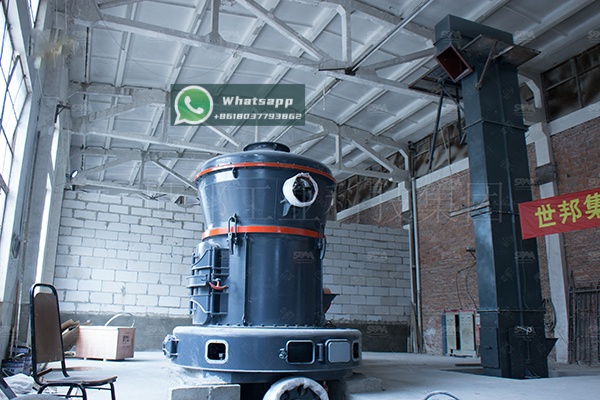

1. Crushing: Large limestone blocks (up to 500 mm) are first reduced to a feed size suitable for the mill (usually below 30–50 mm) using a jaw crusher or hammer crusher.
2. Grinding: The crushed material is fed into the main grinding mill via a vibrating feeder or belt conveyor. The mill reduces the material to the required fineness.
3. Classification: An integrated or external classifier separates the fine powder from oversize particles, which are returned to the mill for further grinding.
4. Collection: Fine powder is collected by a bag filter or cyclone collector. A pulse dust collector ensures environmental compliance.
5. Packaging & Storage: The final product is conveyed to a silo or directly to a packing machine for bagging.

4. Recommended Grinding Equipment from Shanghai Zenith

For Bangladesh chemical plants seeking a balance between production capacity and product fineness, Zenith offers two highly recommended solutions:

4.1 MTW Trapezium Grinding Mill – The Workhorse for Medium-Fine Production

The MTW Trapezium Grinding Mill is a multi-patented milling machine known for its compact structure, long service life, and eco-friendly design. It is ideal for processing calcium carbonate with a maximum feed size of 50 mm, producing a final product as fine as 0.038 mm (400 mesh). Key advantages include:

• High grinding efficiency due to the trapezium-shaped grinding roller and ring.
• Lower energy consumption compared to traditional Raymond mills.
• Reliable operation with a comprehensive lubrication system.
• Easy maintenance and reduced downtime.

For a typical Bangladesh chemical plant requiring 10–20 tons per hour of 325-mesh calcium carbonate, the model MTW138Z or MTW175G would be an excellent choice. The MTW138Z has a capacity of 6–17 t/h with a main motor of 90 kW, while the MTW175G offers 9.5–25 t/h with a 160 kW motor. These mills can handle the moisture content typical of local limestone and are built to withstand continuous operation.

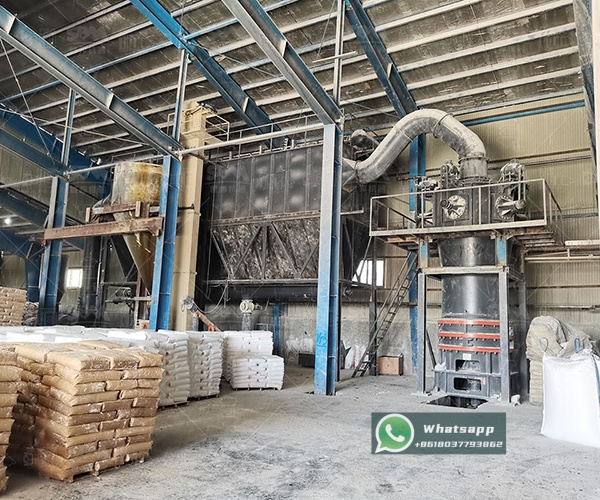

4.2 LUM Ultrafine Vertical Mill – For Ultra-Fine Powder Demands

When the application demands ultra-fine powders (D97 ≤ 10 μm, i.e., 1250 mesh or finer), the LUM Ultrafine Vertical Mill is the ideal solution. It integrates grinding, drying, classifying, and transportation in one compact unit, reducing the footprint and simplifying the process. Key features include:

• High content of end-fines (over 90% below target mesh).
• Intelligent control system for easy operation and maintenance.
• Low energy consumption per ton of product.
• Suitable for soft to medium-hard materials with moisture below 6%.

The LUM1525 model, with a main motor of 220–250 kW and a capacity of 1.6–11.5 t/h (depending on fineness), is particularly suitable for Bangladesh chemical plants that produce high-quality calcium carbonate for the plastic masterbatch industry. For larger capacities, the LUM1632 (2.0–13.5 t/h) or LUM1836 (2.3–15 t/h) can be considered.

5. Auxiliary Equipment and System Design

In addition to the main mill, a well-designed calcium carbonate milling line includes proper feeding, conveying, classification, and dust collection systems. Zenith provides complete system solutions:

• Vibrating Feeder: Ensures uniform feeding to prevent mill overload.
• Belt Conveyor / Screw Conveyor: Transports material between stages.
• Classifier (if not integrated): For precise control of product fineness, especially when using the MTW mill, an external classifier can be added.
• Pulse Bag Dust Collector: Meets stringent environmental regulations in Bangladesh.
• Fan & Air Duct System: Provides necessary airflow for pneumatic conveying and cooling.

6. Economic and Operational Benefits for Bangladesh Plants

Investing in a Zenith calcium carbonate milling line brings several tangible benefits to chemical plants in Bangladesh:

• Energy Efficiency: Compared to traditional ball mills, the MTW and LUM mills can reduce energy consumption by 30–50%, which is critical given rising electricity costs in Bangladesh.
• Product Consistency: Advanced classification technology ensures uniform particle size distribution, improving the quality of downstream products such as PVC compounds and paints.
• Reduced Maintenance: Durable wear parts and centralized lubrication systems minimize downtime and maintenance costs.
• Local Support: Zenith has established service networks and spare parts availability in South Asia, ensuring timely technical support.
• Scalability: Modular design allows for future capacity expansion without replacing the entire system.

7. Case Study: Typical Configuration for a 15 t/h Plant

To illustrate, consider a mid-sized chemical plant in Dhaka that requires 15 tons per hour of calcium carbonate powder at 325 mesh (D97 ≤ 45 μm). A recommended configuration would be:

8. Conclusion

Bangladesh’s chemical industry is poised for continued growth, and a reliable calcium carbonate milling line is essential for meeting both local and export market demands. Shanghai Zenith Machinery Co., Ltd. offers tailor-made solutions with its proven MTW Trapezium Grinding Mill and LUM Ultrafine Vertical Mill, backed by decades of expertise in ultra-fine powder grinding. By choosing Zenith, chemical plants in Bangladesh can achieve high productivity, low operating costs, and superior product quality.

For more information on designing your specific milling line, contact the Zenith team for a detailed feasibility study and equipment quotation.
