Kaolin powder mill for UAE paper coating

Introduction to Kaolin in Paper Coating

Kaolin, or china clay, is a naturally occurring hydrated aluminum silicate and one of the most essential functional fillers and coating pigments in the paper industry. In the United Arab Emirates, the expanding production of printing paper, packaging board and specialty paper has increased the demand for high-quality coated surfaces. Coated paper offers improved brightness, gloss, smoothness and printing fidelity, and kaolin plays a central role in achieving these properties. A well-processed kaolin coating pigment can significantly enhance the appearance and final performance of paper products, which is why paper manufacturers in the UAE are continuously looking for more efficient grinding solutions.

Key Quality Requirements for Coating Kaolin

For paper coating applications, kaolin powder must meet demanding quality standards. Particle size distribution is arguably the most critical parameter. Coating-grade kaolin generally requires a high percentage of fine particles to provide a uniform and glossy surface. The presence of coarse particles can cause streaks or defects in the coating layer, while excessive ultra-fine fractions may increase the demand for binders and reduce opacity. Brightness and whiteness are also essential, as the coating pigment should provide a bright base for printed images. In addition, the powder must have controlled moisture content, low abrasiveness and consistent rheological behavior in the coating formulation.

These requirements mean that the grinding process must be carefully designed. The mill must not only reduce the particle size, but also produce a precise, repeatable particle size distribution. It must also avoid over-grinding and contamination. This is why a high-efficiency grinding system with integrated classification is mandatory in a modern kaolin powder production line.

The Role of Grinding Mills in Kaolin Processing

Raw kaolin from the mine typically contains lumps and impurities. Before it can be used as a paper coating pigment, it must be crushed, ground and classified. Dry grinding is widely used in the UAE and other arid regions because water is scarce and drying costs are high. A modern dry grinding mill can integrate several functions in one unit: crushing, grinding, air classification and drying. This not only saves floor space but also reduces energy consumption and maintenance complexity. The mill also needs to handle the mildly abrasive nature of kaolin without causing excessive wear to the grinding media and internal liners.

When selecting a kaolin powder mill, capacity, fineness, energy efficiency and operational stability are the main considerations. The mill should be capable of producing fine and ultra-fine powders while maintaining a large throughput. In the UAE, where industrial projects are often fast-tracked, equipment reliability and after-sales service are equally important.

Shanghai Zenith Machinery and Its Advanced Kaolin Powder Mills

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China. The company has made great achievements in the field of ultra-fine powder grinding and specializes in the research, development and production of industrial powder grinding equipment. For kaolin applications, Zenith offers a complete range of mills, including MTW Trapezium Grinding Mill, MTM Medium-Speed Grinding Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, Raymond Mill, Hammer Mill and Ball Mill. Among these, the LUM Ultrafine Vertical Mill and the XZM Ultrafine Grinding Mill are particularly well suited to the production of fine kaolin powders for paper coating.

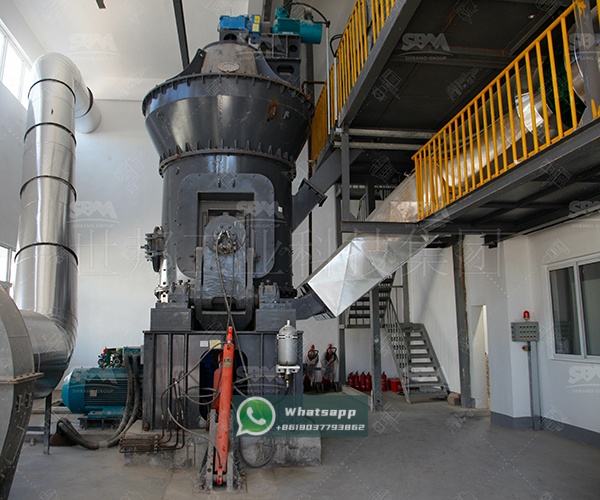

Recommended Solution 1: LUM Ultrafine Vertical Mill

The LUM Ultrafine Vertical Mill is a flagship product from Zenith for ultra-fine powder production. It integrates grinding, drying, classification and transportation in a single compact system. This is especially valuable for UAE kaolin projects, where space and energy efficiency are important. The machine uses advanced roller technology and a dynamic air classifier to deliver powders with a D97 of 5 to 30 microns. This range is widely used for coating base formulations, pre-coating layers and high-performance paper fillers. The LUM mill is also designed for intelligent control, making it easier to maintain stable product quality and reduce operator workload.

In terms of capacity, the LUM1525 is powered by a 220 to 250 kW main motor and can produce 1.6 to 11.5 tons per hour. The larger LUM1836 uses a 355 to 400 kW motor and reaches a capacity of 2.3 to 15 tons per hour. With a compact footprint and reliable wear protection, the LUM series provides a flexible and long-lasting solution for kaolin processors in the UAE.

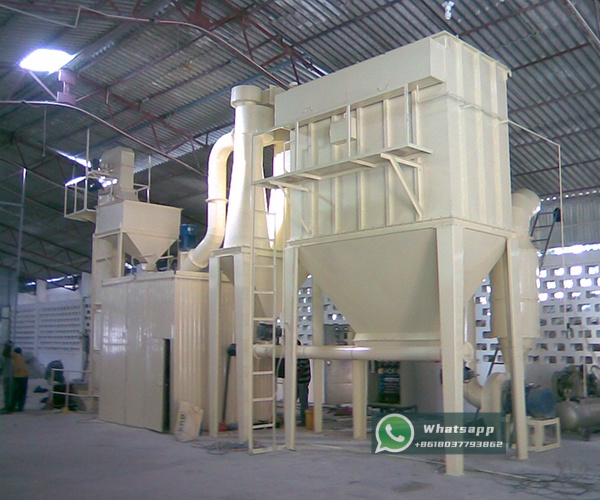

Recommended Solution 2: XZM Ultrafine Grinding Mill

For projects that require an even wider range of fineness, Zenith recommends the XZM Ultrafine Grinding Mill. The XZM mill is widely used for superfine powder production and is ideal for kaolin and other soft or medium-hard minerals with a moisture content below 6 percent. It can produce powders from 325 mesh up to 2500 mesh, which corresponds to approximately 44 to 5 microns. The mill has a small footprint, high grinding efficiency and low energy consumption. The XZM221 model has a working diameter of 800 mm and a main motor power of 75 kW, with an output of 500 to 4500 kg per hour. The larger XZM268 can deliver 5000 to 25000 kg per hour with a 315 kW main motor. Both models accept a maximum feed size of 20 mm and are well suited for medium-scale and large-scale kaolin powder plants in the UAE.

Choosing the Right Mill for Your Kaolin Project

The choice between LUM and XZM depends on the required throughput and fineness. If the project focuses on high-capacity production of ultra-fine powders with a controlled D97, the LUM Ultrafine Vertical Mill is the ideal primary option. If the objective is to produce a wide spectrum of fine to superfine powders with simple operation and lower initial investment, the XZM Ultrafine Grinding Mill offers excellent value. Both machines are built with high-quality materials and are supported by Zenith’s global service network. Zenith can also recommend additional equipment for washing, drying and surface modification, allowing customers to build a complete kaolin processing plant from a single reliable partner.

Why Zenith Is the Right Partner for UAE Kaolin Processing

Shanghai Zenith Machinery Co., Ltd. has decades of experience in the design and production of grinding equipment. The company’s achievements in ultra-fine powder grinding are recognized worldwide. Zenith mills are exported to many countries, including the UAE, where they have demonstrated excellent performance in mineral processing and building materials applications. Zenith provides complete solutions from single machines to full turnkey projects, including engineering design, installation and commissioning. The company also offers technical training and spare parts support, which are essential for continuous operation in the demanding UAE market.

Moreover, the UAE government has been promoting industrial diversification and sustainable manufacturing. Efficient grinding equipment helps reduce energy consumption and emissions, aligning with national and corporate sustainability goals. By selecting a Zenith kaolin powder mill, UAE paper manufacturers can strengthen their competitiveness with high-quality products and lower operating costs.

Conclusion

Kaolin remains a key raw material for the paper coating industry in the UAE. To produce coating-grade kaolin powder that meets strict quality specifications, manufacturers need advanced grinding technology. Shanghai Zenith Machinery Co., Ltd. offers proven solutions with its LUM Ultrafine Vertical Mill and XZM Ultrafine Grinding Mill. These mills provide excellent fineness control, high capacity, energy efficiency and reliable operation. For any UAE paper coating project looking for a professional kaolin powder mill, Zenith’s equipment represents a sound investment in quality and productivity.
