Petroleum Coke Grinding Mill for Anode Material in Turkey

Turkey has become an important hub for aluminium production, carbon anode manufacturing, and related industrial mineral processing. As aluminium smelters and anode plants expand, demand for high-quality petroleum coke powder continues to rise. Petroleum coke, especially calcined petroleum coke, is a key raw material for carbon anodes used in aluminium electrolysis. To convert green coke or calcined coke into a suitable anode formulation, producers must grind the material to a controlled particle size distribution. This is where a reliable petroleum coke grinding mill becomes essential. Shanghai Zenith Machinery Co., Ltd. offers advanced grinding equipment for this application, including the LM Vertical Grinding Mill and the MTW Trapezium Grinding Mill.

Why Petroleum Coke Grinding Is Critical for Anode Material

Anode material for the aluminium industry requires carefully prepared coke powder. The particle size distribution affects anode density, electrical conductivity, mechanical strength, and oxidation resistance. If the coke is too coarse, the anode may have poor reactivity and uneven baking behavior. If the powder is too fine, it can increase binder demand and cause excessive shrinkage, cracks, or porosity. Therefore, anode producers need grinding systems that deliver consistent fineness, high capacity, and low contamination.

Petroleum coke is abrasive and can contain moisture, sulfur, vanadium, and other impurities. Grinding equipment must handle abrasive wear, maintain stable output, and allow easy maintenance. In Turkey, anode plants often process imported or domestic calcined petroleum coke. The target fineness is commonly in the range of 200 mesh to 325 mesh, or approximately 75 microns to 45 microns, depending on the anode recipe and downstream mixing process. Some plants also require coarser fractions for aggregate and finer fractions for binder matrix. A flexible grinding circuit is therefore important.

Key Requirements for Grinding Systems in Turkey

Turkish anode material producers consider several factors when selecting a petroleum coke grinding mill. First, capacity must match the anode plant scale. Small and medium plants may need 10 to 30 tons per hour, while larger plants may require 50 tons per hour or more. Second, fineness control must be reliable. The mill should produce a stable particle size distribution and allow quick adjustment. Third, energy consumption should be low because grinding is an energy-intensive stage. Fourth, the system must be environmentally friendly and meet local dust emission standards. Finally, maintenance and spare parts availability are crucial for continuous operation.

Another important factor is drying. Petroleum coke can contain surface moisture, and calcined coke may still absorb moisture during storage and transport. A grinding mill with integrated drying capability can reduce auxiliary equipment and improve process efficiency. Vertical mills are particularly suitable because hot gas can be introduced into the mill to dry the material while grinding. This makes them a strong choice for petroleum coke processing in Turkey, where plants value compact layout and stable production.

Recommended Product: LM Vertical Grinding Mill

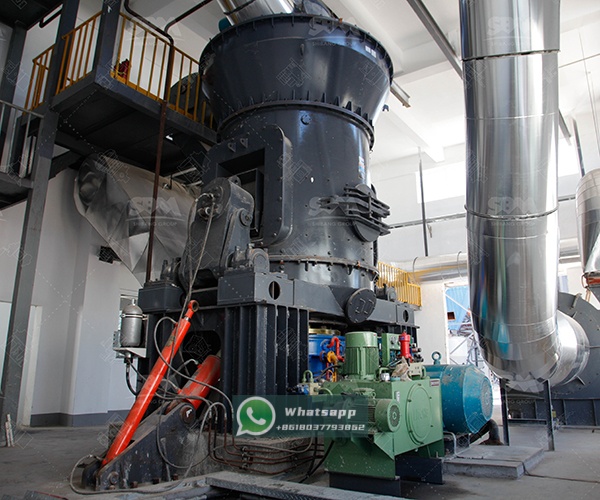

Shanghai Zenith Machinery recommends the LM Vertical Grinding Mill for petroleum coke grinding in anode material production. The LM series integrates crushing, grinding, powder selection, drying, and material conveying into one system. It occupies a small footprint, produces a fine final powder, and supports eco-friendly production. For anode material, the LM Vertical Grinding Mill can process petroleum coke to the required fineness while maintaining high capacity and low noise.

The LM Vertical Grinding Mill is available in multiple models. For medium-scale anode plants, the LM190K offers a plate diameter of 1900 mm, a capacity of 23 to 68 tons per hour, an output fineness of 170 to 40 microns, a maximum feed size below 45 mm, and a main motor power of 500 kW. For large-scale projects, the LM280K provides a plate diameter of 2800 mm, capacity of 50 to 170 tons per hour, output fineness of 170 to 45 microns, maximum feed size below 50 mm, and main motor power of 1250 kW. These models are well suited to Turkish anode plants that require high throughput and consistent product quality.

The LM Vertical Grinding Mill offers several advantages for petroleum coke. Its grinding rollers and table are designed for abrasive materials, reducing wear and extending service life. The integrated classifier allows precise control of fineness. The drying function helps remove moisture without a separate dryer. The system is sealed and operates under negative pressure, which reduces dust escape and improves the working environment. In addition, the mill has intelligent control and easy maintenance access, helping plant operators reduce downtime.

Recommended Product: MTW Trapezium Grinding Mill

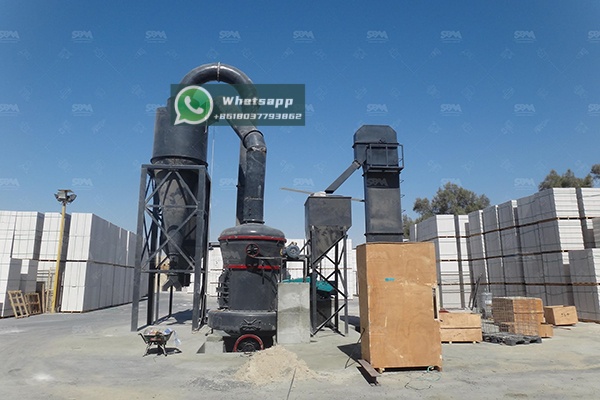

For small to medium anode material lines, Shanghai Zenith also recommends the MTW Trapezium Grinding Mill. The MTW series is a patented grinding mill known for its compact structure, long service life, and eco-friendly design. It is suitable for processing materials with a maximum input size of 50 mm and can produce a final product as fine as 0.038 mm. This makes it a practical choice for petroleum coke grinding where 200 mesh or 325 mesh powder is required.

The MTW215G model is especially suitable for higher capacity petroleum coke projects. It has a maximum feed size below 50 mm, a final size range of 1.6 to 0.045 mm, a capacity of 15 to 45 tons per hour, a main motor of 280 kW, and a fan motor of 315 kW. For smaller operations, the MTW138Z provides a capacity of 6 to 17 tons per hour, a final size range of 1.6 to 0.045 mm, and a main motor of 90 kW. These models can be configured with air classifiers, dust collectors, and feeding systems to create a complete petroleum coke grinding plant.

The MTW Trapezium Grinding Mill features a bevel gear transmission, internal lubrication, and a curved blade design that improves grinding efficiency. Its high-efficiency classifier and impulse dust collector help meet environmental requirements. The mill is also easy to operate and maintain, which is valuable for anode producers in Turkey who need reliable continuous production.

How to Choose the Right Petroleum Coke Grinding Mill in Turkey

Selecting the right mill depends on several project parameters: required capacity, target fineness, feed size, moisture content, abrasiveness, available space, and budget. For high-capacity anode material plants, the LM Vertical Grinding Mill is often the best choice because of its integrated drying and grinding functions, high output, and compact layout. For projects with moderate capacity and a need for flexible fineness, the MTW Trapezium Grinding Mill offers excellent performance and lower initial investment. In some plants, a combination of a vertical mill for fine grinding and a ball mill for coarse grinding may also be considered.

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. The company specializes in research, development, and production of industrial powder grinding equipment. Its main products include MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. This broad product range allows Zenith to provide customized solutions for petroleum coke grinding in Turkey.

Conclusion

As Turkey continues to develop its aluminium and carbon anode industries, efficient petroleum coke grinding will remain a key factor in competitive anode production. Anode material producers need grinding systems that deliver consistent fineness, high capacity, low energy consumption, and reliable environmental performance. Shanghai Zenith Machinery offers proven solutions with the LM Vertical Grinding Mill and MTW Trapezium Grinding Mill. These mills can be tailored to Turkish projects, from medium-scale plants to large-scale anode material production lines. With advanced technology, robust construction, and comprehensive service, Shanghai Zenith is a reliable partner for petroleum coke grinding mill projects in Turkey.
