Phosphate milling line for Egypt phosphate processing

Introduction

Egypt has long been a significant producer and exporter of phosphate rock, with vast reserves concentrated in the Nile Valley, the Eastern Desert, and the Western Desert. The phosphate industry is strategically important to the Egyptian economy, supplying raw materials for fertilizer plants, chemical factories, and agricultural producers across the region. As domestic demand for phosphorus-based fertilizers grows and global markets demand finer, more consistent phosphate powders, the need for high-performance phosphate milling lines has never been greater. A well-designed phosphate milling line directly impacts product quality, energy consumption, and operational profitability.

Phosphate Processing Requirements in Egypt

Phosphate rock from Egyptian mines can vary significantly in grade, hardness, moisture content, and impurity profile. In general, phosphate ore has a Mohs hardness of about 3 to 5, which makes it a moderately soft material, but its abrasive and sticky properties can pose challenges in grinding. The rock often requires beneficiation to remove silica, clay, and carbonate gangue. Downstream processes, such as phosphoric acid production by the wet process, demand a fine and uniform particle size, typically below 0.1 mm, while dry phosphate powder for direct application or granulation may require different fineness levels. Therefore, a complete milling line must offer both flexibility in final fineness and robust performance under demanding conditions.

Phosphate Milling Line Design and Equipment Selection

The design of a phosphate milling line involves several stages, from primary crushing to final classification. Each stage must be carefully matched to the ore characteristics and the required production capacity. For Egypt, where both large-scale industrial plants and smaller mines are active, modular and scalable solutions are of great value. Shanghai Zenith Machinery Co., Ltd. offers a comprehensive range of grinding equipment that can be arranged into a complete phosphate milling line tailored to each project’s needs.

Crushing and Feeding

Before phosphate rock can be ground, it must be reduced to a size that the chosen mill can accept. Most Zenith mills have a maximum feed size between 20 mm and 50 mm. Thus, a primary jaw crusher or hammer crusher is usually installed at the beginning of the line to reduce run-of-mine ore to below 30–50 mm. Then, a vibrating feeder with a hopper supplies the mill at a controlled and consistent rate. An efficient feeding system prevents mill overload, stabilizes production, and improves energy efficiency.

Grinding Stage

The grinding stage is the heart of the phosphate milling line. For Egypt’s phosphate processing operations, the MTW Trapezium Grinding Mill from Zenith is an excellent choice. This mill incorporates multiple proprietary technologies and is known for its compact structure, long service life, and environmentally friendly operation. The trapezium-shaped grinding ring and roller design increase grinding efficiency and reduce energy consumption. With a maximum input size of up to 50 mm and final product fineness adjustable from 1.6 mm to 0.038 mm, the MTW mill can meet the demanding particle size requirements of phosphate beneficiation and fertilizer production.

Classification and Collection

After grinding, the powder must be classified to ensure uniform fineness. The MTW Trapezium Mill integrates a high-efficiency dynamic classifier, which can easily adjust the fineness of the finished product. Coarse particles are returned to the grinding chamber for further reduction, while fine powders pass through and enter the collection system. A bag filter or cyclone collector captures the fine phosphate powder, and a fan provides the required airflow. The entire system is under negative pressure, which prevents dust leakage and ensures a clean working environment in Egypt’s often arid and windy regions.

Why Choose Shanghai Zenith Machinery

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. The company specializes in the research, development, and production of industrial powder grinding equipment and related devices. With years of engineering experience and a strong commitment to innovation, Zenith has supplied high-quality grinding mills to more than a hundred countries, including many projects in Africa and the Middle East. Zenith’s main products include the MTW Trapezium Grinding Mill, MTM Medium-Speed Grinding Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, Ball Mill, and Hammer Mill. This complete product portfolio enables Zenith to design a fully integrated phosphate milling line that matches the customer’s capacity, energy, and product quality objectives.

Recommended Equipment for Egypt’s Phosphate Milling Line

Based on the typical requirements of phosphate processing in Egypt, Zenith recommends the MTW Trapezium Grinding Mill as the primary grinding equipment and the Ball Mill as the secondary or wet grinding option. These two machines cover both dry and wet process requirements.

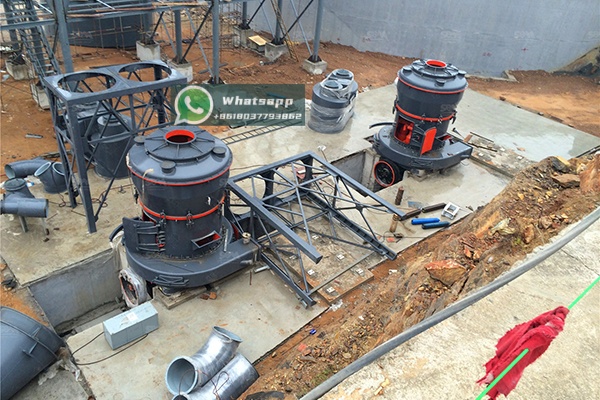

1. MTW Trapezium Grinding Mill

The MTW series is a multi-patented grinding mill designed for high productivity and low operating cost. For a medium-capacity phosphate milling line in Egypt, the MTW175G model is particularly well suited. It can accept feed sizes below 40 mm and produce a final particle size between 1.6 mm and 0.045 mm, with a capacity of 9.5 to 25 t/h. The main motor power is 160 kW, and the fan motor is 200 kW. For smaller deposits or pilot projects, the MTW138Z provides a capacity of 6 to 17 t/h with a feed size below 35 mm. These models are built with highly wear-resistant components, ensuring reliability when grinding abrasive phosphate rock.

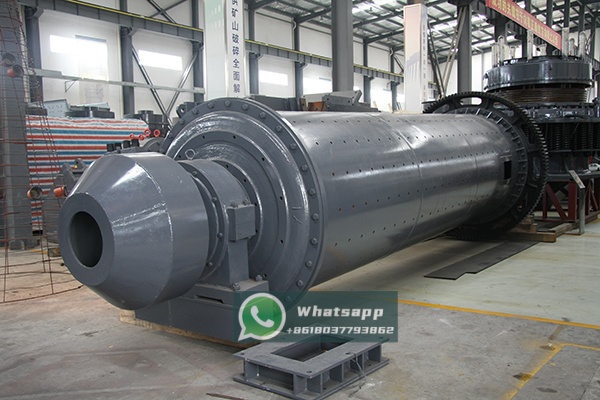

2. Ball Mill for Phosphate Slurry Preparation

In the wet-process route for phosphoric acid and fertilizers, phosphate rock is ground with water to produce a slurry. Zenith’s wet type over-flow Ball Mill is an ideal solution for this application. The GMQY2445 model, for example, has a shell size of 2400×4500 mm, an effective volume of 18.2 m³, and a grinding media weight of 31 tons. It is powered by a 355 kW motor and delivers the capacity performance commonly required by Egyptian phosphate chemical plants. For larger operations, the wet type ball mill Φ2700×4500 offers an output capacity of 12-90 t/h with a motor power of 430 kW. Ball mills are highly adaptable to raw materials and allow easy adjustment of discharge fineness, making them an indispensable part of a complete phosphate processing line.

Conclusion

Egypt’s phosphate processing industry requires robust, energy-efficient, and flexible milling solutions. A well-designed phosphate milling line is the key to turning low-grade ore into high-quality phosphate products. Shanghai Zenith Machinery Co., Ltd. offers the MTW Trapezium Grinding Mill, Ball Mill, and a complete range of supporting equipment to build a customized line for any project size in Egypt. By combining advanced technology, proven reliability, and comprehensive local support, Zenith helps Egyptian producers maximize their operational efficiency and profitability. Whether upgrading an existing plant or constructing a new phosphate milling facility, Zenith provides the equipment, expertise, and service needed to succeed in the competitive phosphate market.
