Bentonite milling line for Vietnam coating applications

Introduction: Vietnam’s Growing Coating Industry and the Role of Bentonite

Vietnam has emerged as a dynamic manufacturing hub in Southeast Asia, with its coating and paint industry experiencing rapid growth driven by construction, automotive, and industrial sectors. Bentonite, a versatile clay mineral, plays a critical role in water-based and solvent-based coatings as a thickening agent, suspending agent, and rheology modifier. To meet the stringent quality requirements of modern coating formulations—such as fine particle size, high purity, and consistent viscosity—a dedicated bentonite milling line is essential. Shanghai Zenith Machinery Co., Ltd., a leading Chinese manufacturer of ore grinding equipment, offers advanced solutions tailored for the Vietnamese coating market, ensuring high efficiency, low energy consumption, and superior product fineness.

Understanding Bentonite for Coatings

Bentonite is primarily composed of montmorillonite, a layered silicate that swells in water. In coating applications, bentonite is typically processed into a fine powder (325–1250 mesh, equivalent to 45–10 microns) to enhance dispersion and compatibility. Key parameters for coating-grade bentonite include:

• Fineness: D97 ≤ 45 μm (325 mesh) for standard products, and D97 ≤ 10 μm for high-performance grades.
• Moisture content: Below 6% to prevent agglomeration.
• Whiteness: High brightness (>80%) to avoid color interference.
• Particle shape: Plate-like structure for better thickening effect.

Vietnam’s local bentonite resources, mainly found in Binh Thuan and Lam Dong provinces, often require beneficiation and grinding to achieve these specifications. A well-designed milling line not only improves product quality but also reduces production costs, making it a worthwhile investment for coating manufacturers.

Process Overview of a Bentonite Milling Line

A typical bentonite milling line for coating applications includes the following stages:

1. Crushing: Run-of-mine bentonite (max 500–800 mm) is crushed by a jaw crusher to below 30–50 mm.
2. Drying: If the raw material moisture exceeds 10%, a rotary dryer is used to reduce it to <6%.
3. Grinding: The crushed bentonite is fed into a mill for size reduction. This is the core step, where fineness and throughput are determined.
4. Classification: A classifier or vibrating screen separates the product; oversize particles are returned for regrinding.
5. Packaging: The final powder is collected by a bag filter and packed in 25–50 kg bags or bulk containers.

Key Equipment Selection: Why Zenith Grinding Mills Excel

Based on decades of experience in ultra-fine powder grinding, Shanghai Zenith Machinery offers several mill types suitable for bentonite processing. For the Vietnamese coating sector, we highly recommend two models: the MTW Trapezium Grinding Mill and the LUM Ultrafine Vertical Mill. Both have proven track records in bentonite grinding across Asia and beyond.

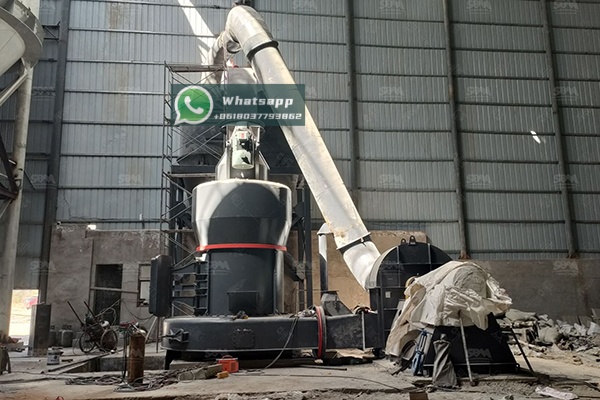

1. MTW Trapezium Grinding Mill – Reliable Workhorse for Standard Fineness

The MTW series is an eco-friendly, compact mill with multiple patents. Its trapezoidal grinding roller and ring design improve grinding efficiency by 30% compared to traditional Raymond mills. It can produce bentonite powder with a fineness of 1.6–0.038 mm (10–400 mesh), making it ideal for standard coating grades (325 mesh). Key parameters for the MTW175G model:

• Max feed size: 40 mm
• Final size: 1.6–0.045 mm (10–325 mesh)
• Capacity: 9.5–25 t/h
• Main motor: 160 kW
• Fan motor: 200 kW

The MTW mill features a self-lubricating system, PLC control, and a pulse bag filter for clean operation. For a Vietnamese client requiring 15 t/h of 325-mesh bentonite, a single MTW175G unit with a pre-crusher and dryer would constitute a complete milling line with low operational cost.

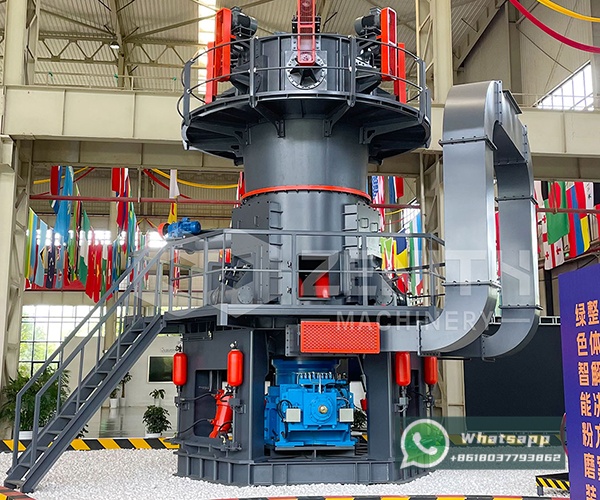

2. LUM Ultrafine Vertical Mill – Premium Solution for High-End Coatings

When the coating formulation demands ultra-fine powder (D97 < 10 μm, i.e., >1250 mesh), the LUM series is the optimal choice. This vertical roller mill integrates grinding, classification, and drying in one unit, occupying only 50% of the floor area of a ball mill system. It uses a hydro-pneumatic system for consistent grinding pressure and an efficient classifier to achieve sharp particle size distribution. For bentonite coating applications, the LUM1525 model is often selected:

• Main machine power: 220–250 kW
• Capacity: 1.6–11.5 t/h
• Size distribution D97: 5–30 μm (adjustable)

The LUM mill can process bentonite with a feed moisture up to 10% without an external dryer, thanks to hot air circulation. Its intelligent control system minimizes downtime. For a high-end Vietnamese paint manufacturer aiming to produce 5 t/h of 1250-mesh bentonite, the LUM1525 delivers excellent product quality and energy savings.

Comprehensive Solution for Vietnam Coating Industry

Beyond the mills themselves, Shanghai Zenith Machinery provides complete turnkey bentonite milling lines, including feeders, crushers, dryers, elevators, air classifiers, and bag filters. Our team can design a customized layout based on the client’s raw material characteristics, site conditions, and target fineness. For instance, a typical 10 t/h line for 325-mesh coating bentonite might consist of a jaw crusher (PE400×600), a rotary dryer (Φ1.5×12 m), and an MTW138Z mill, with total installed power around 350 kW and annual output of 60,000 tons.

Why Choose Shanghai Zenith for Your Bentonite Milling Line?

• Proven expertise: Over 30 years in powder grinding equipment, with thousands of installations worldwide.
• Product diversity: From Raymond mills to vertical ultrafine mills, covering fineness from 10 mesh to 2500 mesh.
• Energy efficiency: Zenith mills can reduce energy consumption by 20–40% compared to traditional ball mills.
• After-sales support: Comprehensive services including site planning, installation, training, and spare parts supply.

Conclusion

Vietnam’s coating market is expanding rapidly, and high-quality bentonite powder is a key raw material. By partnering with Shanghai Zenith Machinery, coating manufacturers can establish a reliable and efficient milling line that meets both current and future demands. Whether you need a standard 325-mesh product with the MTW Trapezium Grinding Mill or an ultra-fine 1250-mesh powder with the LUM Ultrafine Vertical Mill, Zenith offers the technology and experience to deliver. Contact us today for a customized solution and start producing premium bentonite for the Vietnamese coating industry.
