Cement Clinker Grinding Mill for Pakistan Concrete Products

Pakistan’s construction and infrastructure sector has been experiencing robust growth over the past decade, driven by the China-Pakistan Economic Corridor (CPEC) and increasing urbanization. This surge directly fuels the demand for high-quality concrete products, which in turn rely heavily on superior cement. At the heart of cement production lies the critical process of clinker grinding, where cement clinker is finely milled together with gypsum and other additives to produce the final cement powder. The efficiency and performance of the grinding mill used in this stage directly impact the quality, cost, and output of the entire cement plant. For concrete product manufacturers in Pakistan, selecting the right cement clinker grinding mill is not just an operational decision—it is a strategic investment that determines competitiveness in a rapidly evolving market.

Cement clinker is a nodular material produced by heating limestone and clay at high temperatures in a kiln. Its hardness and abrasiveness make it a challenging material to grind. The grinding process consumes a significant portion of the total energy required for cement production—often exceeding 60% of the plant’s electrical power. Therefore, a grinding mill that offers high throughput, low energy consumption, and precise particle size distribution is essential. In Pakistan, where energy costs are a major concern and quality standards are constantly rising, modern grinding solutions that combine efficiency with reliability are highly sought after.

Shanghai Zenith Machinery Co., Ltd. has established itself as an excellent manufacturer of ore grinding equipment in China, with remarkable achievements in the field of ultra-fine powder grinding. With decades of experience in research, development, and production of industrial powder grinding equipment, Zenith offers a comprehensive portfolio of mills that are well-suited for cement clinker grinding applications. Their machines are designed to handle the toughest raw materials while delivering consistent product quality, lower operational costs, and environmental compliance. For Pakistani concrete product manufacturers, Zenith’s mills represent a perfect balance of advanced technology and proven performance.

Key Considerations for Choosing a Cement Clinker Grinding Mill

Before diving into specific product recommendations, it is important to understand the critical factors that influence mill selection for Pakistani cement and concrete producers:

• Capacity Requirements: Pakistan’s cement plants range from small-scale units producing 100 tpd to large integrated plants exceeding 10,000 tpd. The mill must match the plant’s output target. Zenith offers mills with capacities from a few tons per hour up to 170 t/h, covering the full spectrum.
• Product Fineness: Concrete products require cement with a specific Blaine surface area (typically 3000–4000 cm²/g for ordinary Portland cement). The mill must be capable of achieving the target fineness while minimizing over-grinding and energy waste.
• Energy Efficiency: With electricity tariffs in Pakistan among the highest in the region, energy-efficient mills provide immediate cost savings. Modern vertical roller mills and advanced trapezium mills can reduce power consumption by 30–40% compared to traditional ball mills.
• Moisture Content: Clinker entering the mill is typically hot and dry, but additives like gypsum may contain moisture. Mills with integrated drying capabilities (such as vertical mills) are advantageous in humid coastal areas of Pakistan like Karachi.
• Maintenance and Spare Parts: Ease of maintenance and availability of wear parts are crucial for minimizing downtime. Zenith’s global network ensures rapid supply of components to Pakistan.

Zenith MTW Trapezium Grinding Mill – A Proven Performer for Medium Capacities

The MTW Trapezium Grinding Mill is one of Zenith’s flagship products, featuring multiple patented technologies. It is ideal for cement clinker grinding in medium-sized concrete product plants where consistent quality and low operational cost are paramount. Key advantages of the MTW mill include:

• Compact and Sturdy Structure: The integral shaft drive and bevel gear transmission system ensure smooth operation and reduce vibration, making it suitable for continuous 24/7 operation.
• High Grinding Efficiency: The trapezium-shaped grinding rollers and rings create a uniform material bed, resulting in a finer product with narrower particle size distribution. This directly improves the strength and workability of concrete.
• Eco-Friendly Design: The mill is equipped with a pulse dust collector and noise-reduction system, meeting Pakistan’s environmental regulations for cement plants.
• Flexible Fineness Control: The final product size can be adjusted from 1.6 mm down to 0.038 mm (400 mesh), covering the full range of cement fineness requirements.

For a typical Pakistani concrete product plant producing 50,000–100,000 tons of cement per year, the MTW138Z or MTW175G model would be an excellent choice. With feed size up to 35–40 mm and capacity ranging from 6 to 25 t/h, these models can efficiently handle clinker grinding while keeping power consumption between 90–160 kW for the main motor. The following table illustrates the key parameters:

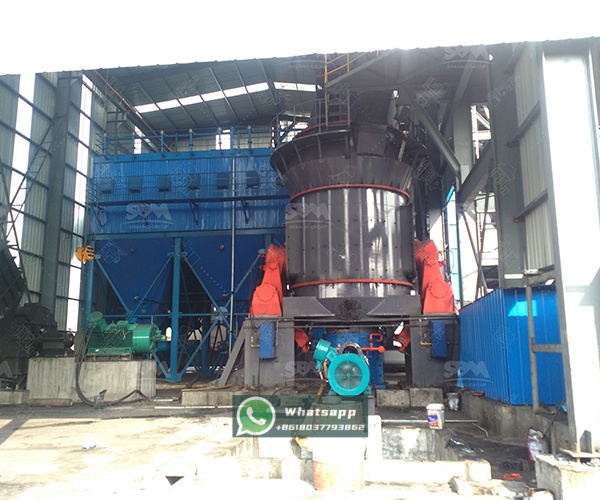

Zenith LM Vertical Grinding Mill – High-Capacity Solution for Large Concrete Product Plants

For larger cement and concrete product operations in Pakistan—such as integrated plants serving major infrastructure projects—the LM Vertical Grinding Mill offers unmatched advantages. This mill integrates crushing, grinding, drying, and material conveying into a single unit, dramatically reducing the plant footprint and simplifying the process flow. Its key features include:

• Multi-Function Integration: The LM vertical mill can handle clinker with up to 5% moisture without an external dryer, thanks to its hot air sweeping system. This is particularly beneficial in Pakistan’s coastal or monsoon-affected regions.
• High Capacity and Efficiency: The LM190K model, for example, delivers 23–68 t/h with a main motor of only 500 kW—an energy saving of nearly 40% compared to a traditional ball mill of similar capacity.
• Superior Product Quality: Due to the vertical grinding principle, the cement produced has a more uniform particle size distribution and higher specific surface area, leading to enhanced concrete strength and durability.
• Ease of Operation: The intelligent control system allows automatic start-up, stop, and adjustment of parameters. Remote monitoring capability is also available, which is ideal for plants with limited on-site technical staff.

The LM series is available in different models tailored for mineral, coal, slag, and fine powder applications. For cement clinker grinding, the LM130K (10–28 t/h) and LM190K (23–68 t/h) are the most popular choices in mid-to-large scale Pakistani plants. The following parameters highlight their capabilities:

Why Zenith Mills Are Ideal for Pakistan’s Concrete Products Market

Pakistan’s concrete products industry—producing blocks, pipes, precast elements, and ready-mix concrete—demands cement with consistent strength, setting time, and workability. The grinding mill directly influences these properties. Zenith’s MTW and LM mills have been deployed in numerous cement plants across Asia, Africa, and the Middle East, and their proven track record makes them a safe choice for Pakistani investors.

Furthermore, Zenith provides comprehensive after-sales support, including installation supervision, operator training, and a reliable supply of wear parts through its regional service centers. With Pakistan’s cement production expected to exceed 80 million tons annually by 2030, the need for modern, energy-efficient grinding technology has never been greater. By investing in Zenith’s advanced mills, Pakistani concrete product manufacturers can achieve higher profitability, lower carbon footprint, and compliance with international quality standards.

Conclusion

Selecting the right cement clinker grinding mill is a cornerstone of success for any concrete products business in Pakistan. Shanghai Zenith Machinery Co., Ltd. offers state-of-the-art solutions that combine high efficiency, robust construction, and low operating costs. Whether you need the versatile MTW Trapezium Grinding Mill for medium capacity or the high-performance LM Vertical Grinding Mill for large-scale operations, Zenith has the technology and expertise to drive your business forward. Contact Zenith today to discuss your specific requirements and discover how their grinding mills can transform your cement and concrete production.
