Feldspar grinding mill for glass production in Turkey

Feldspar Grinding Mill for Glass Production in Turkey

Turkey is one of the leading producers of glass and glass products in Europe and the Middle East, thanks to its abundant mineral resources, strategic location, and robust industrial infrastructure. Among the key raw materials for glass manufacturing, feldspar plays an essential role. It acts as a flux, lowering the melting temperature of silica and reducing energy consumption during glass melting. Additionally, feldspar supplies alumina, which improves the chemical durability and mechanical strength of the final glass product. As Turkish glass producers continue to expand their capacities, the demand for high-quality feldspar powder has grown significantly. This has created a strong need for efficient, reliable, and energy-saving feldspar grinding mills that can deliver consistent particle size distributions.

The Role of Feldspar in Glass Manufacturing

Feldspar is an aluminosilicate mineral that constitutes about 60% of the Earth’s crust. In glass production, it is primarily used as a fluxing agent. By introducing feldspar into the glass batch, manufacturers can lower the melting point of the batch, thereby saving fuel and extending the life of furnace refractories. Moreover, the alumina content in feldspar enhances the glass’s resistance to thermal shock and chemical attack. For these reasons, the particle size of feldspar powder is critical. If the powder is too coarse, the melting reaction becomes incomplete; if it is too fine, it may cause dusting and segregation issues. Typically, glass-grade feldspar is ground to 200 mesh (0.074 mm) or 325 mesh (0.045 mm), with iron content strictly controlled to avoid coloration of the glass.

Key Requirements for Feldspar Powder in Glass Production

Turkish glass manufacturers require feldspar powder that meets several technical specifications. First, the fineness must be consistent, with a narrow particle size distribution. Second, the iron content should be as low as possible, ideally below 0.1% Fe2O3, to maintain high light transmittance in float glass and container glass. Third, the powder must be free of contaminants and have low moisture content. Fourth, the grinding process should be cost-effective, with low energy consumption and minimal maintenance. Finally, environmental regulations in Turkey demand that grinding operations comply with dust emission and noise standards. Therefore, selecting the right grinding mill is a strategic decision for any glass producer.

Choosing the Right Grinding Mill for Feldspar in Turkey

When selecting a feldspar grinding mill, several factors must be considered: capacity, final fineness, energy efficiency, automation level, and environmental footprint. Turkey has abundant feldspar deposits, particularly in the western regions such as Aydın, Muğla, and Balıkesir. However, the hardness of feldspar (Mohs 6–6.5) and its abrasive nature can cause wear on grinding components. Therefore, mills with durable grinding elements and advanced classification systems are preferred. In addition, the mill should be able to handle feed sizes up to 50 mm and produce fineness ranging from 0.045 mm to 0.5 mm, depending on the specific glass application. For large-scale glass plants, high-capacity vertical mills are often the best choice, while medium-sized plants may opt for trapezium mills.

Recommended Equipment from Shanghai Zenith

Shanghai Zenith Machinery Co., Ltd. is a leading manufacturer of ore grinding equipment in China, with extensive experience in ultra-fine powder grinding. The company specializes in the research, development, and production of industrial powder grinding equipment. Its product portfolio includes MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. For feldspar grinding in Turkish glass production, two products stand out: the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill.

MTW Trapezium Grinding Mill

The MTW Trapezium Grinding Mill is a patented product known for its compact structure, long service life, and eco-friendly design. It is suitable for processing materials with a maximum input size of 50 mm and can produce a final product as fine as 0.038 mm. This mill is ideal for medium to large-scale feldspar grinding plants. Its advanced curved blade design and high-efficiency classifier ensure uniform particle size and high yield. The MTW series includes several models: MTW110, MTW110Z, MTW138Z, MTW175G, and MTW215G. For a typical glass plant in Turkey with a capacity of 10–20 t/h, the MTW138Z or MTW175G is an excellent choice. The MTW138Z has a max feed size of 35 mm, final size of 1.6–0.045 mm, capacity of 6–17 t/h, and a main motor of 90 kW. The MTW175G offers a capacity of 9.5–25 t/h with a main motor of 160 kW. Both models feature low noise, low dust emission, and easy maintenance, making them compliant with Turkish environmental standards.

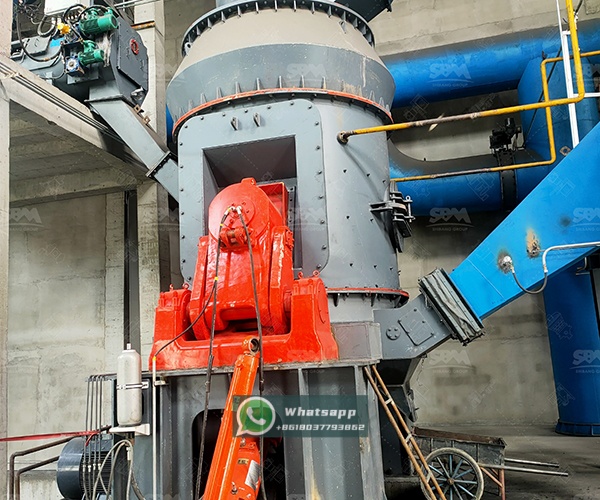

LM Vertical Grinding Mill

The LM Vertical Grinding Mill integrates five functions—crushing, grinding, powder selection, drying, and material conveying—into a single machine. It offers a small occupational area, produces fine final powder, and is an eco-friendly production solution. The LM series is particularly suitable for large-scale glass production lines that require high throughput and consistent quality. The vertical mineral mill series includes models such as LM130K, LM190K, and LM280K. For a large Turkish glass manufacturer with a capacity of 30–70 t/h, the LM190K is highly recommended. It has a plate diameter of 1900 mm, capacity of 23–68 t/h, output fineness of 170–40 μm, max feed size of 45 mm, and a main motor of 500 kW. The LM280K can achieve 50–170 t/h, making it ideal for mega glass plants. The LM Vertical Mill features a grinding roller that directly grinds the material on the disc, resulting in low energy consumption and high grinding efficiency. Its integrated drying system can handle feldspar with moderate moisture content, eliminating the need for a separate dryer. Moreover, the mill operates under negative pressure, ensuring a dust-free working environment.

Technical Advantages for Turkish Glass Producers

By choosing Shanghai Zenith’s grinding mills, Turkish glass producers can benefit from several technical advantages. First, both the MTW and LM mills are designed with wear-resistant materials, extending the service life of grinding rollers and rings. This reduces downtime and maintenance costs. Second, the advanced classification system ensures precise control of the final particle size, which is crucial for consistent glass melting. Third, the mills are equipped with intelligent control systems that allow remote monitoring and adjustment, improving operational efficiency. Fourth, the energy consumption per ton of product is significantly lower than traditional ball mills, reducing production costs. Fifth, the compact design and low noise levels make them suitable for installation in urban or semi-urban areas. Finally, Shanghai Zenith provides comprehensive after-sales support, including installation, commissioning, training, and spare parts supply, ensuring smooth operation in Turkey.

Conclusion

As Turkey’s glass industry continues to grow, the demand for high-quality feldspar powder will only increase. Selecting the right grinding mill is essential to achieve consistent product quality, low operating costs, and environmental compliance. Shanghai Zenith Machinery Co., Ltd. offers proven solutions with its MTW Trapezium Grinding Mill and LM Vertical Grinding Mill. Both products are engineered for high performance, reliability, and energy efficiency, making them ideal choices for feldspar grinding in Turkish glass production. For more information on how these mills can be customized to your specific needs, please contact our technical team. We are committed to supporting Turkey’s glass industry with advanced grinding technology and exceptional service.
