Heavy Calcium Carbonate Mill for High Brightness Filler in Saudi Arabia
Saudi Arabia is witnessing strong demand for high brightness heavy calcium carbonate (GCC) filler across paints, coatings, plastics, PVC, paper, sealants, and construction materials. As the Kingdom accelerates industrial diversification under Vision 2030, local manufacturers are seeking reliable grinding solutions that can convert limestone, marble, and calcite into fine, bright, and chemically stable fillers. Heavy calcium carbonate, also known as ground calcium carbonate, is produced by mechanically grinding natural calcium carbonate minerals. For high brightness filler applications, the mill must deliver not only fine particles but also consistent particle size distribution, low iron contamination, and high whiteness.
Why High Brightness GCC Filler Is Important in Saudi Arabia
High brightness GCC is a cost-effective functional filler. In paints and coatings, it improves opacity, gloss, and weather resistance while reducing titanium dioxide demand. In plastics and PVC, it enhances stiffness, impact strength, and dimensional stability. In paper, it improves printability and brightness. Saudi Arabia’s construction boom, growing automotive and packaging sectors, and expanding paint manufacturing base are driving demand for locally produced GCC. Using local limestone and marble reduces import dependency and logistics costs. However, not all GCC can be used as high brightness filler. The raw material and processing equipment must be carefully selected.
Key Quality Requirements for High Brightness Heavy Calcium Carbonate
- Brightness and whiteness: ISO brightness above 94%, L* value above 96, and low yellowness index are typical for premium filler.
- Chemical purity: CaCO3 content of 98% or higher, with low Fe2O3, SiO2, and MgO. Iron content is critical because it affects brightness and color.
- Particle size distribution: D97 between 5 and 45 μm depending on end use. Paints often require D97 10–20 μm, plastics 5–15 μm, and paper 2–10 μm.
- Moisture and oil absorption: Low moisture, usually below 0.2%, and controlled oil absorption for good dispersion.
- Dispersion and surface treatment: Stearic acid or silane coating may be required for plastic and rubber applications.
To meet these requirements, the grinding circuit should include efficient classification, dust collection, and iron removal. Overgrinding should be minimized because it wastes energy and can reduce brightness through contamination.
Processing Flow for Heavy Calcium Carbonate Filler
A typical GCC filler plant includes crushing, grinding, classification, iron removal, optional surface coating, and packaging. Dry processing is preferred in Saudi Arabia because water is scarce and dry ultrafine grinding produces free-flowing powders. Jaw or hammer crushers reduce limestone or marble to below 30–50 mm. The material is then fed to a grinding mill. An air classifier separates fine product from coarse particles, which are returned to the mill. Magnetic separators remove iron particles introduced during crushing and grinding. Finally, the product is stored and packed in bags or bulk trucks.
Recommended Equipment from Shanghai Zenith Machinery Co., Ltd.
Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. The company specializes in research, development, and production of industrial powder grinding equipment. Its main products include MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. For high brightness GCC filler in Saudi Arabia, two products are particularly suitable: the MTW Trapezium Grinding Mill and the LUM Ultrafine Vertical Mill.

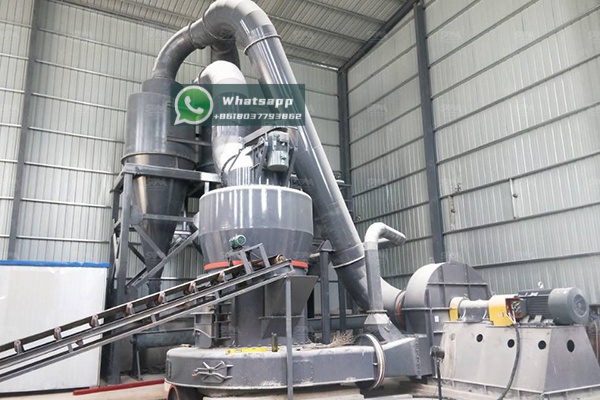

1. MTW Trapezium Grinding Mill: Efficient Fine Grinding for GCC Filler
The MTW Trapezium Grinding Mill is a patented, compact, and eco-friendly mill. It is designed for materials with a maximum input size of 50 mm and can produce final products as fine as 0.038 mm. It is ideal for producing 200–400 mesh heavy calcium carbonate filler for paints, plastics, PVC, and construction applications. The mill features a curved shovel, bevel gear transmission, high-efficiency classifier, and pulse dust collector. These features ensure stable operation, low noise, low dust emission, and uniform particle size distribution. For Saudi GCC plants, models such as MTW175G and MTW215G offer high capacity and reliable performance.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 | 110 |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 | 200 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 | 315 |
With MTW, Saudi producers can achieve high throughput and consistent quality while keeping energy consumption under control. The mill can be integrated with classifiers and dust collectors to protect product brightness.

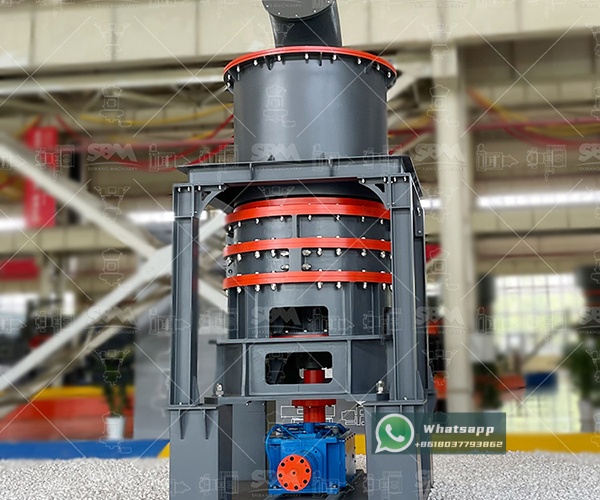

2. LUM Ultrafine Vertical Mill: Premium Ultrafine High Brightness Filler
For premium applications requiring ultrafine GCC, the LUM Ultrafine Vertical Mill is an excellent choice. It integrates grinding, drying, classifying, and transportation in one compact unit. The LUM mill is designed to produce products with a high content of end-fines, and its intelligent control system makes operation and maintenance easier. It can achieve a size distribution D97 of 5–30 μm, which is suitable for high brightness filler used in high-grade paints, paper, sealants, and masterbatch. Models LUM1525, LUM1632, and LUM1836 cover capacities from 1.6 to 15 t/h.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The LUM mill’s vertical grinding principle and high-efficiency classifier reduce overgrinding and ensure a narrow particle size distribution. This helps maintain high brightness and improves dispersion in final products. For Saudi manufacturers targeting premium GCC filler, LUM is a strong investment.
How to Choose the Right Mill for Saudi GCC Projects
Selecting the right mill depends on target fineness, capacity, raw material, and budget. For 200–400 mesh filler with high capacity, the MTW Trapezium Grinding Mill is a practical and cost-effective solution. For ultrafine D97 5–30 μm filler, the LUM Ultrafine Vertical Mill offers superior product quality and efficient drying. Saudi Arabia’s hot climate and dusty environment require robust equipment, efficient dust collection, and reliable cooling. Zenith mills are designed for continuous operation and can be customized with automatic control, magnetic separation, and coating systems.
Conclusion
High brightness heavy calcium carbonate filler is a growing opportunity in Saudi Arabia. With the right grinding technology, local limestone and marble can be transformed into valuable filler for paints, plastics, paper, and sealants. Shanghai Zenith Machinery Co., Ltd. provides proven solutions such as the MTW Trapezium Grinding Mill and LUM Ultrafine Vertical Mill. These mills combine high efficiency, precise classification, and environmental performance. For Saudi investors and manufacturers, choosing Zenith means choosing reliable equipment and professional support for high brightness GCC production.
