Calcite milling line for Turkey paint additives

Introduction: The Growing Role of Calcite in Turkish Paint Additives

Calcite, a naturally occurring form of calcium carbonate, has become an indispensable raw material in the production of paints and coatings. In Turkey, where the paint industry continues to expand toward higher quality and more sustainable products, the demand for fine and ultra-fine calcite powder has never been greater. Paint producers use calcite as an extender and functional filler to improve whiteness, opacity, scrub resistance, and durability, while reducing overall formulation cost. To meet these requirements, a dedicated, reliable, and efficient calcite milling line is essential. Shanghai Zenith Machinery Co., Ltd. has established itself as an excellent manufacturer of ore grinding equipment in China, delivering advanced milling solutions that are perfectly suited for calcite processing in Turkey.

Key Requirements for Calcite Used in Paint Additives

Not every calcite powder is suitable for paint additives. Paint-grade calcite must meet several stringent criteria to perform effectively as a filler or extender in coating formulations.

• High fineness: Paint-grade calcite generally requires a particle size from 325 mesh to 2500 mesh, while premium paint additives call for ultra-fine powder with D97 of 5 to 30 microns.
• Narrow particle distribution: Consistent particle size is critical for smooth paint application, hiding power, and gloss control.
• High whiteness and brightness: Calcite should improve the optical properties of the paint without discoloring it.
• Low moisture content: Moisture must be kept below 6% to prevent agglomeration and ensure easy dispersion.
• High production efficiency: Turkish paint makers need continuous operation, low energy consumption, and minimal downtime.

Shanghai Zenith’s Integrated Calcite Milling Solution

Shanghai Zenith Machinery Co., Ltd. specializes in the research, development, and production of industrial powder grinding equipment and related devices. For a complete calcite milling line, Zenith offers a range of products, from primary crushing and grinding to ultra-fine classification. The most relevant milling units for Turkish paint additives are the MTW Trapezium Grinding Mill, LUM Ultrafine Vertical Mill, and XZM Ultrafine Grinding Mill.

MTW Trapezium Grinding Mill for Preliminary Grinding

The MTW Trapezium Grinding Mill is a multi-patented grinding mill with compact structure, long service life, and eco-friendly design. It can accept a maximum feed size up to 50 mm and produce a final product as fine as 0.038 mm, which makes it an ideal first-stage grinder before ultra-fine processing. For example, the MTW175G mill has a feed size below 40 mm and a capacity of 9.5-25 t/h with a main motor power of 160 kW. The MTW215G model handles feed up to 50 mm and reaches capacities of 15-45 t/h. These units help reduce the ore to a manageable size and supply continuous, stable feed to downstream ultra-fine mills.

LUM Ultrafine Vertical Mill for Premium Paint Additives

For high-end paint additives in Turkey, the LUM Ultrafine Vertical Mill is one of Zenith’s most advanced recommendations. It integrates grinding, drying, classifying, and transportation in one compact unit, occupying minimal floor space. The intelligent control system makes operation and maintenance easier while ensuring a high content of end-fines in the final product.

The LUM series is available in several sizes. The LUM1525 with a main machine power of 220-250 kW can produce 1.6-11.5 t/h of ultra-fine calcite with D97 of 5-30 microns. For larger operations, the LUM1632 uses 280-315 kW and delivers 2.0-13.5 t/h, while the LUM1836 uses 355-400 kW for 2.3-15 t/h. These figures prove that the LUM family can satisfy a wide range of capacities without sacrificing product quality.

XZM Ultrafine Grinding Mill for High-Mesh Calcite

Another excellent option for Turkish calcite processors is the XZM Ultrafine Grinding Mill. This mill is widely used for superfine powder production and is especially suitable for soft or medium-hard materials with moisture content below 6%. It can achieve a final fineness of 325-2500 mesh, covering the typical requirement of paint-grade fillers.

The XZM221 model has a working diameter of 800 mm and a maximum feed size of 20 mm. It can produce 500-4500 kg/h with a main motor power of 75 kW. The larger XZM268 model uses a working diameter of 1680 mm, produces 5000-25000 kg/h, and is powered by a 315 kW main motor. This flexibility allows producers to select the right machine according to their project scale.

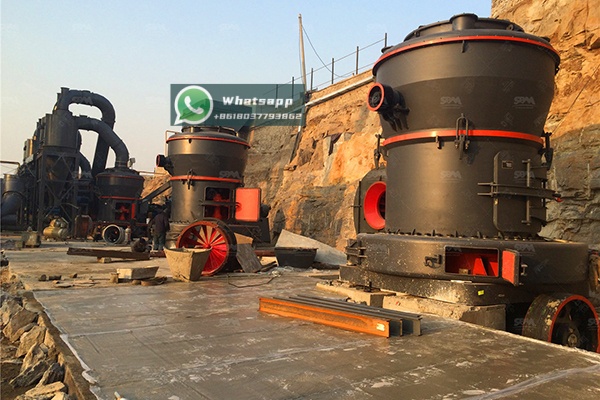

Recommended Zenith Products for Turkey’s Calcite Milling Line

After careful evaluation of Turkish paint additive needs, Shanghai Zenith recommends two configurations. For medium to large-scale operations requiring premium ultra-fine calcite, the LUM1632 Ultrafine Vertical Mill is the ideal core machine. It offers a capacity of 2.0-13.5 t/h, D97 of 5-30 microns, and intelligent automation. For producers who need a smaller, highly flexible unit to produce 325-2500 mesh calcite, the XZM221 Ultrafine Grinding Mill is a proven solution with a capacity of 500-4500 kg/h. Both mills are manufactured with high-quality materials and backed by Zenith’s extensive experience in powder processing.

Technological and Economic Advantages for Turkish Paint Manufacturers

Choosing Zenith milling equipment brings several clear advantages. First, the machines are designed to minimize energy consumption per ton of product, which is critical in a competitive market. Second, the grinding and classifying systems are fully integrated, simplifying the process flow and reducing civil engineering costs. Third, Zenith’s mills are known for stable operation and low maintenance, enabling continuous production with minimal stoppage. Finally, the high fineness and consistent particle distribution of the calcite produced by these mills help Turkish paint producers achieve superior product quality and stronger market competitiveness.

Conclusion

As Turkey’s paint industry grows and evolves, the demand for high-quality calcite additives will continue to rise. A modern calcite milling line from Shanghai Zenith Machinery offers the perfect combination of advanced technology, high efficiency, and product excellence. By selecting the LUM Ultrafine Vertical Mill or XZM Ultrafine Grinding Mill, Turkish processors can confidently meet the strict requirements of paint additives and succeed in a dynamic global market.
