Dolomite mill for agriculture lime production in India

Dolomite Mill for Agriculture Lime Production in India

India has one of the largest agricultural economies in the world, and soil acidity is a major constraint in many states, including Kerala, Karnataka, Odisha, Jharkhand, West Bengal, Assam, and other parts of the Northeast. Acidic soils reduce the availability of phosphorus and molybdenum, increase the solubility of aluminum and manganese, and limit root development and microbial activity. Agricultural lime is therefore widely used to neutralize soil acidity and improve crop productivity. Dolomite, a natural calcium magnesium carbonate, is an excellent raw material for agricultural lime because it corrects pH while supplying both calcium and magnesium. To convert dolomite rock into a reactive and economical agricultural lime product, efficient grinding is essential. Shanghai Zenith Machinery Co., Ltd. offers advanced dolomite grinding mills that are well suited to agricultural lime production in India.

Why Dolomite Is Important for Agricultural Lime in India

Dolomite is composed mainly of calcium magnesium carbonate, CaMg(CO3)2. When finely ground and applied to soil, it neutralizes hydrogen ions and raises soil pH. Unlike pure limestone, dolomite also provides magnesium, an essential nutrient for chlorophyll formation, enzyme activation, and carbohydrate metabolism. In India, magnesium deficiency is common in sandy, acidic, and intensively cultivated soils, especially in tea, coffee, rubber, coconut, arecanut, pulses, oilseeds, and vegetable growing regions. Dolomite lime can improve soil structure, increase cation exchange capacity, enhance phosphorus availability, and support beneficial soil microorganisms. For these reasons, dolomite agricultural lime is an important soil amendment for sustainable Indian agriculture.

However, the effectiveness of dolomite lime depends strongly on particle size. Coarse particles react slowly, while fine particles react quickly and neutralize acidity within a shorter period. Most agricultural lime specifications require a high proportion of material passing 100 mesh, with some markets demanding 200 mesh or finer. This fineness requirement makes the choice of grinding equipment critical. A dolomite mill must deliver consistent product fineness, high capacity, low energy consumption, and reliable operation under abrasive conditions.

Key Requirements for Dolomite Grinding in Agricultural Lime Production

• Feed size: after primary and secondary crushing, the mill feed should usually be below 30 to 50 mm.
• Final fineness: adjustable from about 40 to 170 micrometers, corresponding to roughly 100 to 325 mesh, depending on state and market specifications.
• Capacity: from 3 t/h for small plants to more than 100 t/h for large commercial lime projects.
• Moisture handling: dry grinding is preferred, but if raw dolomite contains surface moisture, integrated drying can improve efficiency.
• Wear protection: dolomite is abrasive, so grinding rollers, rings, and liners must use high-quality wear-resistant materials.
• Dust control: enclosed negative-pressure operation and pulse bag filters are necessary for environmental compliance and worker safety.
• Energy efficiency: electricity is a major operating cost, so mills with low specific power consumption are preferred.

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. The company specializes in the research, development, and production of industrial powder grinding equipment and related devices. Its main products include the MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. For dolomite agricultural lime production in India, two products are especially recommended: the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill.

Recommended Product 1: MTW Trapezium Grinding Mill

The MTW Trapezium Grinding Mill is a patented grinding mill known for its compact structure, long service life, and eco-friendly design. It is suitable for processing materials with a maximum input size of 50 mm and can produce a final product as fine as 0.038 mm. For agricultural lime, the MTW mill can be adjusted to produce dolomite powder in the 0.045 to 0.15 mm range, which covers common 100 to 325 mesh requirements. Its capacity range is flexible, from 3 t/h to 45 t/h, making it suitable for small, medium, and expanding lime production businesses in India.

MTW Trapezium Grinding Mill Technical Parameters

For a typical medium-scale dolomite agricultural lime plant in India, the MTW175G or MTW215G is a strong choice. The MTW215G can process up to 45 t/h and still deliver fine powder suitable for rapid soil reaction. The mill uses a bevel gear transmission, curved blade classifier, and wear-resistant grinding rollers, which help reduce downtime and maintain stable product quality. Its compact layout also reduces civil construction costs, an important advantage for projects with limited land or budget.

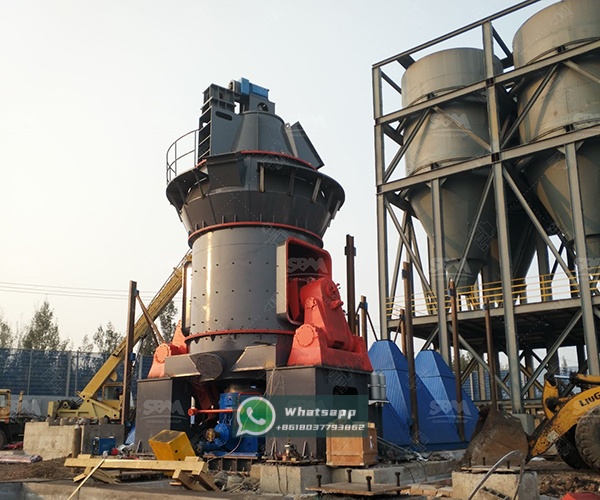

Recommended Product 2: LM Vertical Grinding Mill

The LM Vertical Grinding Mill integrates five functions: crushing, grinding, powder selection, drying, and material conveying. It occupies a small area, produces a fine final powder, and is an eco-friendly production solution. For large dolomite lime projects in India, the LM Vertical Grinding Mill offers high capacity and low specific energy consumption. The Vertical Mineral Mill Series includes models such as LM130K, LM190K, and LM280K. These models can produce output fineness between 170 and 40 micrometers, with capacities from 10 t/h to 170 t/h. This makes the LM series ideal for commercial agricultural lime plants supplying large agricultural regions.

LM Vertical Mineral Mill Technical Parameters

For an India-based agricultural lime producer targeting more than 50 t/h, the LM280K is highly recommended. With a 2800 mm grinding plate and a main motor of 1250 kW, it can deliver 50 to 170 t/h of dolomite powder at 170 to 45 micrometers. The vertical mill grinds material on a rotating plate using rollers, and the integrated classifier ensures precise top-size control. If the dolomite feed has moderate moisture, hot air can be introduced to dry the material during grinding, eliminating the need for a separate dryer in many cases. The LM series also features automatic roller lifting and lowering, which simplifies maintenance and reduces downtime.

How to Select the Right Dolomite Mill for Your India Project

Selecting the right dolomite mill depends on several factors: raw material hardness, feed size, moisture content, silica content, target fineness, required capacity, available power, plant footprint, and investment budget. For small agricultural lime units producing 3 to 15 t/h, the MTW138Z or MTW175G can be an economical and reliable choice. For medium plants producing 15 to 45 t/h, the MTW215G offers excellent flexibility. For large plants producing 50 t/h or more, the LM190K or LM280K provides higher capacity, lower energy consumption per ton, and a smaller footprint than many conventional grinding systems.

Both the MTW and LM series can be configured with auxiliary equipment such as jaw crushers, hammer crushers, bucket elevators, belt conveyors, air classifiers, pulse dust collectors, screw conveyors, and automatic packing machines. This allows Shanghai Zenith to provide a complete dolomite agricultural lime production line, from raw rock to bagged powder. In India, where power reliability, maintenance cost, and environmental compliance are important, the robust design and efficient dust control of Zenith mills offer practical advantages.

Benefits of Shanghai Zenith Dolomite Mills for Agricultural Lime

• Adjustable product fineness to meet different state and market specifications for agricultural lime.
• High capacity from 3 t/h to 170 t/h, supporting small, medium, and large projects.
• Energy-efficient grinding and classifying, reducing operating cost per ton.
• Wear-resistant grinding parts for abrasive dolomite, extending service life.
• Closed-loop negative pressure and pulse dust collection for cleaner production.
• Compact layout and integrated drying for lower civil construction and auxiliary equipment costs.
• Stable particle size distribution, which improves lime reactivity and field performance.

Conclusion

Dolomite agricultural lime is a valuable input for correcting acidic soils and improving crop productivity across India. The quality and profitability of the final product depend heavily on the grinding mill. Shanghai Zenith Machinery Co., Ltd. provides proven grinding solutions for dolomite processing, including the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill. The MTW215G is recommended for medium-scale agricultural lime plants requiring 15 to 45 t/h, while the LM280K is recommended for large projects requiring 50 to 170 t/h. With strong engineering support, reliable equipment, and customizable production lines, Shanghai Zenith can help Indian investors build efficient and sustainable dolomite agricultural lime plants.
