Feldspar mill for glass and ceramic applications in Pakistan

Feldspar Mill for Glass and Ceramic Applications in Pakistan

Pakistan’s construction, packaging, tableware, and sanitaryware sectors continue to expand, creating steady demand for high-quality feldspar powder. As a key fluxing mineral, feldspar lowers the melting temperature of glass batches and ceramic bodies, improves vitrification, and contributes to mechanical strength and surface quality. For Pakistani processors supplying glass and ceramic plants, selecting the right feldspar mill is not only a question of capacity; it is a decision that affects product fineness, energy consumption, iron contamination, and long-term profitability.

Why Feldspar Is Important to Glass and Ceramics

Feldspar is an alumino-silicate mineral group that includes orthoclase, microcline, plagioclase, and albite. In glassmaking, it provides alumina and alkalis, reducing the requirement for expensive soda ash and improving chemical durability. In ceramic applications, it acts as a flux in tile bodies, sanitaryware, porcelain, tableware, glazes, and enamels. When fired, feldspar melts and forms a glassy phase that bonds other minerals, lowering porosity and increasing strength.

Pakistan has feldspar resources in several regions and a growing number of processing units. However, many operations still face challenges such as inconsistent particle size, high iron content, dusty working conditions, and high power cost. A modern grinding circuit with reliable classification and dust collection can solve these problems.

Grinding Requirements for Feldspar

Feldspar has a Mohs hardness of about 6 to 6.5, so it is abrasive and moderately difficult to grind. The required fineness depends on the final application. Glass batch often uses relatively coarse feldspar, commonly in the range of 40 to 200 mesh, while ceramic bodies usually require 200 to 325 mesh. Glazes, porcelain, and high-end ceramic products may require 325 to 600 mesh or even ultrafine powder below 30 microns. Iron contamination must be controlled because iron-bearing minerals can discolor glass and ceramic surfaces. Moisture, feed size, throughput, and product size distribution all influence mill selection.

Choosing the Right Feldspar Mill

When evaluating a feldspar mill for Pakistan, processors should consider five factors. First, the mill must handle the abrasive nature of feldspar with wear-resistant grinding elements. Second, the classification system must deliver a stable final product with minimal oversize. Third, the circuit should be energy-efficient because grinding can account for a large share of operating cost. Fourth, dust collection and enclosed conveying are essential for environmental compliance and worker safety. Fifth, spare parts availability and technical service are critical for continuous production.

Recommended Solutions from Shanghai Zenith Machinery

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. The company specializes in research, development, and production of industrial powder grinding equipment. For Pakistani feldspar processors, two solutions are particularly suitable: the MTW Trapezium Grinding Mill for flexible coarse-to-fine powder production, and the LUM Ultrafine Vertical Mill for high-value ultrafine ceramic applications.

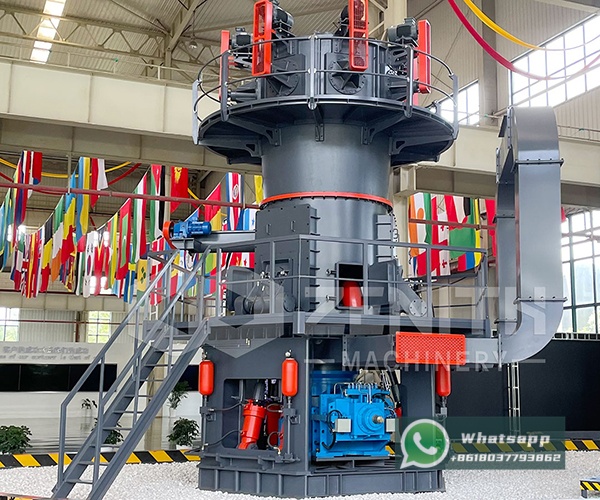

MTW Trapezium Grinding Mill for Glass and Ceramic Feldspar

The MTW Trapezium Grinding Mill is a patented grinding mill known for its compact structure, long service life, and eco-friendly design. It is suitable for materials with a maximum input size of 50 mm and can produce final products as fine as 0.038 mm. For feldspar, this means a single mill can serve glass batch preparation and many ceramic body applications. The MTW series uses an optimized grinding roller and ring design, an efficient classifier, and a pulse dust collector. It offers stable capacity, low vibration, and easy maintenance. In Pakistan, where production flexibility matters, the MTW mill can be configured for different fineness targets by adjusting the classifier.

LUM Ultrafine Vertical Mill for Advanced Ceramic Feldspar

For glazes, porcelain, and specialty ceramic products, finer feldspar powder can improve gloss, reduce firing defects, and create a more uniform microstructure. The LUM Ultrafine Vertical Mill integrates grinding, drying, classifying, and transportation while occupying minimal space. It is designed to produce products with high content of end-fines and features intelligent control for easier maintenance. The LUM mill can produce a size distribution D97 of 5 to 30 microns, making it an excellent choice for ultrafine feldspar used in high-quality ceramic glazes and fillers.

For larger capacity projects, Zenith also supplies LM Vertical Grinding Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, XZM Ultrafine Grinding Mill, Hammer Mill, and Ball Mill. A complete feldspar plant may include jaw crushing, screening, grinding, magnetic separation, dust collection, and packing. The optimal configuration depends on the deposit characteristics and the target market.

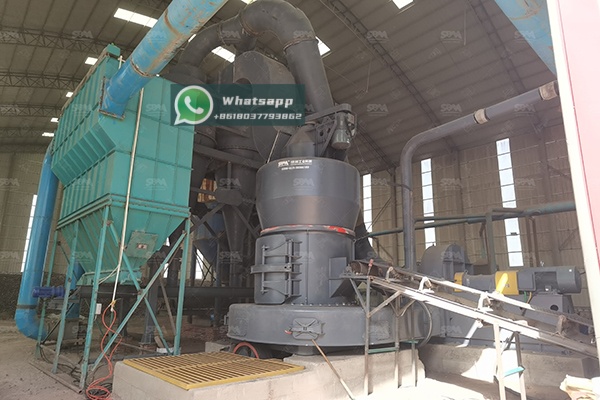

Process Configuration for a Pakistani Feldspar Grinding Plant

A typical dry feldspar grinding plant starts with primary crushing and screening to reduce feed to the mill inlet size. The material is then fed into a hopper and conveyed to the mill. After grinding, an air classifier separates fine powder from oversize, which is returned for further grinding. A pulse-jet bag filter collects dust, and the finished powder is stored in silos or packed into bulk bags. If iron removal is required, a magnetic separator can be installed after grinding. For ceramic slip production, a wet ball mill may also be used, but dry grinding with an MTW or LUM mill is often preferred for glass batch and dry ceramic bodies.

Economic and Operational Benefits

Selecting the correct feldspar mill can reduce power consumption per ton, improve product consistency, and lower maintenance costs. The MTW Trapezium Grinding Mill offers a favorable balance between capacity and fineness for general glass and ceramic applications. The LUM Ultrafine Vertical Mill provides a premium solution for ultrafine powders and high-value ceramic products. Both machines are designed with enclosed operation and dust collection, helping Pakistani processors meet environmental standards and improve workplace safety.

Why Partner with Shanghai Zenith Machinery

Shanghai Zenith Machinery Co., Ltd. has extensive experience in industrial grinding equipment and has supported many projects around the world. The company’s product range includes MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. For Pakistani customers, Zenith can provide process consultation, equipment selection, installation guidance, and spare parts support. This helps investors build a reliable feldspar processing business serving the growing glass and ceramic markets in Pakistan.

Conclusion

Feldspar is a strategic raw material for Pakistan’s glass and ceramic industries. Its successful processing depends on choosing a grinding mill that matches the deposit, product fineness, capacity, and budget. The MTW Trapezium Grinding Mill is an excellent choice for flexible feldspar powder production, while the LUM Ultrafine Vertical Mill is ideal for high-value ultrafine ceramic applications. With proven technology from Shanghai Zenith Machinery Co., Ltd., Pakistani processors can improve product quality, reduce operating costs, and capture new opportunities in domestic and export markets.

For more information on feldspar grinding solutions in Pakistan, contact Shanghai Zenith Machinery Co., Ltd. and request a customized configuration and quotation for your project.
