Diatomite powder mill for Egypt insulation use

Introduction to Diatomite and Its Insulation Applications

Diatomite, also known as diatomaceous earth, is a naturally occurring, soft, siliceous sedimentary rock that is easily crumbled into a fine white to off-white powder. Its unique properties—high porosity, low thermal conductivity, low density, and high surface area—make it an ideal raw material for a wide range of industrial applications. In the field of thermal insulation, diatomite is widely used as a lightweight aggregate in insulating bricks, fireproof boards, and high-temperature resistant coatings. The growing construction sector in Egypt, combined with the country’s hot climate and increasing focus on energy efficiency, has created a strong demand for high-quality diatomite powders used in insulation products.

The Egyptian Market and Processing Challenges

Egypt possesses significant diatomite deposits, particularly in the Western Desert and along the Red Sea coast. However, the raw material often contains moisture, impurities, and requires precise particle size reduction to unlock its full insulation potential. The key to producing consistent, high-performance insulation products lies in the grinding process. For Egypt’s insulation manufacturers, selecting the right diatomite powder mill is critical to achieving the desired fineness, purity, and production efficiency.

Typical requirements for diatomite used in insulation include a fineness ranging from 200 mesh (74 microns) for standard insulating bricks down to 800 mesh (15 microns) or finer for lightweight, high-performance boards. The material must also be processed with minimal contamination and controlled particle size distribution to maintain consistent thermal conductivity values below 0.06 W/(m·K).

Why Choose Zenith’s Grinding Mills for Diatomite Processing

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China, with extensive expertise in ultra-fine powder grinding. Our machines are designed to handle soft to medium-hard materials like diatomite (Mohs hardness 1-1.5) with high efficiency and low operating costs. Based on the specific needs of the Egyptian insulation market, we recommend two highly suitable mill models: the MTW Trapezium Grinding Mill and the LUM Ultrafine Vertical Mill.

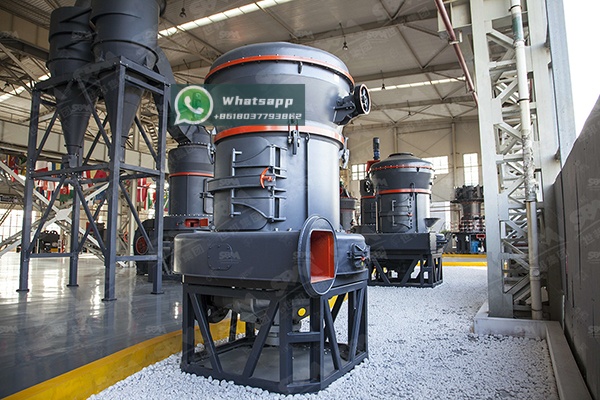

MTW Trapezium Grinding Mill – Versatile and Cost-Effective

The MTW series is a patented grinding mill known for its compact structure, long service life, and eco-friendly design. It is ideal for processing diatomite with a maximum feed size up to 50 mm, producing final powder as fine as 0.038 mm (approximately 400 mesh). For a typical medium-scale insulation production line in Egypt, the MTW215G model is particularly attractive:

• Max. Feed Size: <50 mm
• Final Size: 1.6 – 0.045 mm (can be adjusted to produce 200-325 mesh diatomite powder)
• Capacity: 15 – 45 t/h
• Main Motor: 280 kW
• Fan Motor: 315 kW

This mill features a trapezoidal grinding ring and roller design that increases grinding efficiency by 20-30% compared to traditional Raymond mills. The built-in classifier ensures a uniform product fineness, which is essential for consistent insulation properties. Moreover, the MTW mill’s enclosed system minimizes dust emissions—a critical advantage in hot, dry Egyptian environments.

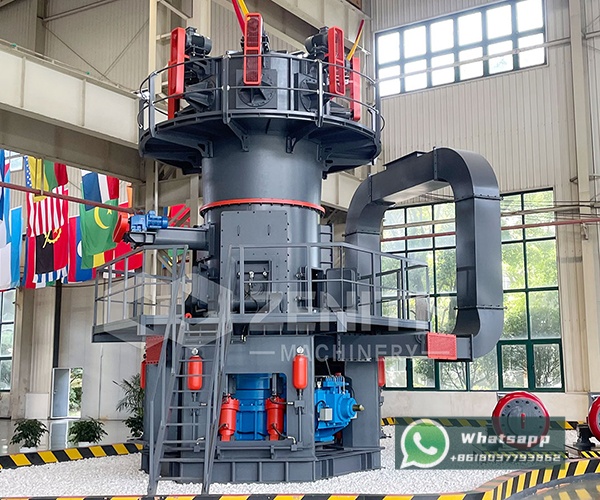

LUM Ultrafine Vertical Mill – For Premium Ultra-Fine Powder

When higher-end insulation products require superfine diatomite powders below 10 microns, the LUM Ultrafine Vertical Mill is the optimal choice. This mill integrates grinding, drying, classifying, and conveying in a single compact unit. The LUM1836 model offers:

• Main Machine Power: 355 – 400 kW
• Capacity: 2.3 – 15 t/h (depending on fineness)
• Size Distribution D97: 5 – 30 μm (adjustable)

The LUM mill utilizes a dynamic classifier that can achieve a steep particle size distribution, ensuring that the final diatomite powder has high specific surface area and excellent thermal insulation performance. Its roller and grinding table are made of wear-resistant materials, reducing maintenance frequency in continuous operation. The intelligent control system allows operators to easily adjust fineness and output, making it perfect for manufacturers who need to switch between product grades.

Technical Comparison and Selection Guidance

To help Egyptian insulation producers make an informed decision, the following factors should be considered:

For large-scale production of bulk diatomite powder at 200-325 mesh, the MTW series delivers the best cost-per-ton. For manufacturers targeting the premium insulation market with ultra-fine powders, the LUM series provides unmatched precision and consistency.

Complete Processing Solution from Zenith

In addition to the grinding mills, Shanghai Zenith can supply a complete set of auxiliary equipment including jaw crushers, bucket elevators, electromagnetic feeders, dust collectors, and control cabinets. We offer turnkey project design and on-site installation guidance to ensure smooth commissioning for Egyptian customers. Our after-sales service network in the Middle East guarantees quick response and spare parts availability.

Conclusion

As Egypt continues to expand its building and infrastructure projects, the demand for energy-efficient insulation materials will only grow. Choosing the right diatomite powder mill is a strategic investment that directly impacts product quality and production profitability. Shanghai Zenith Machinery Co., Ltd. provides proven, reliable grinding solutions tailored to the unique requirements of the insulation industry. Whether you need high-volume standard powder with the MTW Trapezium Grinding Mill or ultra-fine premium powder with the LUM Ultrafine Vertical Mill, we have the technology and experience to support your success.

Contact us today to discuss your diatomite grinding needs and obtain a customized quotation for the Egyptian market.
