Dolomite grinding mill for magnesium oxide processing in Ethiopia

Introduction

Ethiopia is steadily expanding its industrial mineral base, and dolomite is becoming an increasingly important raw material for magnesium oxide processing. Dolomite, a calcium magnesium carbonate with the general formula CaMg(CO3)2, can be calcined and further processed to produce magnesium oxide products used in refractories, cement, steelmaking, agriculture, environmental treatment, and other industrial applications. As demand for consistent MgO quality grows, the performance of the dolomite grinding circuit becomes a critical factor in the overall production line. Proper grinding ensures suitable particle size, good reactivity during calcination, stable downstream classification, and efficient material handling. For Ethiopian investors and operators, selecting the right grinding mill is therefore a decision that directly affects product quality, energy consumption, and long-term operating cost.

Why Dolomite Grinding Matters in Magnesium Oxide Processing

In a typical dolomite-to-magnesium oxide process, run-of-mine dolomite is crushed, screened, ground, and then calcined at controlled temperatures. The grinding stage influences not only the fineness of the calcination feed but also the uniformity of the material entering the kiln. If the particle size distribution is too coarse, calcination may be incomplete or uneven. If the powder is excessively fine or agglomerated, material flow, dust collection, and kiln operation can become less stable. A well-designed grinding system should therefore provide adjustable fineness, reliable capacity, low vibration, and efficient dust control.

Feed Preparation and Particle Size Control

Dolomite deposits in Ethiopia can vary in hardness, moisture, and associated minerals. A flexible grinding mill must handle these variations without frequent stoppages. For many magnesium oxide projects, a final product in the range of tens to hundreds of microns is required, depending on the calcination technology and the target MgO grade. The grinding circuit should allow operators to adjust the classifier or separator so that the desired particle size distribution can be maintained consistently.

Drying, Classification and Dust Control

Moisture control is especially important in tropical and subtropical regions. If the dolomite feed contains surface moisture, drying during grinding can improve material flow and reduce blockage in silos and conveying equipment. Modern grinding systems integrate drying, grinding, and classification functions to reduce ancillary equipment and simplify plant layout. Dust collection is equally important for environmental compliance and worker safety. Bag filters, enclosed conveyors, and negative-pressure operation should be considered from the beginning of the project.

Equipment Selection Criteria for Ethiopian Operations

When selecting a dolomite grinding mill for magnesium oxide processing in Ethiopia, several practical factors should be evaluated. First, the required product fineness and particle size distribution must be matched to the calcination process. Second, the hourly capacity should align with the kiln feed rate, allowing a reasonable margin for maintenance and production peaks. Third, power supply conditions, local maintenance capability, wear-part availability, and spare-parts logistics should be considered. Fourth, the equipment should offer stable operation with low noise, low dust emission, and easy adjustment. Finally, the supplier should provide process support, installation guidance, commissioning assistance, and operator training.

Recommended Shanghai Zenith Equipment

Shanghai Zenith Machinery Co., Ltd. is an experienced manufacturer of industrial powder grinding equipment in China and has achieved significant results in the field of ultra-fine powder grinding. The company specializes in the research, development, and production of grinding mills and related devices. For dolomite processing in Ethiopia, two equipment solutions are particularly suitable for magnesium oxide projects: the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill.

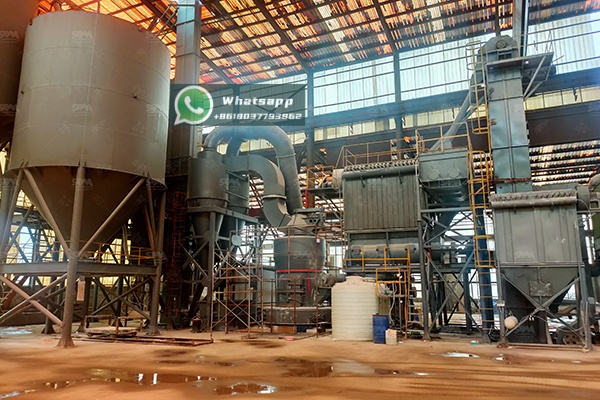

MTW Trapezium Grinding Mill

The MTW Trapezium Grinding Mill is a patented grinding system known for its compact structure, long service life, and eco-friendly design. It is suitable for materials with a maximum feed size of up to 50 mm and can produce a final product as fine as 0.038 mm. For dolomite grinding in magnesium oxide processing, the MTW mill offers flexible fineness adjustment and stable capacity. Typical models include the MTW175G with a capacity of 9.5 to 25 t/h, a maximum feed size below 40 mm, a final size range of 1.6 to 0.045 mm, and a main motor of 160 kW. The larger MTW215G can reach 15 to 45 t/h, accepts feed below 50 mm, and uses a 280 kW main motor. These models are well suited to medium-scale Ethiopian dolomite plants that require reliable fine grinding and straightforward maintenance.

LM Vertical Grinding Mill

For larger capacities and integrated drying, the LM Vertical Grinding Mill is an excellent choice. It combines crushing, grinding, powder selection, drying, and material conveying into one compact system, reducing civil construction and occupied floor space. The vertical mill is especially suitable for projects where feed moisture varies and where a continuous, high-capacity grinding circuit is required. In the vertical mineral mill series, the LM130K offers 10 to 28 t/h with an output fineness of 170 to 40 μm, a maximum feed size below 38 mm, and a 200 kW main motor. The LM190K provides 23 to 68 t/h, accepts feed below 45 mm, and uses a 500 kW main motor. For Ethiopian magnesium oxide processors planning a larger dolomite preparation line, the LM Vertical Grinding Mill can deliver strong performance with lower specific energy consumption and a smaller footprint.

Process Configuration Example

A practical dolomite grinding line for magnesium oxide processing may include a feed hopper, vibrating feeder, jaw crusher, belt conveyor, grinding mill, air classifier, cyclone, bag filter, screw conveyor, and product silo. If the raw dolomite contains moisture, hot air can be introduced into the vertical mill system to dry the material during grinding. The ground powder is then conveyed to the calcination section. For projects requiring strict product consistency, online sampling and laboratory testing of fineness and chemical composition should be included in the quality control plan.

Installation and Operational Considerations in Ethiopia

Ethiopian operations should pay attention to foundation design, power stability, and local maintenance resources. A stable electrical supply and proper motor protection are essential for continuous grinding. Wear parts such as grinding rollers, ring segments, and classifier blades should be selected according to the abrasive characteristics of the dolomite. Operators should be trained in start-up and shut-down procedures, lubrication schedules, vibration monitoring, and dust collector maintenance. Shanghai Zenith Machinery Co., Ltd. can provide technical support for equipment selection, layout planning, commissioning, and spare-parts planning. This support helps reduce downtime and improves the long-term profitability of the magnesium oxide project.

Conclusion

Dolomite grinding is a key step in magnesium oxide processing in Ethiopia. The right mill improves calcination feed quality, supports stable kiln operation, and helps control energy and maintenance costs. The MTW Trapezium Grinding Mill is recommended for flexible fine grinding at medium capacities, while the LM Vertical Grinding Mill is ideal for larger, integrated grinding and drying applications. By combining proven equipment with thoughtful process design and local operational planning, Ethiopian dolomite processors can build a reliable and efficient magnesium oxide production line.
