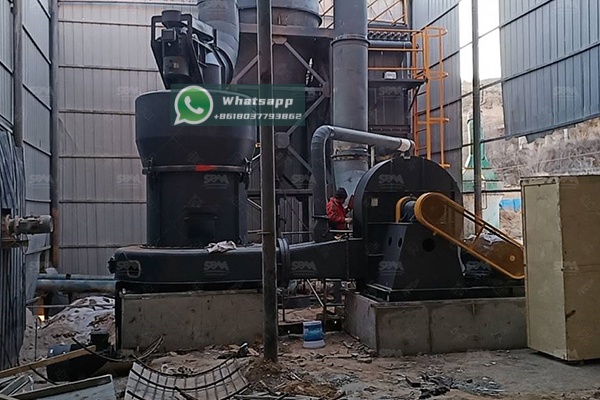

Quartz grinding mill for silica sand processing in Iraq

Quartz Grinding Mill for Silica Sand Processing in Iraq

Iraq is witnessing renewed investment in infrastructure, glass production, construction materials, ceramics, foundry casting, and oilfield services. Each of these sectors consumes silica sand or quartz powder with tightly controlled particle size, purity, and shape. As a result, efficient quartz grinding has become a practical priority for Iraqi mineral processing companies and investors. Shanghai Zenith Machinery Co., Ltd., an experienced Chinese manufacturer of ore grinding equipment, supplies advanced mills that can help Iraqi plants turn quartz deposits into high-value silica sand products. This article reviews the technical requirements, recommended equipment, and operational considerations for quartz grinding in Iraq, with special attention to the MTW Trapezium Grinding Mill and the LUM Ultrafine Vertical Mill.

Iraq Market Demand for Silica Sand and Quartz Powder

Iraq possesses substantial desert and sedimentary sand resources, and demand for processed silica sand is increasing. Glass factories require consistent SiO2 content and controlled iron levels. Foundries need rounded or sub-angular sand with precise size distribution for molds and cores. Ceramic and coating producers require fine quartz powder for fillers and functional additives. In southern Iraq, oil and gas operations create demand for high-purity proppants and filtration media. Reconstruction projects also require silica sand for concrete, mortars, and specialty building materials. To serve these markets, producers need grinding circuits that can handle abrasive quartz while maintaining stable output and low downtime.

Quartz and Silica Sand Processing Fundamentals

Quartz is crystalline silica with high hardness, typically 7 on the Mohs scale. Its abrasiveness accelerates wear on crushing and grinding equipment, so wear-resistant materials and robust mechanical design are essential. A complete silica sand processing plant usually includes several stages:

• Primary and secondary crushing to reduce quartz rock to manageable feed size.
• Washing and attrition scrubbing to remove clay, silt, and surface impurities.
• Grinding to achieve the required particle size, whether coarse sand, fine sand, or ultrafine powder.
• Classification, screening, and air separation to narrow the particle size distribution.
• Magnetic separation and, in some cases, flotation or acid leaching to reduce iron and other contaminants.
• Dewatering, drying, and packaging for final shipment.

The grinding stage is often the most energy-intensive and cost-sensitive part of the flowsheet. It determines final fineness, particle shape, output capacity, and downstream separation efficiency. For Iraqi operations, the choice between dry and wet grinding depends on the deposit, water availability, product specification, and end-use market.

Why Grinding Performance Matters in Iraq

Iraq’s hot and dusty climate places additional stress on grinding equipment. Mills must operate reliably in high ambient temperatures, with effective sealing, lubrication, and dust collection. Because quartz is highly abrasive, grinding rollers, rings, liners, and grinding media must be made from durable materials. Energy efficiency is also important, especially where power supply is unstable or expensive. A well-designed quartz grinding mill can reduce specific energy consumption, minimize fines beyond the target range, and provide consistent product quality for local and export customers.

Recommended Shanghai Zenith Grinding Mills for Quartz and Silica Sand

Shanghai Zenith Machinery Co., Ltd. specializes in the research, development, and production of industrial powder grinding equipment. Its product range includes the MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, Hammer Mill, and other related devices. For silica sand processing in Iraq, the following two models offer an effective combination of capacity, fineness control, and operational reliability.

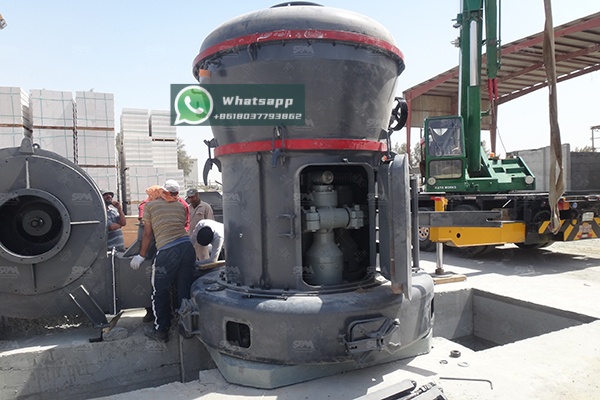

MTW Trapezium Grinding Mill

The MTW Trapezium Grinding Mill is a patented, compact, and eco-friendly grinding solution. It is suitable for materials with a maximum input size of up to 50 mm and can produce final products as fine as 0.038 mm. With capacity ranges from 3 t/h to 45 t/h depending on the model, the MTW mill is well suited to Iraqi silica sand plants that need medium to large-scale production of glass sand, foundry sand, ceramic fillers, and construction-grade quartz powder.

For an Iraqi silica sand project targeting 100-400 mesh products, the MTW series can be configured with a classifier and dust collector to produce clean, consistent powder. Its compact structure reduces civil construction requirements, while the internal lubrication system and curved grinding blades help lower maintenance frequency. When paired with magnetic separation, the MTW mill can support the production of low-iron silica sand for glass and ceramics.

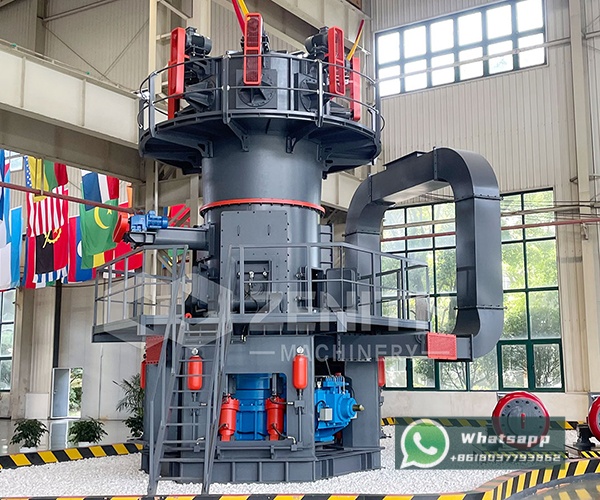

LUM Ultrafine Vertical Mill

The LUM Ultrafine Vertical Mill integrates grinding, drying, classifying, and transportation in one compact unit. It is designed for ultrafine powder production with a high content of end-fines and intelligent control for easier maintenance. The LUM mill is an excellent choice when Iraqi producers need very fine quartz powder for high-end fillers, coatings, sealants, electronic materials, or specialty ceramic applications.

The LUM Ultrafine Vertical Mill offers precise top-size control, low noise, and reduced dust emissions. Its vertical layout saves floor space, which is valuable for brownfield upgrades and compact plant layouts in Iraq. For quartz grinding, the LUM mill can help achieve a narrow particle size distribution while maintaining stable operation under continuous loads.

Matching Mills to Iraqi Silica Sand Applications

Glass Manufacturing

Glass producers require silica sand with consistent grain size, low iron content, and minimal refractory minerals. Depending on the furnace and product type, target sizes often range from 0.1 mm to 0.6 mm. The MTW Trapezium Grinding Mill, combined with screening and magnetic separation, can prepare glass-grade sand with controlled fines. For finer glass polishing or specialty glass powders, the LUM Ultrafine Vertical Mill can produce ultrafine quartz with D97 between 5 and 30 μm.

Foundry and Casting

Foundries in Iraq need silica sand with high refractoriness, good permeability, and uniform grain shape. Grinding should avoid excessive fines that reduce mold permeability. A closed-circuit grinding system with an MTW mill and air classifier can deliver foundry sand with a narrow size distribution. The equipment should be equipped with wear-resistant liners to handle continuous abrasive quartz feed.

Ceramics, Fillers, and Construction

Ceramic bodies, paints, coatings, and polymer fillers consume fine quartz powder. The LUM Ultrafine Vertical Mill is well suited to these applications because it can produce ultrafine particles with a controlled top size. For construction materials, mortars, and decorative sand, the MTW mill can provide medium-fine sand at higher capacity and lower specific energy per ton.

Oil and Gas Applications

In oilfield operations, silica sand may be used for filtration or as a proppant precursor. Proppant production requires strict control of particle size, roundness, and crush strength. Grinding is only one part of the process, but it must deliver a consistent feed for downstream classification and coating. The MTW and LUM mills can be integrated into a larger silica sand processing plant to meet these demanding specifications.

Operational and Maintenance Tips for Iraqi Plants

• Select wear parts with high chromium or ceramic-reinforced materials to extend service life when grinding quartz.
• Install effective dust collection to protect workers and comply with environmental standards.
• Use automated control systems to monitor motor load, temperature, and product fineness.
• Plan regular inspection of grinding rollers, rings, liners, and classifiers to prevent unexpected downtime.
• Keep critical spare parts on site or in a regional warehouse to reduce lead times.
• Optimize moisture control before grinding, especially if wet processing is used upstream.
• Train operators on stable feed rate control, because sudden feed fluctuations reduce product consistency and increase wear.

Shanghai Zenith Machinery Co., Ltd. provides technical support, process configuration, and equipment selection for silica sand projects. With experience in ultrafine powder grinding, the company can help Iraqi clients design a quartz grinding circuit that matches local raw materials, power conditions, and market requirements.

Conclusion

Quartz grinding is a key value-adding step in silica sand processing in Iraq. Whether the target market is glass, foundry, ceramics, construction, or oilfield services, the right mill can improve product quality, reduce energy costs, and increase plant profitability. The MTW Trapezium Grinding Mill offers reliable medium-to-large capacity production with final sizes down to 0.045 mm, while the LUM Ultrafine Vertical Mill delivers advanced ultrafine grinding for high-value quartz powder. For Iraqi investors and processors seeking professional grinding equipment, Shanghai Zenith Machinery Co., Ltd. is a strong partner for building an efficient and durable silica sand processing plant.
