Petcoke powder mill for Vietnam cement kilns

Introduction

Vietnam’s cement industry has experienced rapid growth over the past decade, becoming one of the largest cement producers in Southeast Asia. To meet the high energy demand of cement production, many cement plants in Vietnam have turned to petroleum coke (petcoke) as a cost-effective alternative to traditional fuels like coal. Petcoke offers a higher calorific value and lower ash content, making it an attractive fuel for cement kilns. However, to achieve efficient combustion and stable kiln operation, petcoke must be ground into a fine powder with precise particle size distribution. This article explores the requirements of petcoke grinding for Vietnamese cement kilns and presents advanced milling solutions from Shanghai Zenith Machinery Co., Ltd., a leading Chinese manufacturer of ore grinding equipment.

The Importance of Petcoke Grinding for Cement Kilns

Petcoke used in cement kilns typically needs to be ground to a fineness where 80% passes through a 200-mesh sieve (74 microns) or finer. The finer the powder, the more complete the combustion, which reduces unburned carbon and minimizes clinker quality issues. Additionally, uniform particle size ensures stable flame temperature and longer refractory life. In Vietnam, where cement plants often operate at high capacity, reliable and efficient petcoke grinding mills are essential to maintain production continuity and reduce operational costs.

Challenges in Petcoke Grinding

Petcoke has unique properties that make grinding more demanding than coal. It is harder, more abrasive, and has a higher volatile content, which can lead to explosion risks if not handled properly. Moreover, petcoke often contains residual moisture that requires drying during the milling process. Traditional ball mills, while widely used, suffer from high energy consumption, large footprint, and limited drying capacity. For Vietnamese cement producers looking to optimize fuel preparation, a modern grinding system that combines grinding, drying, and classifying in one unit is highly desirable.

Shanghai Zenith’s Solutions for Petcoke Powder Milling

Shanghai Zenith Machinery Co., Ltd. has decades of experience in developing industrial grinding equipment for various materials, including coal, petcoke, limestone, and slag. The company’s product portfolio includes eight major series of mills, each engineered to deliver high efficiency, low energy consumption, and reliable performance. For petcoke grinding in cement kilns, two models stand out: the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill. These mills are widely used in Vietnam and other Asian markets due to their robust design and ability to produce consistent fine powder.

Recommended Products

1. MTW Trapezium Grinding Mill

The MTW series is a patented trapezium mill that combines multiple grinding technologies. Its compact structure, long service life, and eco-friendly design make it suitable for petcoke grinding with a maximum feed size of 50 mm and final fineness as fine as 0.038 mm (400 mesh). For example, the model MTW138Z can handle feed sizes up to 35 mm, produce fineness from 1.6 to 0.045 mm, and achieve a capacity of 6–17 t/h with a main motor of 90 kW. The trapezium-shaped roller and ring create a stable grinding bed, reducing vibration and wear. The built-in classifier ensures precise particle size control, which is critical for cement kiln combustion. Many Vietnamese cement plants have adopted the MTW mill for its low maintenance and high uptime.

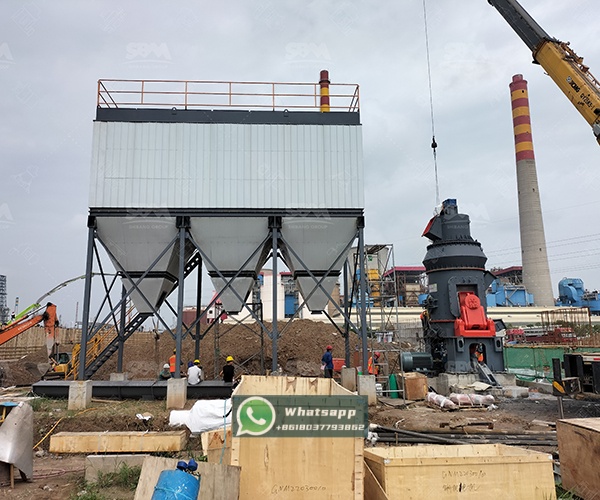

2. LM Vertical Grinding Mill

The LM Vertical Grinding Mill integrates crushing, grinding, drying, classifying, and material conveying into a single unit. This all-in-one design greatly reduces the plant footprint and simplifies the process flow. For petcoke grinding, the LM130M (coal mill series) is an excellent choice, with a plate diameter of 1300 mm, capacity of 10–17 t/h, and main motor power of 185 kW. The mill can handle feed moisture up to 10% and dry the material using hot gases from the kiln or a separate hot air generator. The grinding rollers are designed with a unique hydrodynamic pressure system that ensures stable operation even under varying feed conditions. The LM mill’s high grinding efficiency can reduce specific energy consumption by 30–50% compared to traditional ball mills, helping Vietnamese cement producers lower electricity costs.

Why Choose Zenith’s Mills for Vietnam Cement Kilns?

First, both the MTW and LM mills are engineered for the demanding conditions of petcoke grinding. They feature wear-resistant materials, explosion-proof designs (upon request), and advanced sealing systems to prevent dust leakage. Second, Zenith offers comprehensive after-sales support in Vietnam, including installation, commissioning, and spare parts supply. Third, the company’s mills are backed by extensive R&D and a global track record, with thousands of units operating in cement plants across Asia, Africa, and the Middle East. For a typical 5,000 tpd cement line, a single LM220M mill can provide sufficient petcoke powder, simplifying the fuel preparation system.

Conclusion

As Vietnam’s cement industry continues to expand, the demand for efficient and reliable petcoke grinding solutions will only grow. Shanghai Zenith Machinery Co., Ltd. offers proven technologies – the MTW Trapezium Grinding Mill and LM Vertical Grinding Mill – that meet the specific needs of Vietnamese cement kilns. With their high capacity, low energy consumption, and fine product quality, these mills help cement producers maximize fuel efficiency and reduce operational costs. For more detailed technical specifications or to arrange a site visit, contact Zenith’s team in Hanoi or Ho Chi Minh City.
