Perlite milling line for Qatar concrete additives

Introduction: The Role of Perlite in Qatar’s Concrete Industry

Perlite, a naturally occurring volcanic glass, has become an indispensable component in modern concrete additives due to its unique properties, including lightweight, excellent thermal insulation, fire resistance, and sound absorption. In Qatar, where rapid urbanization and mega infrastructure projects are underway—such as the Lusail City development and preparations for major international events—the demand for high-performance concrete is surging. Concrete additives incorporating expanded perlite help reduce structural weight, improve workability, and enhance durability in the region’s harsh arid climate. However, the raw perlite ore must undergo precise milling to achieve the optimal particle size distribution (typically 100–400 mesh or finer) for use as a concrete admixture. This article presents a comprehensive overview of a dedicated perlite milling line tailored for Qatar’s concrete additives market, highlighting advanced processing solutions from Shanghai Zenith Machinery Co., Ltd., a leading Chinese manufacturer of ore grinding equipment.

Characteristics of Perlite and Processing Requirements

Perlite is a siliceous volcanic rock with a high content of amorphous silicon dioxide (70–75%) and a water content of 2–5%. When heated rapidly, the water vaporizes and expands the material into a lightweight, porous structure, which is then ground into fine powder for additives. The milling process must achieve a consistent fineness (often D97 < 45 μm for high-performance applications) while preserving the material’s high silica reactivity. Additionally, due to perlite’s moderate hardness (5–6 on Mohs scale) and abrasiveness, the grinding equipment must be wear-resistant and energy-efficient. Shanghai Zenith Machinery’s product line is engineered to meet these challenges, offering robust solutions for both coarse and ultra-fine grinding needs.

Overview of the Perlite Milling Line

A typical perlite milling line for concrete additives consists of three main stages: primary crushing, grinding, and classifying. The raw perlite ore (max feed size up to 50 mm) is first crushed by a jaw crusher or hammer mill to reduce it to <30 mm. The crushed material is then fed into a grinding mill, where it is pulverized to the desired fineness. Finally, a classifier separates the fine product from oversized particles, which are returned for regrinding. For the Qatar market, where electricity costs and dust control are critical considerations, the choice of grinding mill directly impacts operational efficiency and environmental compliance.

Recommended Grinding Equipment from Shanghai Zenith

Based on extensive field experience and product innovation, Shanghai Zenith Machinery recommends two flagship models for perlite milling in Qatar’s concrete additive industry: the MTW Trapezium Grinding Mill and the LUM Ultrafine Vertical Mill. Both machines are designed to handle perlite’s specific characteristics while delivering high throughput and superior product quality.

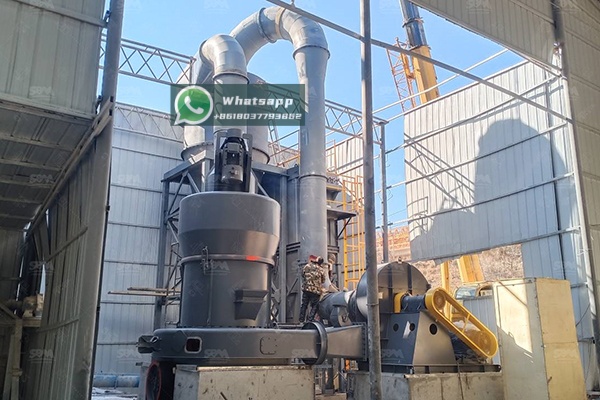

1. MTW Trapezium Grinding Mill: The Workhorse for Medium-Fine Perlite Processing

The MTW Trapezium Grinding Mill is a patented system known for its compact structure, long service life, and eco-friendly operation. It is ideally suited for processing perlite with a maximum feed size of 50 mm, producing final products as fine as 0.038 mm (400 mesh). The MTW mill employs a unique trapezium-shaped grinding ring and roller design, which increases grinding efficiency by 20–30% compared to traditional Raymond mills. In a typical setup for concrete additives, the MTW175G model (main motor 160 kW, capacity 9.5–25 t/h) can produce perlite powder in the 200–325 mesh range with excellent particle shape. Key advantages include: low noise emission (<85 dB), fully enclosed system to minimize dust, and easy maintenance via automatic lubrication. For Qatar’s high-temperature environment, the mill’s forced lubrication and cooling system ensure stable operation.

Recommended product: MTW175G Trapezium Grinding Mill. This model balances capacity and fineness, making it cost-effective for commercial perlite grinding lines targeting additive applications.

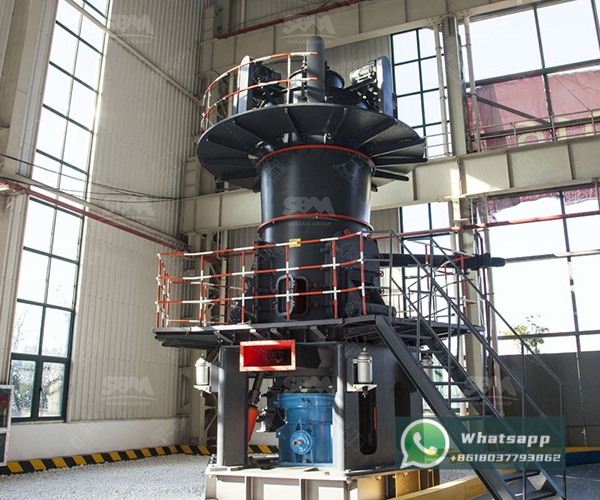

2. LUM Ultrafine Vertical Mill: Precision for High-End Concrete Additives

For projects requiring ultra-fine perlite powder (D97 < 30 μm, or finer), the LUM Ultrafine Vertical Mill is the optimal choice. This mill integrates grinding, drying, classifying, and conveying into a single unit, reducing the footprint by 50% compared to traditional ball mill systems. The LUM series uses a vertical roller configuration with hydro-pneumatic pressure system, achieving a specific energy consumption 30–40% lower than ball mills. The LUM1525 model (main motor 220–250 kW, capacity 1.6–11.5 t/h) can produce perlite powder with D97 = 5–30 μm, directly meeting the stringent fineness requirements of high-performance concrete additives. The intelligent control system automatically adjusts grinding pressure and classifier speed to maintain consistent quality, while the wear-resistant alloy steel rollers and table extend service life beyond 8,000 hours.

Recommended product: LUM1525 Ultrafine Vertical Mill. It is particularly valuable for producing premium perlite additives that enhance concrete’s flowability and reduce shrinkage in Qatar’s hot climate.

Comparative Analysis of Milling Options

To assist Qatari concrete additive manufacturers in selecting the most suitable equipment, the table below summarizes key parameters of the two recommended mills:

Both models are manufactured under strict quality control at Shanghai Zenith’s plants and have been exported to over 180 countries, including the Middle East. Their robust design ensures reliable operation in temperatures up to 50°C and dusty environments, which are common in Qatar’s construction material processing facilities.

Why Shanghai Zenith Machinery is the Right Partner for Qatar

Shanghai Zenith Machinery Co., Ltd. has been a pioneer in ore grinding technology for over three decades. Our comprehensive portfolio—including MTW, MTM, LM, LUM, XZM mills, and more—covers every stage of powder processing from coarse to ultra-fine. For the Perlite Milling Line in Qatar, we offer turnkey solutions including pre-feasibility studies, equipment selection, installation supervision, and after-sales service. Our local partners in the Middle East provide spare parts warehouses and 24/7 technical support, minimizing downtime. Additionally, our grinding mills are designed with energy-saving features: for example, the MTW mill’s high-efficiency classifier reduces power consumption by 15% compared to conventional machines, directly lowering operational costs for Qatari producers.

Conclusion and Final Recommendation

In summary, building a successful perlite milling line for concrete additives in Qatar requires a careful balance of particle fineness, throughput, energy efficiency, and durability. Shanghai Zenith Machinery’s MTW Trapezium Grinding Mill and LUM Ultrafine Vertical Mill represent the state-of-the-art in perlite processing, offering reliable performance and excellent return on investment. Whether the goal is to produce standard 200-mesh perlite powder for mass concrete or ultra-fine 600-mesh grade for specialized high-performance mixes, Zenith has a proven solution. We invite Qatari investors and contractors to contact our sales team for customized line layouts, quotation, and on-site trials. With Zenith equipment, your perlite additive business can achieve world-class quality while meeting the demanding requirements of Qatar’s booming construction sector.
