Perlite milling line for Oman industrial fillers

1. Introduction to Perlite and Its Application in Industrial Fillers

Perlite is a naturally occurring volcanic glass that, when heated to high temperatures, expands into a lightweight, porous material. Due to its unique physical properties—low density, high porosity, chemical inertness, and thermal insulation—expanded perlite is widely used as an industrial filler in construction, agriculture, filtration, and manufacturing. In Oman, the demand for high-quality perlite powder as a functional filler in plastics, paints, rubber, and adhesives is growing steadily. To meet this demand, an efficient and reliable perlite milling line is essential.

A complete perlite milling line typically involves primary crushing, drying (if needed), grinding, classification, and packaging. Among these stages, the grinding process is the most critical, as it determines the fineness, particle size distribution, and overall quality of the final product. For industrial filler applications, perlite powder is usually required to be within 100–500 mesh (0.15–0.03 mm) with a controlled particle shape.

2. Key Considerations for Designing a Perlite Grinding Line

When selecting a grinding mill for perlite processing, several factors must be taken into account:

• Feed size: Raw perlite is typically crushed to below 30–50 mm before entering the mill.
• Moisture content: Raw perlite may contain up to 4–6% moisture; some mills integrate drying or can handle moderate moisture.
• Desired fineness: Industrial fillers often require 200–600 mesh products.
• Capacity: Production scale ranges from a few tons per hour to tens of tons per hour.
• Energy efficiency and maintenance cost: Lower power consumption and easy maintenance reduce overall operational cost.

Based on Shanghai Zenith Machinery Co., Ltd.’s extensive experience in ore grinding, the company offers several advanced mill solutions perfectly suited for perlite powder production in Oman. Below we discuss two recommended products that combine high efficiency, reliable performance, and long service life.

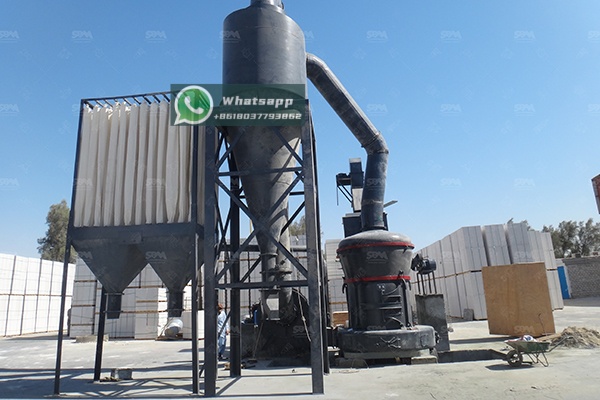

3. Recommended Product 1: MTW Trapezium Grinding Mill

The MTW Trapezium Grinding Mill is a flagship product of Shanghai Zenith, featuring multiple patented technologies. Its compact structure, ecological design, and stable operation make it ideal for medium to fine grinding of perlite. The mill’s trapezium-shaped roller and ring improve grinding efficiency and reduce energy consumption. For a perlite milling line targeting filler grades (100–400 mesh), the MTW138Z or MTW175G models are excellent choices.

With a final product fineness adjustable from 1.6 mm down to 0.045 mm (325 mesh), the MTW mill can produce perlite powder that meets most industrial filler specifications. The mill operates with low noise and dust emission, complying with modern environmental standards. For a medium-scale line in Oman (e.g., 10 t/h finished product), the MTW175G is highly recommended.

4. Recommended Product 2: LM Vertical Grinding Mill

For larger capacity requirements or when a higher degree of automation is desired, the LM Vertical Grinding Mill is the ideal solution. This mill integrates crushing, grinding, drying, powder selection, and material conveying into a single machine, significantly reducing the footprint and simplifying the process. The LM Vertical Mill is particularly suitable for perlite because of its ability to handle feed materials with moisture up to 6% and produce consistent product fineness between 170–40 μm (approximately 80–400 mesh).

For a large-scale perlite milling line in Oman (e.g., 30–60 t/h), the LM190K is a cost-effective choice. The vertical mill’s internal classifier can precisely control the particle size distribution, ensuring that the final filler product has consistent quality. Moreover, the LM series features intelligent control systems, making operation and maintenance easier for local staff.

5. Process Flow of a Typical Perlite Milling Line

A complete perlite milling line using Shanghai Zenith equipment can be configured as follows:

1. Primary Crushing: Raw perlite lumps (up to 200 mm) are crushed by a jaw crusher or hammer crusher to <30–50 mm.
2. Grinding: The crushed material is fed via a vibrating feeder and bucket elevator into the MTW or LM mill for grinding.
3. Classification: An integrated air classifier separates fine powder from coarse particles. Coarse particles are returned to the grinding chamber for further grinding.
4. Collection: Fine powder is collected by a bag filter or cyclone collector. The clean air is released.
5. Packaging: Finished perlite powder is conveyed to a storage silo and then packed into bags (25 kg or 1 ton jumbo bags).

Shanghai Zenith can also provide auxiliary equipment such as belt conveyors, dust collectors, and automatic packaging machines to form a complete turnkey solution.

6. Why Choose Shanghai Zenith for Your Oman Perlite Project?

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China, with decades of experience in the field of ultra-fine powder grinding. The company specializes in research, development, and production of industrial powder grinding equipment and related devices. Their product portfolio includes MTW Trapezium Mill, Ball Mill, MTM Medium-Speed Mill, Raymond Mill, LM Vertical Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Mill, and Hammer Mill.

For Oman’s industrial filler market, the MTW Trapezium Grinding Mill and LM Vertical Grinding Mill are particularly advantageous due to their:

• Proven performance in grinding materials similar to perlite (e.g., expanded vermiculite, diatomite, etc.).
• Low energy consumption compared to traditional ball mills, reducing operational costs.
• Durable wear parts made from high-alloy materials, ensuring long service life.
• Compact layout that saves floor space and simplifies installation.
• Global service network providing technical support and spare parts.

In addition, Zenith offers customized solutions based on specific raw material characteristics and capacity requirements. Whether you need a single mill or a full perlite processing line, Zenith can deliver reliable, efficient, and environmentally friendly equipment.

7. Conclusion

The growing demand for industrial fillers in Oman presents a valuable opportunity for perlite processors. By choosing the right grinding equipment, investors can achieve high-quality perlite powder with optimal particle size distribution and consistent performance. Shanghai Zenith Machinery’s MTW Trapezium Grinding Mill and LM Vertical Grinding Mill are two outstanding options that combine advanced technology, robust construction, and energy efficiency. For a detailed project proposal and quotation, please contact Shanghai Zenith’s sales team. We look forward to cooperating with you to build a successful perlite milling line in Oman.

Note: All images used in this article are for illustrative purposes only. Actual equipment may vary.
