Modern Barite Mill for Oilfield Use in Iraq

Iraq sits in one of the world’s most hydrocarbon-rich regions, and its oilfields in Basra, West Qurna, Majnoon and Zubair continue to rely on advanced drilling technology. Barite is an indispensable weighting material in water- or oil-based drilling muds. Its high specific gravity, typically 4.2 g/cm³ or higher, allows drilling crews to control formation pressure, prevent kicks and blowouts, and keep the wellbore stable while penetrating deep reservoirs. To deliver this performance, barite must be finely ground to meet API 13A specifications, normally with high percentages passing through a 200-mesh or 325-mesh screen.

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China, and has made great achievements in the field of ultra-fine powder grinding. Zenith specialises in research, development and production of industrial mills; its MTW trapezium mill, LM vertical grinding mill and other models are widely used in mineral processing projects. For Iraq’s oilfield barite industry, Zenith’s grinding technology combines fineness, throughput and robustness in harsh operational environments.

Key Requirements for Barite Grinding in Iraq

Barite ore is generally blasted and fed to jaw crushers and then conveyed to a grinding mill. The resulting barite powder must have uniform particle size, low contamination and controlled moisture. In Iraq, summer temperatures can be extremely high and electricity supply may be intermittent, so grinding equipment must be energy-efficient, dependable, and easy to maintain. An ideal barite mill should offer:

• Maximum feed size of at least 40-50 mm to simplify upstream crushing.
• Adjustable product fineness from 0.045 mm down to finer grades.
• Capacity range suitable for mobile or fixed barite plants, from several tonnes per hour to more than 100 t/h for centralised infrastructure.
• Dust-tight design and low vibration for safe operation in desert environments.

For many projects in Iraq, mobile containerised grinding plants are preferred because they can be relocated near well sites. Yet large integrated oilfield service bases need stationary mills with high annual output. Zenith can supply both types by choosing the right model from an extensive range.

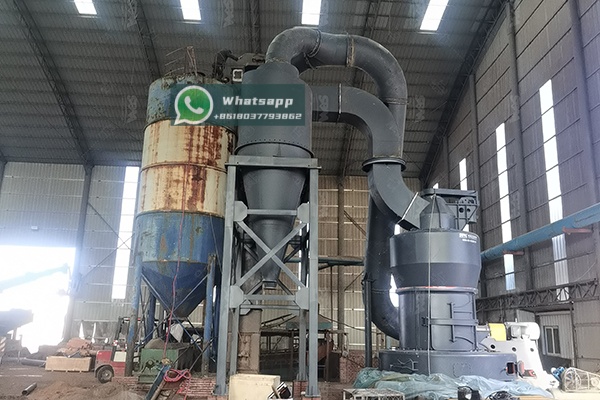

Zenith MTW Trapezium Grinding Mill: Recommended for Standard Barite Powder

Zenith’s MTW trapezium grinding mill is one of the company’s most respected machines for primary and secondary barite grinding. It uses multiple patented designs, including tapered-trapezoid rollers and grinding rings, anti-wear radial bevel gears and an independent lubrication system. With a compact footprint and stable structure, the MTW mill is well suited to Iraqi conditions. It can reduce feed material up to 50 mm to a final product as fine as 0.038 mm, which covers both the 200-mesh and the 325-mesh fractions required in drilling-grade barite.

Selected MTW technical parameters:

For a typical Iraqi barite plant with required output around 10-20 t/h, the MTW175G is a wise choice: it is compact enough for semi-continuous sites, uses a 160 kW main motor, and can comfortably deliver fine powder for oil drilling mud. The MTW138Z is also popular when production demand is below 15 t/h. All MTW models are eco-friendly, with lower noise, better sealing and lower energy consumption than traditional Raymond grinding mills.

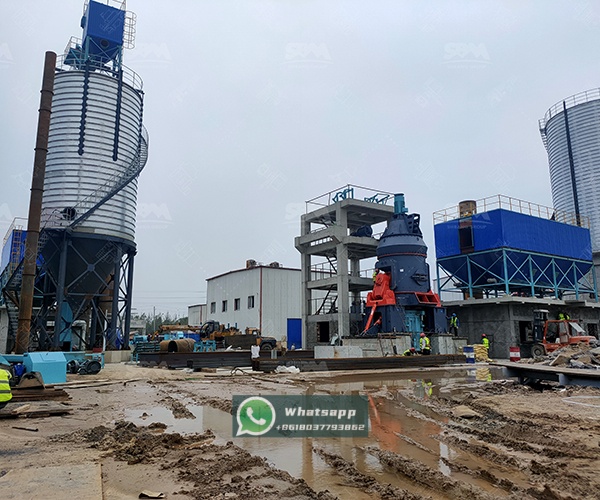

LM Vertical Grinding Mill: High-Capacity Alternative for Large Barite Plants

If an Iraqi oilfield service company needs a central processing hub to supply multiple rigs, Zenith recommends the LM vertical grinding mill. Unlike conventional grinding, this machine integrates five functions: crushing, grinding, drying, powder selection and pneumatic conveying. Because materials are ground under the bed without high-speed impact, the wear cost per tonne of barite can be significantly reduced.

For ore grinding, the Zenith LM series mineral mill provides production rates from 10 up to 170 t/h depending on model, with an output fineness of 170-40 μm, about 90 to 400 mesh. This means the LM190K, with a 500 kW main motor, can produce 23-68 t/h of economically ground barite; the larger LM280K, with a 1250 kW main motor, is suitable for large-scale export-oriented barite terminals near Persian Gulf ports.

Because the LM mill consumes less floor area and integrates several process stages, project contractors in Iraq can lower civil engineering costs, simplify electrical installations, and reduce operation and maintenance manpower. It is particularly valuable where moisture in barite ore must be removed; the hot air system inside an LM mill can simultaneously dry and classify the mineral. Therefore, Zenith is prepared to offer either MTW or LM equipment based on a client’s required capacity, target powder particle size, available power supply and site layout.

Additional Zenith Grinding Technologies

Aside from MTW and LM, Zenith also manufactures MTM medium-speed mills, Raymond mills, XZM ultrafine mills, ball mills and hammer mills. These machines help oilfield mineral processors grind barite, bentonite, calcium carbonate and hematite. The XZM ultrafine mill, for example, can produce extremely fine 325-2500 mesh powders for special drilling fluids. However, for massive barite throughput used in conventional mud weighting, MTW and LM are the two most cost-effective recommendations.

Conclusion and Recommendation

Iraq’s thriving oil and gas sector requires efficient barite processing equipment. As exploration and development expands, demand for API-grade barite powder will continue to rise. Shanghai Zenith Machinery Co., Ltd. provides robust solutions such as the MTW trapezium grinding mill and LM vertical grinding mill. Whether you are establishing a local barite plant in Basra or planning a larger central facility near the southern Iraqi oilfields, Zenith equipment can help achieve consistent product quality, high output and lower total cost of ownership. Contact one of Zenith’s application consultants to test your own barite sample and receive a complete engineering proposal.
