Perlite mill for insulation materials in UAE

Introduction: Perlite and the Growing Insulation Market in the UAE

The United Arab Emirates is one of the most dynamic construction and industrial markets in the Middle East. From high-rise towers in Dubai to industrial facilities in Abu Dhabi and residential communities across the Northern Emirates, demand for reliable thermal insulation is rising. Building codes such as Estidama, Al Sa’fat, and Dubai Green Building Regulations push developers to reduce cooling loads and improve energy efficiency. In this context, perlite has become a valuable material for insulation manufacturers. Expanded perlite is lightweight, non-combustible, chemically inert, and has low thermal conductivity, making it suitable for roof insulation, wall boards, pipe sections, loose-fill insulation, lightweight insulating concrete, plasters, and fire-resistant panels. To convert perlite ore or expanded perlite into consistent insulation products, UAE producers need dependable perlite mills that can deliver accurate particle size, high capacity, and stable operation in hot and dusty conditions. Shanghai Zenith Machinery Co., Ltd., a leading Chinese manufacturer of ore grinding equipment, offers advanced milling solutions for this growing market.

Why Perlite Performs Well in UAE Insulation Applications

Perlite is a volcanic glass that expands dramatically when heated to around 850-1,200°C. The expansion creates a cellular structure with countless closed and open pores. This structure gives expanded perlite outstanding insulation properties. Its bulk density can range from about 32 to 200 kg/m3, and its thermal conductivity is typically between 0.04 and 0.06 W/mK. In the UAE, where summer temperatures often exceed 45°C and cooling accounts for a large share of building energy use, these properties help reduce heat transfer through roofs, walls, and floors.

Other advantages include:

• Non-combustible and resistant to high temperatures, which supports fire safety in commercial and industrial buildings.
• Chemically inert and pH neutral, so it is compatible with cement, gypsum, lime, and other binders.
• Lightweight, which lowers structural load and improves workability in insulating mortars and lightweight concrete.
• Sound absorbing, helping improve acoustic comfort in hotels, offices, and residential towers.
• Durable and stable, with good resistance to rot, insects, and aging when properly processed.

For insulation materials, particle size distribution is critical. Coarse perlite aggregate provides volume and low density, while finer perlite powder can improve surface finish, strength, and thermal performance in coatings, boards, and specialty mortars. This is why efficient grinding and classification equipment is essential.

Perlite Processing Flow for Insulation Materials

A typical perlite processing line includes crushing, drying, preheating, expansion, cooling, classification, and, when required, milling. Raw perlite ore is first crushed to a suitable feed size. The crushed material is dried and preheated to remove moisture and prepare the ore for expansion. In the expansion furnace, the ore softens and water inside the glass vaporizes, causing the characteristic expansion. After cooling, cyclones and classifiers separate the expanded perlite into different grades.

Milling may be used at different stages depending on the final insulation product. In some plants, perlite ore is ground to a controlled size before expansion. In others, expanded perlite is gently milled or classified into fine powders for insulation coatings, perlite-based boards, calcium silicate insulation, and lightweight joint compounds. Because expanded perlite is fragile, the grinding system must balance fineness with preservation of the porous structure. For raw ore grinding, the mill must handle abrasive silica-rich material and maintain stable output.

UAE processors also face specific challenges: high ambient temperatures, dust, limited water, and the need for continuous production. A modern perlite mill should therefore offer robust wear parts, efficient dust collection, low noise, and easy maintenance. Shanghai Zenith designs grinding equipment to meet these requirements.

Choosing the Right Perlite Mill for UAE Insulation Production

When selecting a perlite mill, insulation manufacturers should consider capacity, final fineness, moisture content, abrasiveness, energy consumption, and maintenance costs. The target product may range from 80 mesh to 325 mesh for common insulation fillers, or even finer for specialty coatings. For large-scale plants, vertical mills and trapezium mills are often preferred because they combine high throughput with efficient classification and drying.

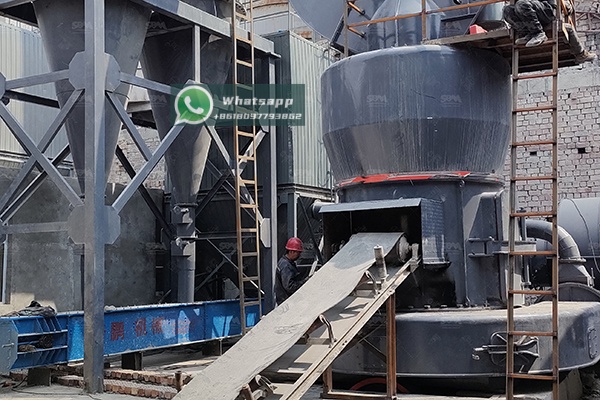

Recommended Product 1: MTW Trapezium Grinding Mill

Shanghai Zenith’s MTW Trapezium Grinding Mill is an excellent choice for perlite processing in the UAE. It is a patented mill known for compact structure, long service life, and eco-friendly operation. The MTW mill can process materials with a maximum feed size of 50 mm and produce final products as fine as 0.038 mm. Its capacity range, from 3 t/h to 45 t/h depending on the model, suits small and medium insulation manufacturers as well as larger suppliers.

For a typical perlite insulation powder line, models such as MTW138Z, MTW175G, and MTW215G offer strong performance. The MTW138Z can deliver 6-17 t/h, while the MTW175G reaches 9.5-25 t/h and the MTW215G reaches 15-45 t/h. The mill uses a curved blade and advanced classifier to improve grinding efficiency and product consistency. Its efficient fan, pulse dust collector, and sealed system help control dust, an important factor in UAE industrial zones. The wear-resistant rollers and ring ensure reliable operation when processing abrasive perlite ore.

Insulation producers can use the MTW mill to prepare fine perlite powder for lightweight insulating plasters, board cores, and cementitious insulation mortars. The adjustable fineness allows one system to serve multiple product grades, reducing capital expenditure and simplifying production planning.

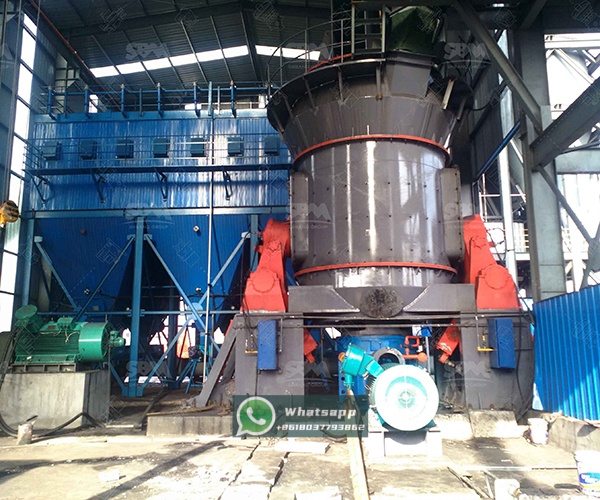

Recommended Product 2: LM Vertical Grinding Mill

For higher capacity and integrated processing, the LM Vertical Grinding Mill is an outstanding solution. It integrates crushing, grinding, powder selection, drying, and material conveying into one compact system. This design reduces occupied area, lowers civil construction costs, and improves production efficiency. In the hot and dry climate of the UAE, the LM mill’s ability to dry material using hot gas is a significant advantage for perlite processing.

The LM Vertical Mineral Mill Series includes models such as LM130K, LM190K, and LM280K. The LM130K has a plate diameter of 1300 mm and a capacity of 10-28 t/h. The LM190K offers 23-68 t/h, and the LM280K can reach 50-170 t/h, with output fineness from 170 to 40 μm. These capacities make the LM series ideal for large insulation material plants, industrial minerals processors, and projects that require continuous, high-volume perlite powder production.

Compared with traditional mills, the LM vertical mill has lower energy consumption per ton, less noise, and a smaller footprint. Its grinding rollers and table are designed for abrasive materials, and the built-in classifier ensures stable fineness. The system can be equipped with explosion-proof and dust-collection measures according to project requirements. For UAE insulation manufacturers aiming to scale up, the LM190K or LM280K can form the core of a modern perlite grinding plant.

Quality Control for Better Insulation Performance

Particle size control directly affects insulation performance. If the perlite powder is too coarse, the final board or mortar may have uneven density and poor surface finish. If it is too fine, water demand can increase, leading to shrinkage and higher binder consumption. A good mill should therefore provide adjustable classification and repeatable product fineness.

Shanghai Zenith also offers the XZM Ultrafine Grinding Mill and LUM Ultrafine Vertical Mill for specialty applications. The XZM mill can produce 325-2500 mesh powder, while the LUM mill can achieve D97 of 5-30 μm. These options are useful for advanced insulation coatings, high-performance fillers, and other value-added perlite products. However, for most insulation material producers in the UAE, the MTW Trapezium Mill and LM Vertical Mill provide the best balance of capacity, fineness, and cost.

Installation, Service, and Local Support

Shanghai Zenith Machinery Co., Ltd. is specialized in the research, development, and production of industrial powder grinding equipment. The company provides complete project support, including process design, equipment selection, installation guidance, commissioning, operator training, and spare parts supply. For UAE customers, this support can be coordinated with local logistics and service partners to minimize downtime. The company’s experience in ultra-fine powder grinding helps insulation producers achieve reliable operation and consistent product quality.

Whether a plant is located in Dubai, Abu Dhabi, Sharjah, or a free zone such as Jebel Ali, the equipment can be configured for local power supply, dust regulations, and material characteristics. Remote technical assistance and preventive maintenance programs further improve long-term profitability.

Conclusion: A Strategic Partner for Perlite Insulation in the UAE

The UAE construction market continues to demand energy-efficient, fire-safe, and lightweight insulation solutions. Perlite is well positioned to meet these needs, especially when it is processed with the right grinding technology. Shanghai Zenith’s MTW Trapezium Grinding Mill and LM Vertical Grinding Mill offer reliable, high-capacity, and eco-friendly solutions for perlite insulation manufacturers. By choosing the right mill, UAE producers can improve product quality, reduce energy costs, and strengthen their position in the growing insulation market.

For more information about perlite grinding solutions, contact Shanghai Zenith Machinery Co., Ltd. today.
