Limestone milling line for Zambia construction materials

1. Introduction: Zambia’s Growing Construction Sector

Zambia, a landlocked country in Southern Africa, has experienced steady economic growth and urbanization over the past decade. The demand for construction materials—such as cement, concrete blocks, tiles, and road aggregates—has surged alongside infrastructure projects and housing developments. Limestone, a sedimentary rock abundant in Zambia, is a key raw material for cement production and the manufacturing of building materials. To meet the quality and efficiency requirements of modern construction, Zambian enterprises need reliable and high-performance limestone processing solutions. A well-designed limestone milling line can turn raw limestone into fine powder (typically 200 mesh or finer) that serves as a filler in cement, plaster, or as a base for precast concrete products.

2. The Role of Limestone Milling in Construction Material Production

Limestone powder is widely used in the construction industry. In cement manufacturing, it acts as a clinker substitute, reducing CO2 emissions and lowering production costs. As a filler in asphalt and concrete, it improves workability and durability. For the production of dry-mix mortar, wall putty, and tile adhesives, limestone powder must be ground to a uniform fineness, typically with a particle size of 0.045 mm (325 mesh) or finer. The choice of grinding equipment directly affects the quality of the final product, energy consumption, and overall operational costs. Therefore, selecting the right grinding mill is crucial for Zambian construction material producers.

3. Challenges and Opportunities in Local Processing

Zambia’s limestone reserves are estimated at over 200 million tons, with major deposits in Lusaka, Ndola, and Kitwe. However, many local companies still rely on imported processed limestone powder, which increases logistics costs and delays project timelines. Establishing a local limestone milling line not only reduces dependency on imports but also creates jobs and supports the national industrialization agenda. Modern grinding mills must be robust enough to handle limestone with a typical Mohs hardness of 3–4, moisture content below 6%, and feed sizes up to 50 mm. They should offer high capacity, low energy consumption, and easy maintenance—all while meeting environmental standards for dust and noise control.

4. Shanghai Zenith Machinery: A Trusted Partner for Grinding Solutions

As an excellent manufacturer of ore grinding equipment in China, Shanghai Zenith Machinery Co., Ltd. has made great achievements in the field of ultra-fine powder grinding. Specializing in the research, development, and production of industrial powder grinding equipment, Zenith offers a comprehensive range of mills that cater to different capacity and fineness requirements. For a limestone milling line in Zambia, two products stand out: the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill. Both are proven in limestone applications worldwide and are designed for high efficiency and long service life.

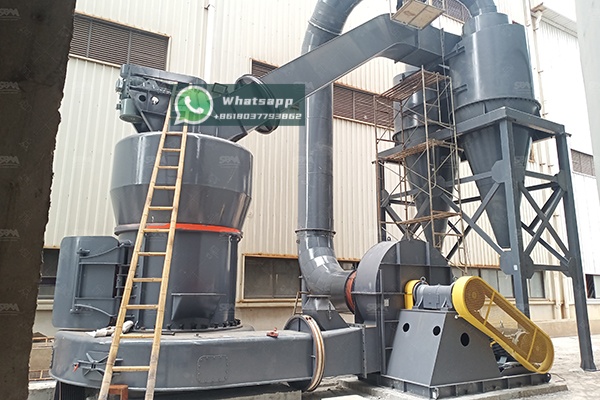

5. Recommended Product: MTW Trapezium Grinding Mill

The MTW Trapezium Grinding Mill is a multi-patented mill known for its compact structure, long service life, and eco-friendly design. It is ideal for processing materials with a maximum input size of 50 mm, producing a final product as fine as 0.038 mm (400 mesh). For a typical limestone milling line in Zambia with a required capacity of 10–20 t/h and final fineness of 200 mesh (0.074 mm), the MTW138Z or MTW175G models are excellent choices. Below are key parameters for reference:

The MTW mill features an internal classifier that ensures precise particle size control, and its trapezoidal grinding roller and ring design achieve higher grinding efficiency with lower power consumption. The entire system is sealed to prevent dust leakage, meeting both local and international environmental regulations. For Zambian producers, this translates into lower operating costs and a cleaner working environment.

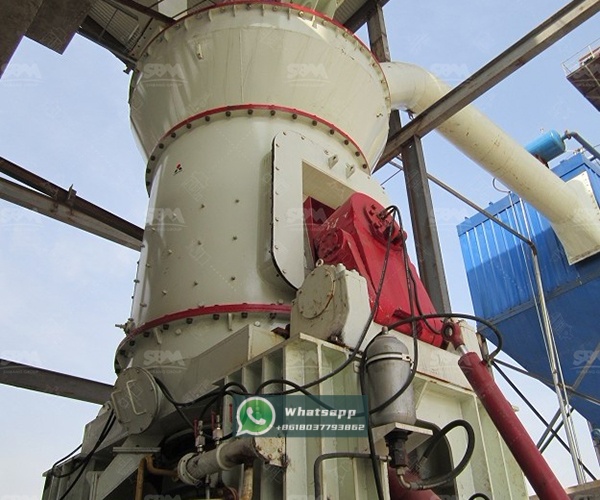

6. Alternative Recommendation: LM Vertical Grinding Mill

For larger-scale operations where space is limited and integrated drying is required, the LM Vertical Grinding Mill is an outstanding alternative. It integrates crushing, grinding, powder selection, drying, and material conveying into one machine. The LM series offers a small footprint, high drying capacity (suitable for limestone with moisture up to 15% when using hot air), and the ability to produce fineness from 170-40 microns (80-400 mesh). The LM190K model, with a plate diameter of 1900 mm, capacity of 23-68 t/h, and main motor power of 500 kW, is particularly suitable for large cement plants or limestone powder production lines. Its hydraulic roller system allows for easy adjustment and maintenance, reducing downtime.

7. Key Considerations for Setting Up a Limestone Milling Line in Zambia

When planning a limestone milling line, several factors must be evaluated:
– Raw material characteristics: Hardness, moisture, and feed size dictate the mill type and pre-processing needs (e.g., primary crushing).
– Target fineness and capacity: Determine mesh size (e.g., 200 mesh for cement, 325 mesh for wall putty) and required throughput.
– Power supply: Zambia’s grid reliability varies; mills with efficient motors and soft-start options minimize electrical stress.
– Local maintenance support: Zenith provides comprehensive after-sales services, including spare parts and technical training through its regional partners.
– Environmental compliance: Baghouse dust collectors and noise dampening may be required; Zenith mills are designed with built-in dust collection ports.

8. Implementation Example: A Typical 15 t/h Line

A typical limestone milling line in Zambia using the MTW175G could be configured as follows: a vibrating feeder → jaw crusher (reducing 300 mm rock to <40 mm) → bucket elevator → MTW175G mill → bag filter → screw conveyor → finished product silo. The entire system is controlled from a central PLC panel. With a fineness of 200 mesh D90, the line can produce 18–22 t/h, sufficient to supply a medium-sized cement plant or construction material factory. The annual output can reach 120,000–150,000 tons, significantly reducing the need for imported limestone powder.

9. Why Choose Shanghai Zenith?

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China, with decades of experience in the ultra-fine powder grinding field. The company’s main products—including MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill—have been exported to over 170 countries. For Zambia, Zenith offers customized solutions that consider local voltage (415V/50Hz), ambient temperature, and altitude. The company also provides on-site commissioning, operator training, and a 12-month warranty. By investing in a Zenith limestone milling line, Zambian construction material producers gain a competitive edge through reliable equipment, lower energy costs, and consistent product quality.

10. Conclusion

Zambia’s construction industry is poised for rapid expansion, and the local processing of limestone into high-quality powder is a strategic move for sustainable development. A modern limestone milling line equipped with Zenith’s advanced grinding mills—especially the MTW Trapezium Grinding Mill or LM Vertical Grinding Mill—can deliver the capacity, efficiency, and reliability needed to meet market demands. With proper planning and the right partner, Zambian enterprises can transform abundant natural resources into value-added construction materials, driving economic growth and infrastructure development. Contact Shanghai Zenith today to discuss your specific requirements and receive a tailored proposal.
