Carbon black grinding mill for Turkey plastic masterbatch

Introduction to Carbon Black in Plastic Masterbatch

Carbon black is one of the most widely used functional fillers in plastic masterbatch production. In Turkey, a fast-growing plastics market, masterbatch producers are constantly looking for ways to improve the dispersion, blackness and consistency of their carbon black compounds. The quality of the final masterbatch depends heavily on the fineness and uniformity of the carbon black powder. This is why choosing the right carbon black grinding mill is a strategic decision for Turkish processors.

Plastic masterbatch is a concentrated mixture of pigments or additives encapsulated in a carrier resin. Carbon black masterbatch is used for coloring films, pipes, cables, automotive parts and packaging. If the carbon black agglomerates are not sufficiently ground, the final product will exhibit surface defects, poor mechanical properties and uneven color. A reliable grinding system from an experienced manufacturer such as Shanghai Zenith Machinery Co., Ltd. can deliver the precise particle size distribution required by Turkey’s masterbatch industry.

Why Carbon Black Grinding Is Demanding

Carbon black is chemically stable but physically difficult to handle. Its primary particles are extremely fine, often in the nanometer range, yet they form strong agglomerates due to van der Waals forces. These agglomerates need to be broken down to micrometer level in order to achieve good dispersion in the polymer matrix. The material also has low density and can easily become airborne, so the mill must be sealed and dust-proof. Additionally, carbon black can coat mill internals, leading to lower efficiency and increased maintenance.

Many conventional mills struggle with carbon black because it is soft, cohesive and abrasive. Excessive grinding energy can cause temperature rise and re-agglomeration. Therefore, the ideal carbon black grinding mill must combine intensive shear, precise classification, and temperature control. This is exactly where Zenith’s advanced grinding technology stands out.

Key Requirements for a Carbon Black Grinding Mill

• Ultrafine and adjustable fineness, typically D97 between 5 and 30 micrometers for masterbatch applications.
• High capacity with low energy consumption to support continuous industrial production.
• Integrated drying or effective moisture control to handle carbon black with varying moisture content.
• Sealed, dust-free operation to comply with environmental and safety regulations.
• Easy maintenance and quick cleaning to minimize downtime between color changes.

Zenith’s equipment is engineered to meet these requirements. As an excellent manufacturer of ore grinding equipment in China, Shanghai Zenith Machinery Co., Ltd. has extensive experience in the field of ultra-fine powder grinding.

Shanghai Zenith Machinery: A Trusted Grinding Solution Provider

Shanghai Zenith Machinery Co., Ltd. specializes in the research, development and production of industrial powder grinding equipment. The company’s main products include the MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill and Hammer Mill. Among these, the LUM Ultrafine Vertical Mill and XZM Ultrafine Grinding Mill are the most suitable choices for carbon black masterbatch production in Turkey.

Recommended Zenith Carbon Black Grinding Mills

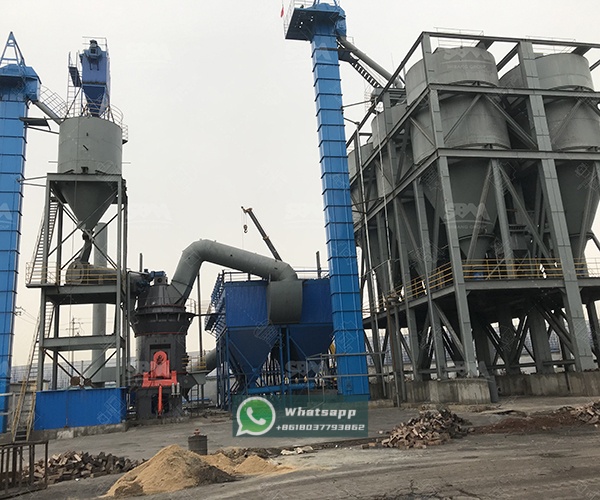

1. LUM Ultrafine Vertical Mill

The LUM Ultrafine Vertical Mill is an excellent solution for Turkish plastic masterbatch producers who need high throughput and stable ultrafine output. The machine integrates grinding, drying, classifying and transportation in one unit, which greatly simplifies the production line. LUM is known for its compact space requirement, intelligent control and easy maintenance. The classifier system ensures that the final powder has a high content of end-fines and a narrow particle size distribution.

For carbon black grinding, the LUM series offers a capacity range of 1.6 to 15 t/h depending on model and fineness. The main machine power ranges from 220 to 400 kW. The product size distribution can be controlled to D97 5-30 micrometers, which is ideal for high-quality plastic masterbatch. Models such as LUM1525, LUM1632 and LUM1836 allow Turkish customers to select the right scale for their production needs.

• Main machine power: 220-400 kW
• Capacity: 1.6-15 t/h
• Fine output: D97 5-30 μm
• Integrated functions: grinding, drying, classifying, conveying

2. XZM Ultrafine Grinding Mill

The XZM Ultrafine Grinding Mill is another excellent option, especially for smaller production lines or when a very fine final product is required. It is widely used for superfine powder production and is suitable for soft or medium-hard materials with moisture content below six percent. Carbon black, after proper handling, fits well within this application range. XZM can produce powder with a fineness from 325 to 2500 mesh, making it highly flexible for different masterbatch recipes.

The XZM221 model has a working diameter of 800 mm, a maximum feed size of 20 mm, and an output capacity of 500 to 4500 kg/h. The XZM268 model is larger, with a working diameter of 1680 mm and an output capacity of 5000 to 25000 kg/h. Both models are equipped with main motors of 75 kW and 315 kW respectively. These mills are ideal when Turkish manufacturers need to produce small or medium batches of high-grade carbon black masterbatch with precise fineness.

• Final fineness: 325-2500 mesh
• Maximum feed size: ≤20 mm
• XZM221 capacity: 500-4500 kg/h
• XZM268 capacity: 5000-25000 kg/h

Why These Mills Suit Turkey’s Plastic Masterbatch Market

Turkey is one of Europe’s largest plastic processors, with a strong masterbatch sector serving packaging, construction and automotive industries. Local manufacturers often face fluctuating raw material quality, high energy costs and strict environmental regulations. The LUM and XZM mills from Zenith address these challenges by offering high efficiency, compact design and reliable classification. In addition, Zenith’s grinding machines are designed for easy integration with existing drying, conveying and dust collection equipment.

Another key benefit is the ability to adjust fineness quickly. Masterbatch production sometimes requires different grades of carbon black for different end uses, from black films to engineering plastics. The classifier speed in Zenith mills can be changed to achieve the desired particle size without stopping the production process. This flexibility is valuable for a dynamic market such as Turkey.

Process Considerations for Carbon Black Masterbatch

When designing a carbon black grinding plant, it is important to consider the whole process: feeding, grinding, classifying and collecting. Carbon black should be fed continuously and evenly. A rotary valve or screw feeder can prevent air leakage. After grinding, the classified powder is collected by a bag filter or cyclone. Zenith can provide a complete system proposal to ensure seamless operation.

Moisture content is another critical factor. If the carbon black is too wet, LUM’s integrated drying function can remove moisture in the grinding chamber. For XZM, the feed moisture should be controlled below six percent. In either case, a small rotary dryer or hot air generator can be installed upstream. Zenith’s engineers can help Turkish customers design the most energy-efficient solution.

Conclusion

For Turkey’s plastic masterbatch producers, carbon black grinding is not just a size-reduction step; it is the foundation of product quality and cost efficiency. A properly selected grinding mill reduces waste, improves dispersion, and increases production reliability. Shanghai Zenith Machinery Co., Ltd. offers proven solutions with the LUM Ultrafine Vertical Mill and XZM Ultrafine Grinding Mill. With a wide range of capacities, precise particle size control and robust construction, these machines are well positioned to support the growth of Turkey’s masterbatch industry.

To choose the right model, customers should evaluate their required throughput, input material characteristics and target fineness. Zenith’s knowledgeable team can recommend the optimal configuration, from a single mill to a complete turnkey system. Investing in a high-quality carbon black grinding mill from Zenith means investing in a competitive advantage in the Turkish and global plastics market.
