Limestone grinding mill for 30tph Malaysia cement plants

Introduction

Malaysia’s cement industry has experienced steady growth driven by infrastructure development and urbanization. For cement plants operating at a capacity of 30 tons per hour (tph) for limestone grinding, selecting the right mill is critical to ensure product quality, energy efficiency, and operational reliability. Limestone, as the primary raw material for cement clinker, must be ground to a fine powder (typically 80% passing 200 mesh or 75 microns) to facilitate the subsequent calcination and blending processes. This article explores the key considerations for choosing a limestone grinding mill for a 30tph cement plant in Malaysia and recommends high-performance solutions from Shanghai Zenith Machinery Co., Ltd., a leading manufacturer of ore grinding equipment in China.

The Malaysian Cement Landscape

Malaysia is one of the largest cement producers in Southeast Asia, with major players like YTL Cement, Lafarge Malaysia, and CMS Cement. The country’s cement demand is fueled by large-scale projects such as the East Coast Rail Link, Pan-Borneo Highway, and various housing and commercial developments. Most cement plants utilize dry process technology, which requires efficient and consistent grinding of limestone. A 30tph capacity is typical for mid-sized cement plants or as a dedicated grinding station for a larger facility. The choice of mill must balance capital expenditure, operating costs, and the ability to handle limestone with varying moisture and hardness.

Key Technical Requirements for 30tph Limestone Grinding

When designing a grinding circuit for 30tph limestone, several parameters must be carefully evaluated:

• Feed Size: Typical quarry-run limestone has a maximum feed size of 30–50 mm. The mill must accept this without pre-crushing if possible, or with minimal secondary crushing.
• Product Fineness: Cement raw meal typically requires 80% passing 200 mesh (75 μm) or 90% passing 90 μm. Some plants may require finer products for special cement types.
• Moisture Content: Limestone can contain up to 5–10% moisture. Drying capacity must be integrated if the mill does not include a drying system.
• Energy Consumption: Electricity costs in Malaysia are moderate but significant. A mill with high grinding efficiency and low specific power consumption (kWh/t) reduces operational expenses.
• Maintenance and Reliability: Given the continuous operation of cement plants, the mill must offer robust construction and easy maintenance to minimize downtime.

Why Choose a Vertical Roller Mill or Trapezium Mill?

For a 30tph requirement, two technologies stand out: vertical roller mills (VRM) and trapezium mills. Both have proven track records in the cement industry. VRMs (such as Zenith’s LM Vertical Grinding Mill) integrate crushing, grinding, drying, and classification in one unit. They offer high drying efficiency, low noise, and compact footprint. Trapezium mills (Zenith’s MTW Series) are well-known for their reliability and ability to produce consistent fineness with lower capital investment. The selection depends on the specific plant layout and budget.

Recommended Products for 30tph Limestone Grinding

Based on extensive field experience and product performance data, Shanghai Zenith Machinery Co., Ltd. recommends the following mills for a 30tph limestone grinding application in Malaysia:

MTW215G Trapezium Grinding Mill

The MTW215G is a flagship trapezium mill with a proven capacity range of 15–45 t/h (depending on feed size and fineness). Its key features include:

• Maximum feed size up to 50 mm, allowing direct feeding from a primary crusher.
• Final product fineness adjustable from 1.6 mm to 0.038 mm (10–400 mesh). For cement raw meal (80% < 75 μm), it can achieve 30 tph with ease.
• Main motor power of 280 kW and fan motor of 315 kW, with a specific power consumption of around 20–25 kWh/t for limestone grinding.
• Patented trapezium grinding ring and roller design increases grinding efficiency by 30% compared to traditional Raymond mills.
• Integrated classifier ensures uniform particle size distribution.

The MTW215G is ideal for Malaysian cement plants seeking a balance between initial cost and operating efficiency. Its robust structure withstands the abrasive nature of limestone and ensures long service life.

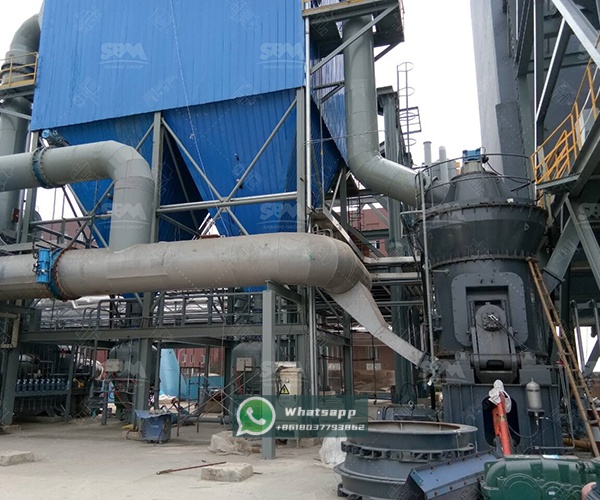

LM190K Vertical Grinding Mill

For plants prioritizing energy savings and a smaller footprint, the LM190K vertical mill offers a capacity of 23–68 t/h, perfectly covering the 30tph requirement. Its specifications include:

• Grinding table diameter of 1900 mm.
• Maximum feed size of 45 mm.
• Product fineness: 170–40 μm (equivalent to 80–400 mesh).
• Main motor power of 500 kW, but with lower overall system power due to high grinding efficiency.
• Drying capacity up to 12% moisture through hot gas inlet, eliminating the need for separate dryer.
• Low vibration and noise levels.

The LM190K’s integrated drying, grinding, and classification reduces the number of auxiliary equipment and simplifies plant layout. For Malaysian cement plants with high moisture limestone, this is a superior choice.

Comparison and Selection Guidance

Both the MTW215G and LM190K can reliably deliver 30 tph of limestone powder. The table below summarizes key differences:

A plant with dry limestone (moisture < 5%) and limited budget would benefit from the MTW215G. If the limestone has higher moisture content or the plant wishes to minimize auxiliary equipment, the LM190K is recommended.

Installation and After-Sales Support

Shanghai Zenith Machinery Co., Ltd. provides comprehensive services including site survey, foundation design, installation supervision, and commissioning. For Malaysian clients, we have a regional sales and service network to ensure prompt technical support and spare parts supply. Our mills are manufactured with strict quality control and ISO 9001 certification, guaranteeing long-term performance.

Conclusion

Selecting the right limestone grinding mill for a 30tph cement plant in Malaysia is a strategic decision that impacts production cost and product quality. Both the MTW215G Trapezium Mill and the LM190K Vertical Mill from Shanghai Zenith Machinery offer proven solutions with different advantages. With over 30 years of experience in powder grinding technology and a complete product line, Zenith is well-positioned to support Malaysian cement producers in achieving their operational goals. Contact our team today for a tailored equipment recommendation and quotation.
