Feldspar grinding mill for ceramic glaze in Vietnam

Feldspar grinding mill for ceramic glaze in Vietnam

Vietnam is one of the fastest-growing ceramic producers in Southeast Asia. From wall and floor tiles to sanitaryware, tableware, and art ceramics, the country’s manufacturers require consistent, well-classified raw materials. Feldspar is among the most important of these materials. It acts as a flux in ceramic glaze, reducing the maturing temperature and promoting vitrification. When feldspar powder is not ground correctly, glaze defects such as pinholing, crawling, uneven gloss, and poor suspension can appear. This is why selecting the right feldspar grinding mill for ceramic glaze in Vietnam is a critical investment decision.

Role of Feldspar in Ceramic Glaze

Feldspar provides alkalis such as sodium and potassium that react with silica and alumina during firing. In glaze formulations, it lowers the melting point, helps form a smooth glassy surface, and improves mechanical strength, chemical durability, and thermal shock resistance. In Vietnam, both sodium feldspar and potassium feldspar are used, depending on the ceramic body and glaze type. The raw material usually has a Mohs hardness of about 6 to 6.5, which makes it abrasive and requires wear-resistant grinding equipment. It may also contain iron-bearing minerals, so iron contamination must be controlled to avoid dark spots and color variation.

Why Particle Size Control Matters

The performance of feldspar in a glaze depends heavily on particle size distribution. A typical ceramic glaze may require feldspar ground to 200 mesh, 325 mesh, or even finer for high-quality glossy glazes. In many modern formulations, a D97 between 45 microns and 10 microns is preferred, because finer particles melt more uniformly and react faster. However, over-grinding increases energy consumption and can cause excessive shrinkage or rheological problems in the glaze slurry. Therefore, the ideal mill must combine adjustable fineness, efficient classification, stable capacity, and low operating cost.

Key Selection Criteria for Vietnamese Ceramic Plants

• Fineness range: the ability to produce 200-325 mesh and, when needed, ultrafine powder below 45 microns.
• Capacity: small tableware lines may need 1-5 t/h, while large tile factories may require 10-45 t/h.
• Energy efficiency: electricity is a major cost in Vietnam, so grinding efficiency directly affects profitability.
• Wear resistance: feldspar is abrasive, so grinding rollers, rings, and liners must have long service life.
• Dust collection: a closed system with pulse dust collector is required for a clean workplace and environmental compliance.
• Moisture and climate: Vietnam’s humid conditions require reliable drying or moisture control in the grinding circuit.
• Service and spare parts: local technical support and fast spare parts delivery reduce downtime.

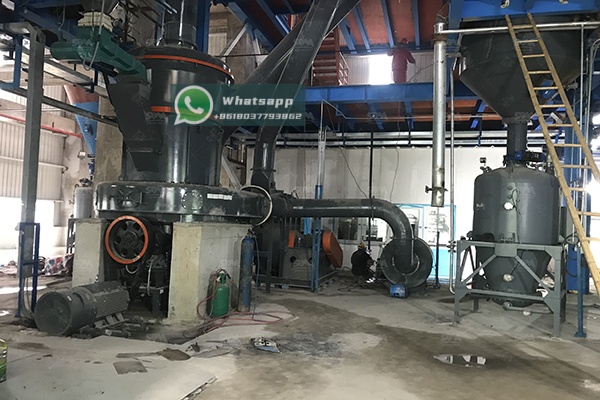

Recommended Product: MTW Trapezium Grinding Mill

For most ceramic glaze feldspar projects in Vietnam, Shanghai Zenith Machinery recommends the MTW Trapezium Grinding Mill. This mill is a patented, compact, and eco-friendly grinding solution. It accepts feed sizes up to 50 mm and can produce final products as fine as 0.038 mm, which covers the common 325 mesh glaze requirement. The MTW series uses a curved blade, high-density classifier, bevel gear transmission, and efficient fan system to improve grinding efficiency and reduce energy consumption. Its pulse dust collector and sealed structure help meet strict dust emission standards, an important advantage for plants near urban or industrial zones.

For a medium-sized Vietnamese tile or sanitaryware factory, the MTW138Z or MTW175G is often an excellent choice. The MTW138Z offers 6-17 t/h, while the MTW175G provides 9.5-25 t/h at 0.045 mm. For very large glaze preparation centers, the MTW215G can reach 15-45 t/h. These capacities allow producers to match mill output with kiln demand and avoid excessive powder storage.

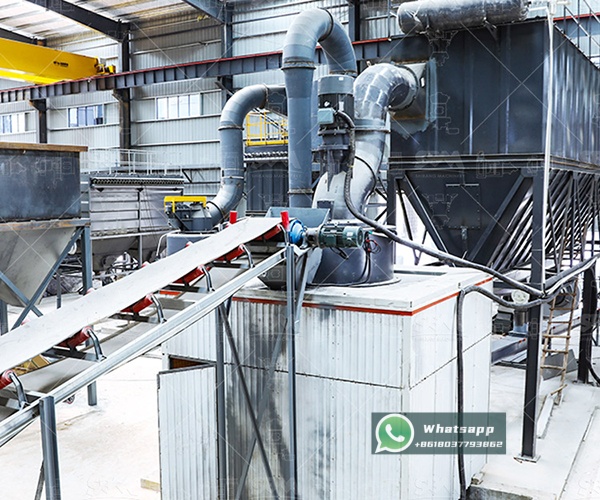

Recommended Product: XZM Ultrafine Grinding Mill

When the glaze formula requires superfine feldspar, especially for high-end tableware, porcelain tiles, and special glazes, the XZM Ultrafine Grinding Mill is the ideal solution. It is designed for superfine powder production and can achieve 325-2500 mesh. The XZM series is suitable for soft and medium-hard materials with moisture content below 6%, making it a strong option for dry-processed feldspar. Its classifier allows precise top-size control, and the system can be equipped with pulse dust collection and automatic control for stable, clean operation.

For a small to medium glaze line, XZM221 can produce 0.5-4.5 t/h of ultrafine feldspar powder. For industrial-scale superfine production, XZM268 can reach 5-25 t/h. This flexibility makes it possible to produce different glaze grades from the same raw feldspar source, improving product range and market competitiveness.

Typical Feldspar Powder Processing Flow

1. Raw feldspar is crushed by jaw crusher or hammer crusher to below the mill feed size.
2. Material is fed evenly into the grinding mill by an electromagnetic vibrating feeder or belt feeder.
3. The grinding mill pulverizes feldspar between rollers and ring, or within the vertical grinding zone, depending on the selected model.
4. A classifier separates fine powder from coarse particles, returning oversize material for further grinding.
5. The finished powder enters a pulse dust collector and is discharged through an airlock.
6. Optional magnetic separation removes iron particles to protect glaze color and quality.
7. Final powder is stored in a silo or packed for batch glaze preparation.

Why Choose Shanghai Zenith Machinery

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. The company specializes in research, development, and production of industrial powder grinding equipment and related devices. Its main products include the MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. This broad product range means that Zenith can configure a complete feldspar grinding plant rather than simply supplying one machine. For Vietnamese ceramic producers, Zenith can support capacity selection, fineness optimization, dust control, electrical configuration, installation, and operator training.

In addition, Shanghai Zenith can provide wet ball mills for plants that prefer wet grinding and slurry preparation. The Ball Mill is widely used in metallurgy, chemistry, cement, and ceramic industries. It offers high adaptability to raw materials, continuous production, and easy adjustment of final product fineness. For ceramic glaze lines that combine dry and wet processing, Zenith can design a hybrid solution using MTW or XZM for dry fine grinding and a ball mill for wet milling and mixing.

Conclusion

Vietnam’s ceramic industry continues to expand, and competition is increasing in both domestic and export markets. High-quality feldspar powder is essential for consistent glaze performance, smooth surface finish, and reduced firing defects. The MTW Trapezium Grinding Mill is an excellent choice for general 200-325 mesh feldspar production with capacities from 3 t/h to 45 t/h. The XZM Ultrafine Grinding Mill is ideal when finer powder and tighter particle size distribution are required. By selecting the right equipment from Shanghai Zenith Machinery, Vietnamese ceramic glaze manufacturers can improve product quality, lower energy consumption, and build a reliable long-term powder supply.
