Limestone grinding mill for 150 mesh powder in Qatar

Introduction: Limestone Powder and the Qatari Market

Qatar is investing heavily in infrastructure, smart cities, ports, airports, stadiums, and industrial facilities. Limestone is one of the most important industrial minerals in the country and across the Gulf region. Limestone powder, especially 150 mesh powder, is widely used as a filler in concrete, asphalt, paints, coatings, plastics, and sealants. It is also used in cement production, soil stabilization, glass manufacturing, and flue gas desulfurization. Processing limestone locally reduces transport costs and secures supply for construction projects. For investors in Qatar, choosing the right limestone grinding mill for 150 mesh powder is critical. The equipment must deliver stable output, precise fineness, low energy consumption, and reliable operation in hot and dusty conditions. Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. We specialize in research, development, and production of industrial powder grinding equipment and related devices. Our main products include MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill.

What Does 150 Mesh Limestone Powder Mean?

Mesh size is a common way to describe powder fineness. A 150 mesh sieve has openings of approximately 100 microns, or 0.1 mm. In many industrial specifications, 150 mesh limestone powder may be defined by a D97 value near 100 microns, meaning that 97 percent of the particles pass the target size. This fineness is coarse enough for high production rates and fine enough for many construction and industrial applications. Typical raw limestone feed can be 0 to 30 mm, 0 to 40 mm, or larger, depending on quarry blasting and crushing. Moisture content may vary from less than 1 percent in dry climates to 6 percent or more after rainy periods or washing. In Qatar, natural limestone is often hard, abrasive, and dry, but it can still contain silica and other hard minerals. Therefore, the grinding mill must be durable and the wear parts must have a long service life.

Key Requirements for Limestone Grinding in Qatar

Qatar has a hot desert climate with high ambient temperatures, airborne dust, and limited water resources. A limestone grinding plant in Qatar should be designed for continuous operation, high dust collection efficiency, and low maintenance. Important requirements include: stable production of 150 mesh powder, capacity matched to market demand, low power consumption per ton, effective dust control to meet environmental rules, heat-resistant electrical components, and an automated control system for easy operation. A complete plant usually includes a jaw crusher or hammer crusher, a feeder, a grinding mill, a classifier, a cyclone collector, a bag filter, an air blower, conveyors, a storage silo, and a packing machine. If the limestone is wet, a drying function or hot air generator may be required. Shanghai Zenith can provide a complete customized solution based on the customer’s capacity, feed size, moisture, and final powder specification.

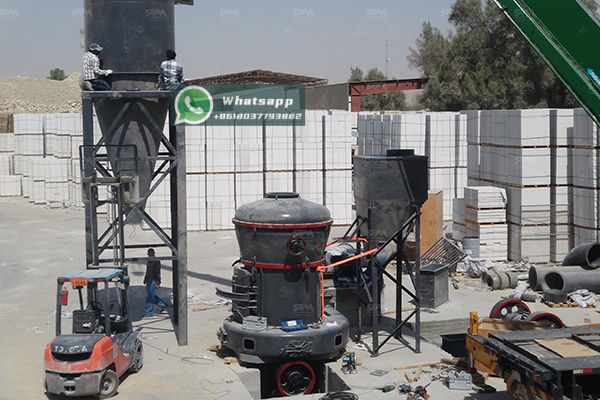

Recommended Product 1: MTW Trapezium Grinding Mill

The MTW Trapezium Grinding Mill is a flagship product from Shanghai Zenith. It is a grinding mill with multiple patents, known for its compact structure, long service life, and eco-friendly design. It is suitable for processing materials with a maximum input size of 50 mm, producing a final product as fine as 0.038 mm. For 150 mesh limestone powder, the MTW mill is an excellent choice because it can produce 100 micron powder with high efficiency and consistent quality. The MTW mill uses advanced curved blades, a high-efficiency classifier, a bevel gear transmission, and an internal lubrication system. These features reduce vibration, improve powder selection accuracy, and extend maintenance intervals. Available models include MTW110, MTW110Z, MTW138Z, MTW175G, and MTW215G. For a small to medium limestone powder line in Qatar, the MTW138Z offers 6-17 t/h. For a larger operation, the MTW175G offers 9.5-25 t/h, and the MTW215G offers 15-45 t/h. The final size range of 1.6-0.045 mm covers 150 mesh easily, and the operator can adjust the classifier to keep the product within the required specification.

MTW Trapezium Grinding Mill Technical Parameters

For most Qatar limestone 150 mesh projects, we recommend the MTW138Z or MTW175G. The MTW138Z is suitable for a compact production line, while the MTW175G provides more capacity for a commercial powder plant. Both models can be equipped with a variable frequency classifier, an automatic lubrication system, and a pulse jet dust collector.

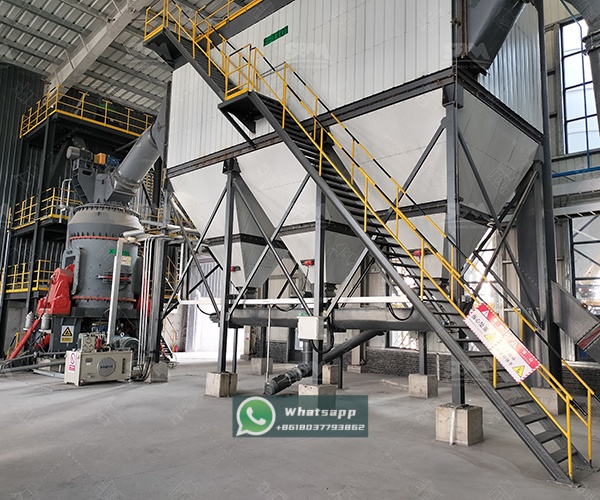

Recommended Product 2: LM Vertical Grinding Mill

For higher capacity and more integrated processing, the LM Vertical Grinding Mill is highly recommended. The LM Vertical Grinding Mill integrates five functions: crushing, grinding, powder selection, drying, and material conveying. It occupies a small footprint, produces a fine final powder, and is an eco-friendly production solution. The vertical mineral mill series can produce output fineness from 170 to 40 microns, which includes the 100 micron target for 150 mesh limestone powder. The LM mill has a vertical grinding roller and grinding plate, so it uses the material bed grinding principle. This reduces energy consumption and wearing of parts compared with traditional ball mills. The built-in classifier can be adjusted to control the final particle size. Because the mill uses hot air to dry material during grinding, it is very suitable for limestone that contains some moisture. In Qatar, this drying capability is useful when raw material is stored outdoors or washed before grinding.

LM Vertical Mineral Mill Technical Parameters

For a medium-size Qatar limestone powder plant, the LM130K can produce 10-28 t/h of 150 mesh powder. For a large commercial plant or a cement-related project, the LM190K and LM280K are excellent choices. They provide high capacity, stable operation, and low operating cost per ton. Shanghai Zenith can also supply the vertical coal mill, vertical slag mill, and vertical fine-powder mill series for other industrial applications.

How to Choose Between MTW and LM for 150 Mesh Limestone

The choice between the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill depends on project scale, budget, raw material moisture, and site layout. If the required capacity is below 20 t/h and the limestone is dry, the MTW138Z or MTW175G is often the most cost-effective solution. It has a compact structure, simple foundation, and flexible installation. If the required capacity is above 20 t/h, or if the raw limestone has higher moisture and needs drying, the LM Vertical Grinding Mill is usually more efficient. The LM mill has a smaller footprint per ton of output, lower noise, and lower power consumption. It also integrates drying and classification, which reduces the number of auxiliary machines. For very large projects in Qatar, such as a 50-100 t/h limestone powder plant, the LM190K or LM280K is the preferred solution.

Complete Grinding Plant and Quality Control

A complete 150 mesh limestone grinding plant from Shanghai Zenith can include a primary jaw crusher, a secondary hammer crusher, a vibrating feeder, a belt conveyor, the grinding mill, a high-efficiency classifier, a cyclone collector, a pulse bag filter, an air blower, a screw conveyor, a storage silo, and an automatic packing machine. The plant can be controlled by a PLC system with a touch screen. Operators can monitor motor current, bearing temperature, air flow, product fineness, and production rate. For Qatar, we recommend heat insulation for electrical cabinets, high-temperature grease, dust-proof seals, and a centralized dust collection system. Regular sampling and sieve analysis are important to maintain 150 mesh quality. Shanghai Zenith provides installation guidance, commissioning, training, and spare parts support to ensure smooth operation.

Why Shanghai Zenith Machinery Co., Ltd.

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. We are specialized in the research, development, and production of industrial powder grinding equipment and other related devices. Our main products include the MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. With decades of experience, advanced manufacturing facilities, and a professional engineering team, we can design a customized limestone grinding solution for Qatar customers. Our equipment has been exported to many countries and regions, and our service network provides timely technical support.

Conclusion

For 150 mesh limestone powder production in Qatar, the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill are two outstanding solutions. The MTW mill is ideal for small to medium dry grinding lines, while the LM vertical mill is best for large capacity, integrated drying, and energy-efficient production. Both can reliably produce approximately 100 micron limestone powder for concrete, asphalt, cement, coatings, and other industries. To select the correct model, customers should provide the required capacity, maximum feed size, moisture content, target mesh, and site conditions. Shanghai Zenith Machinery Co., Ltd. is ready to help Qatar customers build a successful limestone grinding plant. Contact us today for a professional quotation and technical proposal.
