Petroleum coke grinding mill for India metallurgy

Introduction: The Growing Demand for Petroleum Coke in Indian Metallurgy

India’s metallurgical industry, a cornerstone of the nation’s industrial growth, has witnessed a steady increase in the consumption of petroleum coke (petcoke) as a cost-effective fuel and carbon source. Petcoke, a by-product of oil refining, offers high calorific value, low ash content, and abundant availability, making it an ideal substitute for coal in processes such as cement manufacturing, steelmaking (in blast furnaces and electric arc furnaces), and non-ferrous metal smelting. However, to unlock its full potential, petcoke must be ground into a fine, uniform powder with specific particle size distribution—typically 200 mesh (75 μm) to 325 mesh (45 μm) for injection into furnaces or for use in anodes. This demands robust, efficient, and reliable grinding equipment capable of handling the abrasive and sometimes sticky nature of petcoke while delivering consistent output under India’s challenging operating conditions (high ambient temperatures, variable humidity, and frequent power fluctuations).

Choosing the right grinding mill is critical for metallurgical operators aiming to reduce production costs, improve combustion efficiency, and meet environmental norms. Shanghai Zenith Machinery Co., Ltd., an excellent manufacturer of ore grinding equipment in China, has made great achievements in the field of ultra-fine powder grinding. Specializing in the research, development, and production of industrial powder grinding equipment, Zenith offers a comprehensive range of mills that are perfectly suited for petcoke processing in India. This article provides a technical overview of petroleum coke grinding requirements and presents the most suitable Zenith solutions for the Indian metallurgy sector.

Characteristics of Petroleum Coke and Grinding Challenges

Petroleum coke is a carbonaceous solid derived from the coker units in oil refineries. For metallurgical applications, two main types are used: fuel-grade petcoke (high sulfur, high metals, used for power and heat) and anode-grade petcoke (low sulfur, high purity, used in aluminum smelting and steelmaking). Key properties affecting grinding include:

• Hardness & Abrasiveness: Petcoke has a Mohs hardness of 2-3 (similar to coal), but its porous structure can cause rapid wear on grinding elements if not properly designed.
• Moisture Content: Typically 1-8%, which may require drying during grinding to prevent clogging.
• Volatile Matter: High volatile content (up to 15%) can pose fire risks, necessitating inert gas or explosion-proof designs in the mill system.
• Stickiness: Some petcokes have a sticky, tar-like surface that can agglomerate, causing build-up in classifiers and ducts.

Therefore, a mill for petcoke must feature robust wear protection, efficient drying capacity (if needed), explosion-proof design (e.g., nitrogen purge), and a classifier capable of producing sharp cut points at the desired fineness. In India, where many metallurgical plants are located in remote areas with limited maintenance expertise, the mill must also be easy to operate and maintain.

Zenith’s Recommended Grinding Mills for Petcoke in India

Based on extensive experience and successful installations worldwide, Zenith offers two outstanding mill types that are particularly well-suited for petroleum coke grinding in Indian metallurgy: MTW Trapezium Grinding Mill and LM Vertical Grinding Mill. Both have proven track records in handling carbonaceous materials and can be customized to meet specific requirements of Indian customers, including high capacity, ultra-fine product, and low operating costs.

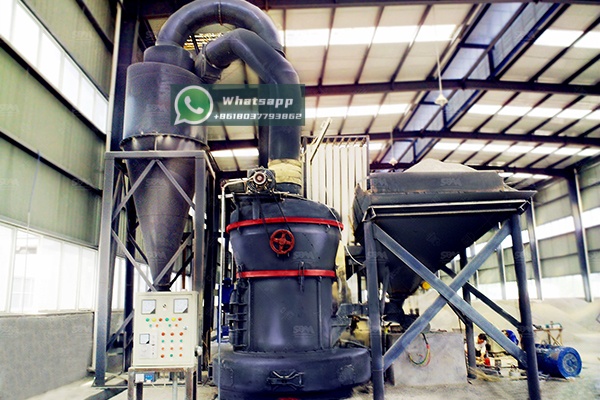

1. MTW Trapezium Grinding Mill – Ideal for Medium-to-Fine Grinding

The MTW series is a multi-patented grinding mill known for its compact structure, long service life, and eco-friendly design. It is especially suitable for processing petcoke with a maximum feed size of 50 mm, delivering a final product fineness down to 0.038 mm (400 mesh). Key features for petcoke applications include:

• Patented Curved Air Channel: Reduces resistance and improves airflow, enhancing grinding efficiency and preventing material accumulation.
• High-Density Separator: Equipped with a high-efficiency classifier that can achieve precise cut points required for metallurgical injection (e.g., 200 mesh 80% passing).
• Durable Grinding Components: Made from wear-resistant alloys, extending overhaul intervals even with abrasive petcoke.
• Flexible Options: The mill can be configured with a hot air system for drying if the petcoke moisture is high, and explosion-proof electrical components are available.

Recommended Model for India Metallurgy: The MTW138Z or MTW175G are excellent choices for medium-scale operations (6–25 t/h). For larger plants, the MTW215G can handle up to 45 t/h with a final size of 1.6–0.045 mm. Below are key parameters for reference:

For customers seeking a proven, cost-effective solution with lower initial investment, the MTW Trapezium Mill stands out. Its gearbox and main shaft design ensure stable operation even under 24/7 shifts, a common requirement in Indian steel plants.

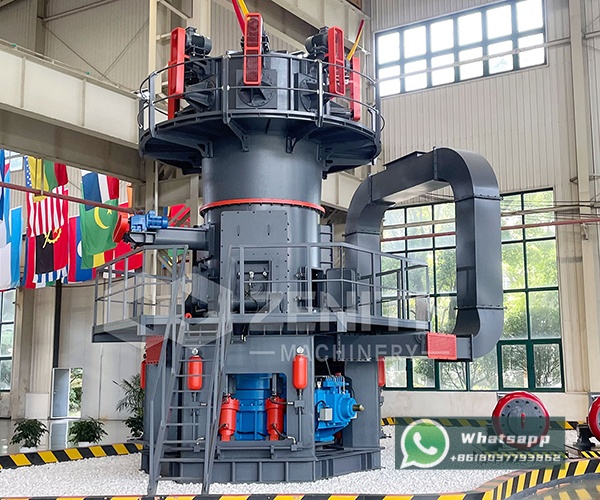

2. LM Vertical Grinding Mill – For High-Capacity, Integrated Production

When metallurgical operators in India require very high throughput (above 50 t/h) or wish to combine grinding, drying, and classification in one unit, the LM Vertical Grinding Mill is the optimal choice. This mill integrates five functions—crushing, grinding, powder selection, drying, and material conveying—into a single machine, resulting in a smaller footprint and lower energy consumption per ton of product. For petcoke, the LM series offers:

• High Grinding Efficiency: The grinding rollers and table are designed with a special curve profile that maximizes contact area and reduces vibration.
• Integrated Drying System: Hot air can be introduced into the mill to dry petcoke with moisture up to 15%, eliminating the need for a separate dryer.
• Advanced Classifier: The rotary classifier can adjust fineness from 170 μm to 40 μm (80–400 mesh), meeting the exact needs of blast furnace injection or anode paste.
• Low Maintenance: Rollers can be turned out for maintenance without disassembling the mill body, reducing downtime—a critical advantage in remote Indian locations.

Recommended Models for India: The LM130K (capacity 10–28 t/h) is suitable for smaller plants, while the LM190K (23–68 t/h) and LM280K (50–170 t/h) serve medium-to-large metallurgical complexes. For ultra-fine petcoke (e.g., 325 mesh for aluminum smelting), the LM130X-GX or LM220X-GX fine-powder mill can deliver D97 = 325–600 mesh with high efficiency.

Why Choose Shanghai Zenith for Your Petcoke Grinding Needs in India?

Shanghai Zenith Machinery Co., Ltd. combines decades of experience with a strong service network in India. Here are additional advantages that make Zenith the preferred partner for Indian metallurgical projects:

• Customized Solutions: Zenith engineers analyze the specific petcoke properties (Hardgrove Grindability Index, moisture, sulfur content) and the client’s target fineness to recommend the optimal mill configuration, including dust collection, explosion-proof measures, and automation level.
• Proven References: Several petcoke grinding plants in Gujarat, Maharashtra, and Odisha have successfully adopted Zenith mills, achieving consistent product quality and energy savings of 15–30% compared to traditional ball mills.
• After-Sales Support: Zenith offers local service centers, spare parts warehouses, and technical training in India, ensuring minimum downtime and maximum uptime.
• Compliance with Indian Standards: All equipment can be supplied with CE, ISO, and Indian boiler/electrical certifications, and safety features meet the strict guidelines of the Directorate General of Factory Advice & Labour Welfare (DGFASLI).

Conclusion

As India’s metallurgical industry continues to expand, the efficient grinding of petroleum coke will play a pivotal role in reducing reliance on imported coal and improving overall plant economics. Shanghai Zenith Machinery Co., Ltd., with its world-class MTW Trapezium Grinding Mill and LM Vertical Grinding Mill, provides reliable, high-performance solutions tailored to the unique challenges of petcoke processing. Whether you need a medium-capacity mill for a steel mini-mill or a large integrated system for a mega smelter, Zenith has the technology and expertise to deliver. Contact Zenith today for a detailed proposal and on-site visit to witness the power of advanced Chinese grinding technology in Indian metallurgy.
