Kaolin milling line for Saudi Arabia 10tph processing

Introduction to Kaolin Processing in Saudi Arabia

Kaolin, also known as china clay, is a versatile industrial mineral that plays an essential role in many manufacturing sectors. In Saudi Arabia, the growing ceramics, paper, paint, rubber, and plastic industries are driving an increasing demand for high-quality kaolin powder. To satisfy this demand, a reliable and efficient milling line is required. A 10 tons per hour (tph) capacity kaolin milling line is often the ideal choice for mid-sized producers who need consistent output, fine particle size, and low operating costs. Shanghai Zenith Machinery Co., Ltd. has engineered advanced grinding solutions that are perfectly suited for such applications, delivering high productivity under demanding conditions.

Understanding Kaolin and Its Industrial Applications

Kaolin is a hydrated aluminum silicate with the chemical composition Al2Si2O5(OH)4. It is naturally soft and exhibits excellent whiteness, chemical inertness, and good flow properties. In the ceramic industry, kaolin is used to produce whiteware, sanitaryware, and tiles. In paper production, it serves as a coating pigment to improve brightness and opacity. It is also widely used in paints, adhesives, rubber fillers, glass fibers, and pharmaceuticals. The versatility of kaolin means that the milling process must be carefully controlled to achieve the desired fineness, usually from 100 mesh to 800 mesh or finer. A 10 tph milling line must therefore offer flexible adjustment and stable performance.

Key Parameters for Designing a 10 TPH Kaolin Milling Line

Designing a kaolin milling line involves several critical parameters. First, the feed size must be compatible with the mill’s inlet; oversized particles require a primary crusher. Second, moisture content should be managed; kaolin often contains residual moisture, and some mills incorporate drying capabilities. Third, the required fineness determines the mill type and classification system. Fourth, capacity is the defining factor: 10 tph is a moderate throughput that can be achieved by a single high-efficiency mill or a compact grinding plant. Finally, local conditions in Saudi Arabia—such as high ambient temperature, desert dust, and energy costs—demand equipment that is robust, thermally stable, and energy-efficient. Zenith’s equipment is designed with these factors in mind.

Core Equipment Recommendation: MTW Trapezium Grinding Mill

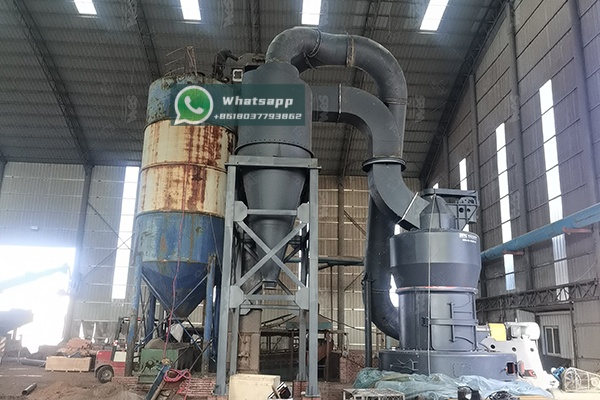

For a 10 tph kaolin milling line, Shanghai Zenith recommends the MTW Trapezium Grinding Mill, especially the MTW138Z model. This mill has multiple patented technologies and is known for its compact structure, long service life, and eco-friendly operation. It is ideal for processing kaolin with a maximum feed size of 35 mm and can produce powder down to 0.045 mm, which is approximately 325 mesh. The MTW138Z has an output capacity of 6 to 17 tph, comfortably covering the required 10 tph target while allowing a safety margin for varying raw material conditions.

The MTW series adopts an advanced internal lubrication system, a curved air duct, and a conical classifier to ensure high classification efficiency and low energy consumption. The grinding roller and ring are made of high-quality wear-resistant alloys, extending the service life and reducing maintenance downtime. In a hot and dusty region like Saudi Arabia, these features are particularly valuable.

Alternative and Complementary Solution: LM Vertical Grinding Mill

For projects that prefer vertical mill technology, the LM Vertical Grinding Mill is another excellent recommendation. The LM130K model integrates crushing, grinding, powder selection, drying, and material conveying in one unit. This reduces the footprint of the milling line and simplifies installation. It has a plate diameter of 1300 mm, a capacity of 10 to 28 tph, and an output fineness of 170 to 40 micrometers. With a maximum feed size of 38 mm and a main motor of 200 kW, the LM130K is a powerful alternative for kaolin processing. The vertical mill design also provides better drying efficiency when the feed material contains moisture, which can be advantageous in certain kaolin deposits.

Integrated Kaolin Milling Process Flow

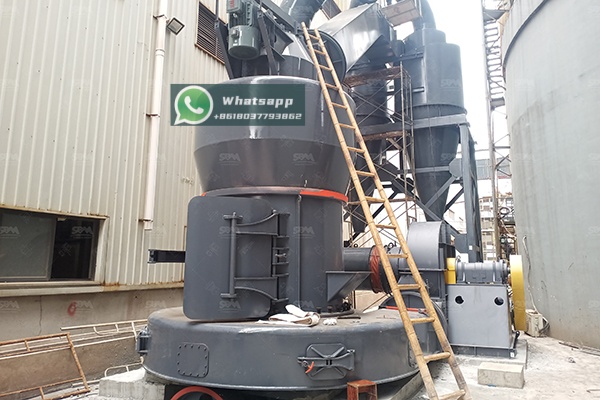

A typical 10 tph kaolin milling line with Zenith equipment consists of a hopper, an optional jaw crusher, a bucket elevator, a vibrating feeder, the main grinding mill, a classifier, a cyclone collector, a bag filter, and an induced draft fan. In the process, raw kaolin is first crushed below the mill feed size. Then it is conveyed to the grinding chamber, where the rotating grinding rollers crush and grind the material against the ring. The fine powder is carried by air to the classifier. Qualified powder passes through and is collected, while oversized particles return to the grinding zone for further processing. The whole system is centrally controlled, making operation simple and reliable.

Why Choose Zenith for Kaolin Milling Projects

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has achieved remarkable success in the field of ultra-fine powder grinding. We specialize in the research, development, and production of industrial powder grinding equipment and related devices. Our main products include MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. For the Saudi Arabian kaolin market, the MTW138Z and LM130K are two highly recommended products. Both are proven in similar projects around the world. We provide complete systems including design, installation, commissioning, and after-sales training. Our spare parts supply and technical support ensure that your kaolin milling line runs smoothly for many years.

Conclusion

A 10 tph kaolin milling line in Saudi Arabia requires a robust, efficient, and cost-effective solution. The MTW138Z Trapezium Grinding Mill and the LM130K Vertical Grinding Mill from Shanghai Zenith offer excellent performance, easy maintenance, and the flexibility to produce a wide range of powder fineness. With their advanced technology, low energy consumption, and strong after-sales support, Zenith’s grinding equipment is the best choice for your kaolin processing investment. Contact Zenith today to design a customized milling line that maximizes your profitability and meets your production targets.
