Feldspar milling line for Malaysia ceramics

Introduction

Malaysia has emerged as a significant hub for ceramic manufacturing in Southeast Asia, driven by abundant raw materials, skilled labor, and strategic地理位置. The country’s ceramic industry produces a wide range of products including tiles, sanitaryware, tableware, and industrial ceramics. A critical raw material in ceramic production is feldspar, which acts as a fluxing agent to lower the melting temperature and provide vitrification during firing. The quality of feldspar powder directly impacts the final product’s strength, whiteness, and uniformity. Therefore, an efficient and reliable feldspar milling line is essential for Malaysian ceramic manufacturers to maintain competitiveness and product excellence.

Feldspar Characteristics and Grinding Requirements

Feldspar is a group of rock-forming minerals, primarily composed of aluminosilicates of potassium, sodium, or calcium. In ceramics, the most commonly used types are potash feldspar (K-feldspar) and soda feldspar (Na-feldspar). Typical requirements for ceramic-grade feldspar powder include a fineness of 200-325 mesh (74-44 microns) with a controlled particle size distribution, low iron content (to avoid discoloration), and consistent chemistry. The grinding process must also handle moisture content (usually below 2%) and achieve high throughput with energy efficiency. Additionally, because feldspar has moderate hardness (Mohs 6-6.5), the milling equipment must be wear-resistant to maintain long service life. Malaysian ceramic producers often seek solutions that combine high capacity, low operating costs, and the ability to produce ultra-fine powders for specialized applications.

Zenith’s Complete Feldspar Milling Solution

Shanghai Zenith Machinery Co., Ltd., a leading Chinese manufacturer of ore grinding equipment, has developed a comprehensive range of milling machines ideally suited for feldspar processing. With decades of experience and numerous patents, Zenith offers tailored solutions that cover the entire grinding circuit from feeding to classification and dust collection. For the Malaysian ceramic industry, Zenith recommends two flagship products that excel in feldspar milling: the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill. These machines are designed to deliver high efficiency, fine powder quality, and robust performance under continuous operation. Below we discuss their key features and how they meet the specific needs of Malaysian ceramic manufacturers.

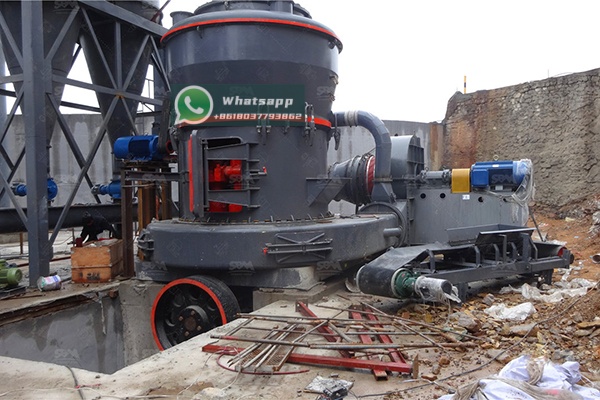

MTW Trapezium Grinding Mill – Proven Performance for Medium-to-Fine Grinding

The MTW series trapezium mill is a multi-patented grinding mill that has gained worldwide recognition for its compact structure, long service life, and eco-friendly design. It is an excellent choice for feldspar grinding, with a maximum feed size of up to 50mm and the ability to produce final powder as fine as 0.038mm (400 mesh). The mill uses a unique trapezium-shaped roller and ring, which increases grinding efficiency by 20-30% compared to traditional Raymond mills. Its internal classifier ensures precise particle size control, making it ideal for producing standard ceramic-grade feldspar powder (200-325 mesh). The MTW mill also features a grease-lubricated system to reduce maintenance and an integrated dust collector to meet environmental standards. For Malaysian plants with medium capacity requirements, models like MTW138Z (capacity 6-17 t/h) or MTW175G (9.5-25 t/h) offer an optimal balance of throughput and fineness.

LM Vertical Grinding Mill – High-Capacity Ultra-Fine Production

For large-scale ceramic manufacturers who need higher throughput and the ability to produce ultra-fine feldspar powder (down to 325-600 mesh or even finer), Zenith’s LM Vertical Grinding Mill is the ultimate solution. This mill integrates crushing, grinding, drying, classifying, and material conveying into a single unit, significantly reducing floor space and capital investment. The LM series adopts a conical grinding roller and a flat grinding table, ensuring uniform wear and stable operation. It also features a hydraulic pressure system that allows automatic roller lifting and lowering, simplifying maintenance. The classifier can be adjusted to achieve a wide range of fineness, from 170 microns to 40 microns or finer. For Malaysian feldspar processing, the LM130K (capacity 10-28 t/h) or LM190K (23-68 t/h) models are highly recommended. Moreover, the LM series can be paired with a secondary classifying system (e.g., an ultrafine classifier) to produce even finer powders for high-end ceramic bodies and glazes.

Both the MTW and LM mills are backed by Zenith’s comprehensive after-sales support, including spare parts supply, installation supervision, and training. They are built with wear-resistant materials such as high-chrome alloy and ceramic lining options, extending the service life even when grinding abrasive feldspar. Additionally, Zenith offers the LUM Ultrafine Vertical Mill for applications requiring D97 5-30 micron powders, which is ideal for specialty ceramic coatings or advanced ceramics.

Optimizing the Milling Line – Key Considerations

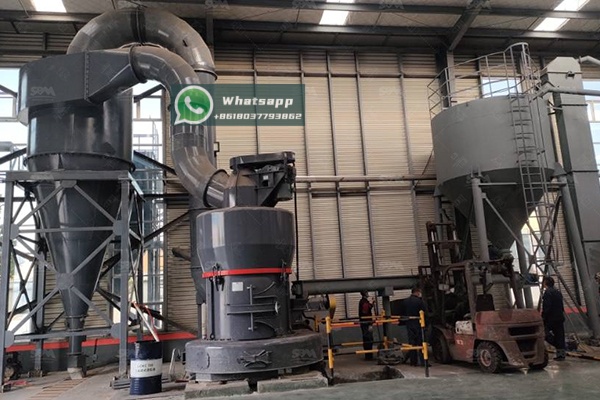

Beyond the main grinding equipment, a successful feldspar milling line in Malaysia must also consider the upstream and downstream processes. Zenith provides complete system designs, including: 1) Primary crushing using a jaw crusher or hammer crusher to reduce run-of-mine feldspar to <50mm; 2) Hopper and feeder with variable frequency drive for consistent material flow; 3) Magnetic separator (optional) to remove iron impurities before grinding; 4) Dust collection system (bag filter or cyclone) to meet local environmental regulations; 5) Product storage and packing. Zenith also offers the XZM Ultrafine Grinding Mill and Hammer Mill for special applications. By customizing the entire line, Zenith ensures seamless integration and maximum uptime.

Case Study: Successful Feldspar Milling in Malaysia

A prominent Malaysian ceramic tile manufacturer recently upgraded its feldspar processing plant with a Zenith MTW138Z trapezium mill. Previously, they relied on multiple Raymond mills with inconsistent output quality and high energy consumption. After installing the MTW mill, they achieved a 25% increase in production capacity (from 10 t/h to 12.5 t/h) while reducing specific power consumption by 15%. The final powder fineness was consistently maintained at 200 mesh with a D90 below 75 microns. The client also reported lower maintenance costs due to the mill’s robust design and improved dust control. This success story highlights how Zenith’s technology can directly enhance the profitability and product quality of Malaysian ceramic manufacturers.

Conclusion

The Malaysian ceramic industry continues to grow, driven by domestic demand and exports. To stay competitive, manufacturers must invest in efficient and reliable feldspar milling lines. Shanghai Zenith Machinery offers world-class grinding solutions tailored to the specific needs of feldspar processing. Whether it is the versatile MTW Trapezium Grinding Mill for medium-scale production or the high-capacity LM Vertical Grinding Mill for large-scale ultrafine grinding, Zenith provides the equipment, expertise, and support to ensure success. By partnering with Zenith, Malaysian ceramic companies can achieve superior product quality, lower operating costs, and a sustainable production environment. For more information on equipment specifications and customized solutions, contact Zenith’s local representatives or visit their official website.
