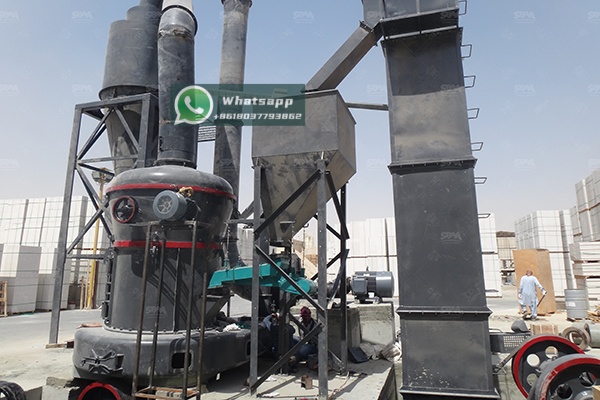

Basalt grinding mill for Egypt road foundation materials

Introduction

Basalt is one of the most widely distributed volcanic rocks in Egypt, with large deposits in the Eastern Desert, around Cairo, and near the Red Sea. The Egyptian government has made highway construction a national priority, which increases the demand for reliable road foundation materials. In road foundation construction, basalt is not only used as coarse aggregate, but also as fine powder for asphalt filler, cement-treated base, and soil stabilization. To make basalt usable in these applications, a professional basalt grinding mill is needed to reduce the rock to controlled particle sizes. Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has developed a full range of mills for basalt processing.

Role of Basalt in Egypt Road Foundation

The road foundation is the hidden yet most important part of any highway. It consists of several layers: the subgrade, subbase and base course. Each layer must have enough strength, stiffness and durability to support traffic loads. Basalt is ideal because of its high compressive strength, good polish resistance and excellent thermal stability. When basalt is ground into fine powder with a size below 75 microns, it acts as a filler in asphalt concrete. The filler fills the voids between aggregates, improves the cohesion of asphalt mastic and reduces the risk of moisture damage. In Egypt, where summers are extremely hot, a stable mineral filler is essential to prevent rutting and cracking. A modern basalt grinding mill can produce the exact filler grade with high consistency.

Key Challenges in Basalt Grinding

Despite its benefits, basalt is difficult to grind. The rock has a Mohs hardness of 6 to 9 and contains a high content of silica and ferromagnesian minerals. This causes severe wear on grinding rollers, grinding rings and classifiers. Ordinary mills may suffer from short maintenance cycles and high operating costs. Additionally, basalt from quarries can contain small amounts of moisture. In vertical mills, hot air can be used for drying, but the grinding system must be designed to handle damp feed materials without clogging. Another challenge is capacity. Large road foundation projects in Egypt require a continuous supply of powder, sometimes as much as 20 to 50 tons per hour. Therefore, the grinding equipment must combine high capacity with stable performance and energy efficiency.

Shanghai Zenith Machinery Basalt Grinding Mills

Shanghai Zenith Machinery Co., Ltd. has more than 30 years of experience in the manufacture of industrial powder grinding equipment. The company has achieved great progress in the field of ultra-fine powder grinding and offers equipment that is durable, energy-saving and easy to operate. Among the wide product range, two mills are especially suitable for basalt grinding in road foundation projects: the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill. Both machines are designed to handle hard materials, deliver adjustable fineness and operate continuously under demanding conditions.

MTW Trapezium Grinding Mill

The MTW Trapezium Grinding Mill is one of Zenith’s best-selling mills for minerals. It uses multiple patented technologies, such as an integrally driven bevel gear system and an internal circulating thin-oil lubrication system. The trapezium-shaped grinding roller and ring reduce the speed of material flow between grinding surfaces, increasing grinding efficiency. The mill can accept basalt with a maximum feed size of up to 50 mm, and the fineness of the finished powder can be adjusted between 1.6 mm and 0.045 mm. This makes it suitable for both the production of coarse basalt sand and fine basalt filler. For Egypt road foundation materials, the MTW175G and MTW215G models are recommended because of their high capacity and low energy consumption. The MTW175G can produce 9.5 to 25 tons per hour, while the MTW215G can reach a capacity of 15 to 45 tons per hour.

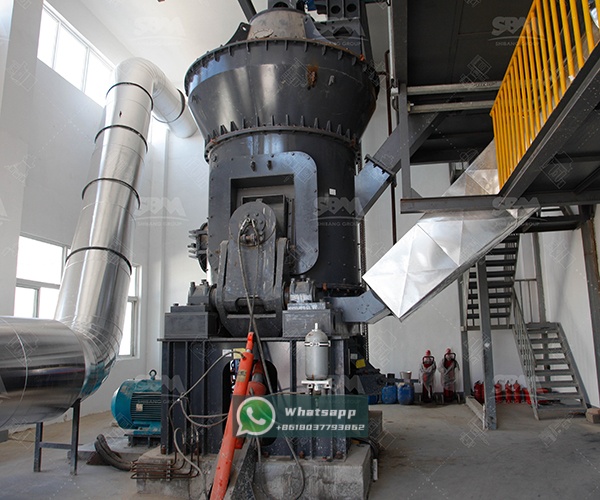

LM Vertical Grinding Mill

For projects that require very high output, the LM Vertical Grinding Mill is a better choice. The LM series integrates crushing, grinding, drying, powder selecting and material conveying in one unit, which simplifies the process flow and saves factory space. The vertical roller mill is known for its high drying capacity because hot gas is introduced directly into the mill. This is very useful in Egypt, where at certain times of the year the moisture content of quarry stockpiles can vary. The LM mineral mill series can produce powder with a fineness from 170 to 40 microns, which is ideal for road base and asphalt filler. The LM190K model, with a plate diameter of 1900 mm, has a capacity of 23 to 68 tons per hour and a main motor of 500 kW. For larger operations, the LM280K can produce 50 to 170 tons per hour, making it one of the most productive basalt grinding mills available.

How to Choose the Right Basalt Grinding Mill for Egypt

When selecting a basalt grinding mill for Egypt road foundation materials, the decision should be based on the required capacity, available space and moisture level of the feed. For a stationary plant with a capacity below 45 tons per hour, the MTW Trapezium Grinding Mill is an ideal choice. It is robust, easy to maintain and can be installed in a compact layout. For regional road construction centres or large infrastructure projects that need more than 50 tons of basalt powder per hour, the LM Vertical Grinding Mill offers a smaller footprint and higher energy efficiency. The LM series is also more suitable for simultaneous drying and grinding of slightly damp basalt fines. In both cases, Zenith can provide a complete grinding line, including crusher, bucket elevator, silo, feeder, main mill, classifier, bag filter, blower and control cabinet. Basalt powder produced by these mills is used in various road foundation materials: mineral filler in asphalt mixtures, pozzolanic additive in cement-treated base, and fine fraction in drainage-optimized subbase layers.

Conclusion

Egypt’s road infrastructure is developing at a fast pace, and the demand for high-quality road foundation materials will continue to grow. Basalt is one of the strongest and most suitable stone materials for road construction. With the right basalt grinding mill, contractors can convert local basalt into valuable products that improve the performance and service life of roads. Shanghai Zenith Machinery Co., Ltd. has rich experience and a proven product portfolio in ore grinding equipment. The MTW Trapezium Grinding Mill and LM Vertical Grinding Mill are excellent choices for producing basalt powder and road foundation materials in Egypt. Their high efficiency, wear-resistant design and integrated drying capabilities make them the ideal equipment for Egyptian road builders.
