Bentonite Grinding Mill for Drilling Mud in Nigeria

Nigeria is one of Africa’s most dynamic oil and gas markets, with drilling activities in the Niger Delta, offshore fields, and emerging onshore basins. Every drilling operation depends on reliable drilling fluids, and bentonite is one of the most important components of water-based drilling mud. As a swelling clay with high cation exchange capacity, bentonite improves viscosity, suspends cuttings, controls fluid loss, and stabilizes wellbore walls. However, the performance of bentonite in drilling mud depends heavily on its particle size distribution. That is why choosing the right bentonite grinding mill is a strategic decision for mud plants, oilfield service companies, and mineral processors in Nigeria.

Why Particle Size Matters in Drilling Mud Bentonite

Bentonite used in drilling mud is normally ground to a fine powder, typically passing 200 mesh (75 microns) or finer. API Specification 13A and related industry standards define key performance properties such as viscosity, filtrate loss, residue, and swelling index. Coarse bentonite particles hydrate slowly, settle in the mud tank, and can create an unstable filter cake. Fine grinding increases the specific surface area, allowing sodium bentonite to absorb water rapidly and develop the desired rheology. In premium drilling mud grades, a large proportion of material may be required to pass 325 mesh (45 microns) to achieve fast mixing and superior fluid-loss control. Therefore, the grinding circuit must deliver consistent fineness, high throughput, and low contamination.

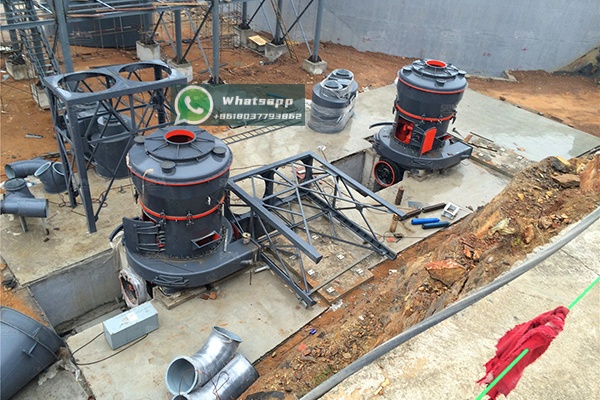

Bentonite Grinding Process for Nigerian Drilling Mud

Bentonite processing typically begins with crushing, drying, grinding, classification, dust collection, and storage. Raw bentonite may contain moisture that ranges from 10% to 30% depending on mining, weather, and storage conditions. In Nigeria’s humid climate, drying is often essential before fine grinding. The material is first crushed to a manageable feed size, then dried to reduce moisture to around 6% to 10%, and finally ground in a mill. Air classifiers or integrated separators ensure that the finished powder meets the target mesh size. A complete system may also include feeders, bucket elevators, screw conveyors, pulse-jet dust collectors, and finished product silos. Because bentonite is abrasive and can be dusty, the selected mill should be robust, energy-efficient, and equipped with reliable dust control.

Key Selection Criteria for Bentonite Grinding Mills in Nigeria

When selecting a bentonite grinding mill for drilling mud production in Nigeria, several factors should be evaluated:

• Capacity: Small mud plants may need 3 to 10 t/h, while large oilfield suppliers may require 20 to 50 t/h or more.
• Fineness: 200 mesh is common, but 325 mesh or finer may be required for premium grades.
• Moisture handling: Integrated drying and grinding can reduce capital cost and simplify the flowsheet.
• Energy efficiency: Electricity supply and fuel costs in Nigeria make power consumption a major operating expense.
• Wear parts: Abrasive clay requires durable rollers, rings, and liners with easy replacement.
• Dust control: Environmental compliance and worker safety require efficient filtration.
• After-sales support: Local service, spare parts, and technical guidance reduce downtime.

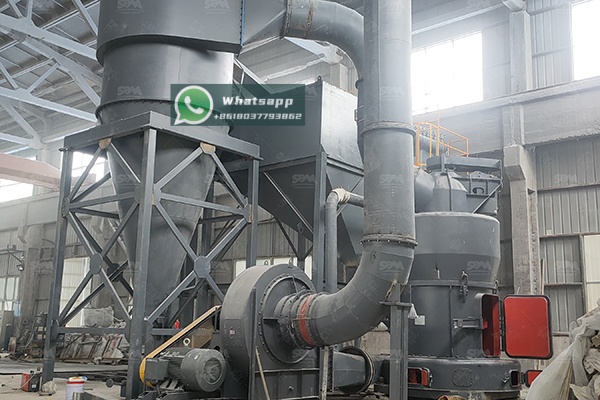

Recommended Product 1: MTW Trapezium Grinding Mill

Shanghai Zenith Machinery Co., Ltd. recommends the MTW Trapezium Grinding Mill for medium-scale and flexible bentonite grinding in Nigeria. This mill is a grinding equipment with multiple patents, known for its compact structure, long service life, and eco-friendly design. It is suitable for processing materials with a maximum input size of 50 mm and can produce a final product as fine as 0.038 mm. For drilling mud bentonite, the MTW mill can be adjusted to deliver 200 mesh or 325 mesh powder with stable output and low noise.

The MTW series offers models from MTW110 to MTW215G, covering capacities from 3 t/h to 45 t/h. Its bevel gear transmission, internal lubrication system, and curved blade design improve grinding efficiency and reduce maintenance. The mill also features an advanced dust collection system, which is important for bentonite processing in urban or environmentally sensitive areas of Nigeria.

For a Nigerian drilling mud producer with a target of 10 t/h at 200 mesh, the MTW138Z or MTW175G can be an excellent choice. For larger projects, the MTW215G provides high capacity while maintaining fine product quality.

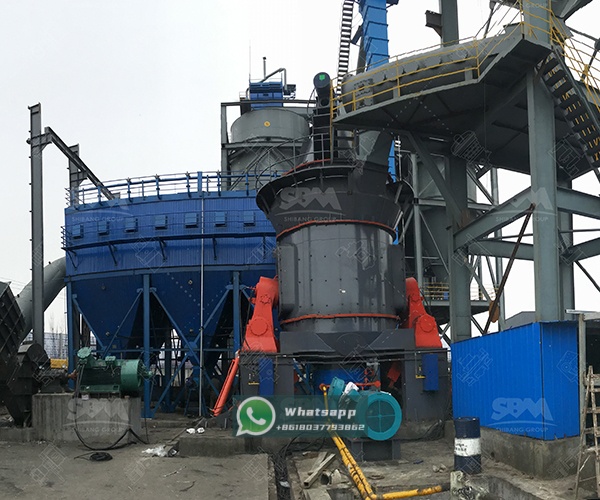

Recommended Product 2: LM Vertical Grinding Mill

For high-capacity bentonite grinding and combined drying, Shanghai Zenith offers the LM Vertical Grinding Mill. This mill integrates five functions—crushing, grinding, powder selection, drying, and material conveying—into a single machine. It occupies a small area, produces a fine final powder, and is an eco-friendly production solution. The LM series is especially suitable for Nigerian processors who receive bentonite with variable moisture content and need a compact, high-throughput plant.

The Vertical Mineral Mill Series includes LM130K, LM190K, and LM280K. Capacities range from 10 t/h to 170 t/h, with output fineness from 170 to 40 μm. The LM mill uses a grinding plate and rollers, and hot air can be introduced to dry the material while grinding. This makes it possible to process bentonite with moderate moisture directly, reducing the need for a separate dryer in some flowsheets.

For a large drilling mud plant in Port Harcourt, Warri, or Lagos, the LM190K or LM280K can deliver consistent 200 mesh bentonite at industrial scale. If the feed moisture is high, the LM vertical mill can be configured with a hot-air furnace and dust collector to produce dry, flowable powder ready for bagging or bulk delivery.

Comparison and Application Advice

Both the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill are strong choices for bentonite drilling mud production in Nigeria, but they suit different project profiles. The MTW mill is ideal for medium capacity, multiple product grades, and investors who want a proven, flexible grinding system. The LM vertical mill is better for large capacity, integrated drying, and a compact footprint. For special ultra-fine bentonite products, Shanghai Zenith also offers the XZM Ultrafine Grinding Mill, which can achieve 325-2500 mesh. For coarse crushing or sand production, the Hammer Mill is available. For wet processing or special mineral preparation, Ball Mills can be supplied.

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China, and has made great achievements in the field of ultra-fine powder grinding. We are specialized in the research, development, and production of industrial powder grinding equipment and other related devices. Our main products include MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill.

Supporting Nigeria’s Drilling Industry with Shanghai Zenith

Nigeria’s oil and gas sector requires dependable supply chains for drilling mud materials. By investing in the right bentonite grinding mill, local producers can reduce import dependence, control quality, and respond quickly to drilling campaigns. Shanghai Zenith provides customized process design, equipment selection, installation guidance, commissioning support, and spare parts for bentonite grinding projects. We can help Nigerian customers evaluate feed characteristics, target fineness, capacity, moisture, and site conditions, then recommend the most suitable mill and auxiliary equipment.

Whether you are setting up a new bentonite powder plant or upgrading an existing line, the MTW Trapezium Grinding Mill and LM Vertical Grinding Mill are ready to deliver reliable performance. Contact Shanghai Zenith Machinery Co., Ltd. today to discuss your bentonite grinding mill for drilling mud in Nigeria.

Conclusion

Bentonite is indispensable for drilling mud, and particle size is critical to its performance. In Nigeria, where drilling activity continues to grow, efficient grinding technology can create significant value. The MTW Trapezium Grinding Mill offers flexible medium-scale production, while the LM Vertical Grinding Mill provides high-capacity, integrated drying and grinding. With Shanghai Zenith’s experience in industrial powder grinding equipment, Nigerian investors can build a competitive bentonite processing business and supply high-quality drilling mud additives to the oilfield market.
