Calcite milling line for Bangladesh rubber compounds

Introduction: The Role of Calcite in Rubber Compounds

In the rubber industry, fillers play a critical role in enhancing mechanical properties, reducing production costs, and improving processing behavior. Among various mineral fillers, calcite (calcium carbonate, CaCO₃) is one of the most widely used due to its abundance, low price, and excellent compatibility with rubber polymers. Bangladesh, as a growing hub for rubber product manufacturing—including tires, conveyor belts, hoses, and footwear—has seen an increasing demand for high-quality calcite powder. The production of fine and ultra-fine calcite powder requires a well-designed milling line that ensures consistent particle size distribution, high purity, and energy efficiency. This article presents a comprehensive overview of a calcite milling line tailored for Bangladesh rubber compounds, highlighting key equipment, process parameters, and the advanced grinding solutions offered by Shanghai Zenith Machinery Co., Ltd.

Calcite in Rubber: Why Particle Size Matters

Calcite powder is added to rubber compounds as a reinforcing filler, a processing aid, or an extender. In natural and synthetic rubber, fine calcite particles can improve tensile strength, tear resistance, and abrasion resistance while maintaining flexibility. The typical fineness required for rubber applications ranges from 325 mesh (44 µm) to 600 mesh (23 µm), with some specialty compounds requiring D97 values below 10 µm. For Bangladesh manufacturers, achieving consistent fineness and low moisture content is essential to meet international quality standards. A milling line must therefore integrate efficient grinding, precise classification, and effective drying if needed.

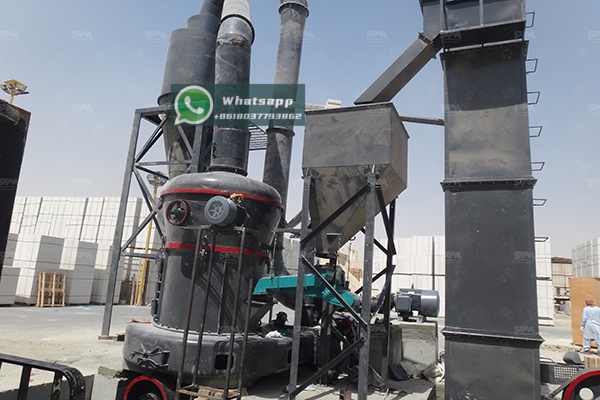

Overview of a Complete Calcite Milling Line

A typical calcite milling line consists of several stages: crushing, feeding, grinding, classifying, and product collection. Raw calcite rocks (typically 200-300 mm in size) are first reduced by a jaw crusher or hammer crusher to a feed size suitable for the mill (usually below 30-50 mm). The crushed material is then conveyed to a hopper and fed into the grinding mill via a vibrating feeder or belt conveyor. Inside the mill, the calcite is ground by rollers, rings, or balls, depending on the mill type. The ground powder is carried upward by air flow to a classifier, where oversized particles are returned for further grinding, while fine particles pass through and are collected in a cyclone or bag filter. This closed-circuit system ensures high efficiency and product uniformity.

Key Considerations for Bangladesh’s Rubber Industry

Bangladesh faces specific challenges in mineral processing: high ambient humidity, limited availability of skilled operators, and frequent power fluctuations. Therefore, the selected grinding equipment must be robust, easy to maintain, and energy-efficient. Additionally, the milling line should be capable of processing calcite with a Mohs hardness of 3 and produce a final product with minimal iron contamination. Shanghai Zenith Machinery Co., Ltd. understands these requirements and offers a range of mills that are particularly suitable for calcite grinding in rubber compounds.

Recommended Grinding Mills for Calcite Powder (325-600 mesh)

Among Zenith’s product portfolio, two models stand out for calcite milling in rubber applications: the MTW Trapezium Grinding Mill and the LUM Ultrafine Vertical Mill.

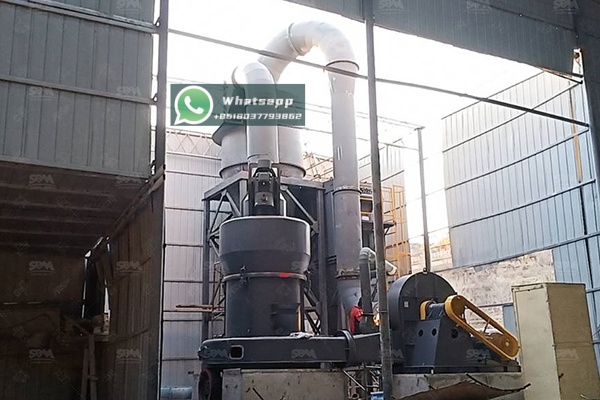

MTW Trapezium Grinding Mill

The MTW series is a multi-patented mill known for its compact structure, long service life, and eco-friendly operation. It is ideally suited for processing calcite with a maximum feed size of 50 mm and can produce a final product as fine as 0.038 mm (400 mesh). The trapezoidal-shaped grinding ring and roller increase grinding efficiency and reduce energy consumption. For a medium-scale calcite milling line serving the Bangladesh rubber sector, the MTW138Z model is an excellent choice. It offers a capacity of 6-17 t/h at a final fineness of 1.6-0.045 mm, with a main motor power of 90 kW. Its compact footprint and ease of maintenance make it ideal for factories with limited space.

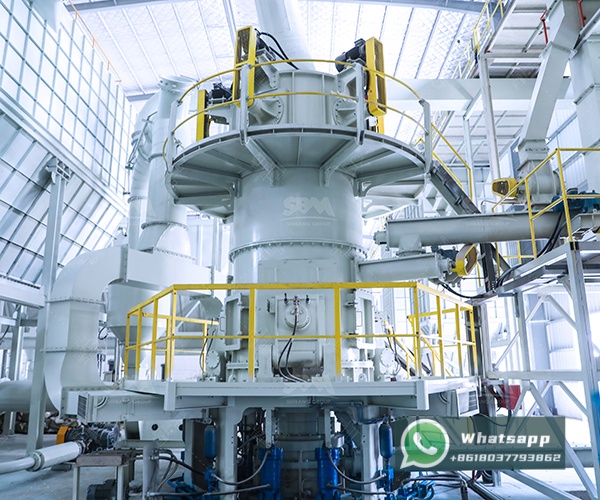

LUM Ultrafine Vertical Mill

For manufacturers requiring finer powders (D97 = 5-30 µm) for high-performance rubber compounds, the LUM Ultrafine Vertical Mill is the premier solution. This mill integrates grinding, drying, classifying, and conveying in one unit, significantly reducing the plant footprint. The LUM series uses a hydro-pneumatic system for roller pressure, ensuring stable operation even under variable feed conditions. The LUM1525 model can produce 1.6-11.5 t/h of calcite powder with a fineness of 5-30 µm (D97), powered by a 220-250 kW main motor. Its intelligent control system allows for easy adjustment of product fineness, which is crucial when switching between different rubber compound formulations.

Both mills are manufactured with wear-resistant materials, ensuring long operational life and low contamination levels—critical for rubber applications where metal impurities can cause defects.

Process Flow and Ancillary Equipment

A complete calcite milling line for Bangladesh rubber compounds typically includes the following equipment:

• Primary Crusher: Hammer mill or jaw crusher to reduce raw calcite to <30 mm.
• Bucket Elevator & Vibrating Feeder: For smooth and controlled feeding into the mill.
• Grinding Mill: MTW or LUM series as per capacity and fineness requirement.
• Air Classifier: Integrated or separate classifier to control particle size distribution.
• Bag Filter / Cyclone: For efficient product collection and dust control.
• Control System: PLC-based for automated operation and monitoring.

Zenith also provides a full range of spare parts and after-sales service, including installation supervision and operator training, which is particularly valuable for Bangladeshi clients who may be new to advanced milling technology.

Technical Parameters for Reference

Based on typical requirements from Bangladesh rubber factories, the following table summarizes suitable mill configurations:

These parameters are based on calcite with a specific gravity of 2.7 and a hardness of 3. Actual capacity may vary depending on material moisture and grindability.

Why Choose Shanghai Zenith Machinery for Your Calcite Milling Line?

Shanghai Zenith Machinery Co., Ltd. has accumulated decades of experience in the design and manufacture of ore grinding equipment. The company is recognized as an excellent manufacturer in China, with significant achievements in ultra-fine powder grinding. Their mills are exported to over 120 countries, including Bangladesh, where several rubber factories have successfully deployed Zenith equipment. Key advantages include:

• Proven Reliability: Robust construction and high-quality components minimize downtime.
• Energy Efficiency: Advanced design reduces power consumption by 20-30% compared to traditional mills.
• Versatility: The same mill can be adjusted to produce different fineness grades, offering flexibility for various rubber formulations.
• Local Support: Zenith has regional agents in South Asia providing prompt technical support and spare parts.

Conclusion

The growing rubber industry in Bangladesh demands consistent, high-quality calcite powder as a filler. An optimized milling line, equipped with modern grinding mills like the MTW Trapezium Grinding Mill or the LUM Ultrafine Vertical Mill, can deliver the required fineness, purity, and production capacity. Shanghai Zenith Machinery offers turnkey solutions from equipment selection to installation and commissioning. By investing in a reliable calcite milling line, Bangladeshi rubber manufacturers can enhance their product quality, reduce production costs, and stay competitive in the global market.

For more detailed technical consultation and a tailored quotation, contact Shanghai Zenith Machinery Co., Ltd. today.
