Gypsum powder mill for Kenya building materials

Introduction

Kenya’s building materials industry is expanding at an impressive pace. Rapid urbanization, affordable housing programs, and major infrastructure projects are pushing demand for cement, gypsum board, plaster, and other dry building materials. Among these, gypsum powder plays an essential role: it regulates cement setting, creates smooth plaster surfaces, and forms the core of gypsum panels. To capture this opportunity, Kenyan investors and manufacturers need a reliable and efficient gypsum powder mill. Shanghai Zenith Machinery Co., Ltd. has extensive experience in ore grinding equipment and provides the ideal machinery for processing gypsum into high-quality building materials.

Kenya’s Gypsum Market and Building Material Needs

Kenya has considerable natural gypsum reserves in arid areas such as Kajiado, Garissa, and the coastal hinterland near Kilifi. Many local enterprises mine gypsum but face difficulties in grinding it into a consistent powder. Imported gypsum powder from Uganda, Egypt, or Thailand is expensive and subject to transport delays. At the same time, cement companies and gypsum board manufacturers require strict particle-size distribution and stable production. A modern local gypsum powder mill can turn raw rock into a competitive product, reduce logistics costs, and support the nationwide push for locally sourced construction materials.

Gypsum Powder Applications in Building Materials

Gypsum powder is used in several sectors. In the cement industry, natural gypsum is added to clinker during final grinding to prevent flash setting and improve long-term strength. Typical addition rates are between 3 and 5 percent by weight of cement. In plasterboard manufacturing, gypsum must be calcined to produce stucco or plaster of Paris, and the fineness and purity of the raw powder directly affect board strength. Gypsum powder is also mixed with water, sand, and fillers to produce interior plaster, ceiling tiles, and decorative moldings. For each application, a grinding mill must deliver uniform fineness and stable capacity. Zenith’s grinding mills are designed to meet these strict requirements with low energy consumption.

Gypsum Powder Production Process

A successful gypsum powder plant normally includes primary crushing, vertical grinding or roller grinding, sieving, calcination, and packaging. Raw gypsum rocks are first reduced in a jaw crusher to particles below 30 to 50 mm. Then a bucket elevator feeds the mill. Inside the mill, the material is ground, dried, and classified. Natural gypsum may contain 5 to 8 percent free moisture; therefore a mill with hot air supply is advantageous. The LM Vertical Grinding Mill can integrate the drying fan, heat source, and grinding system. The resulting powder is collected by a bag filter and conveyed to storage or a calciner. The entire process can be automated and monitored from a central control panel.

Recommended Grinding Equipment from Zenith

For Kenyan gypsum producers, two Zenith mills stand out: the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill. Both are proven in gypsum and industrial mineral processing. The choice depends on capacity, site space, and whether drying is required. For small and medium plants, the MTW series is a flexible and reliable workhorse. For large-scale projects, or when moisture must be reduced with hot air, the LM series offers the highest integration.

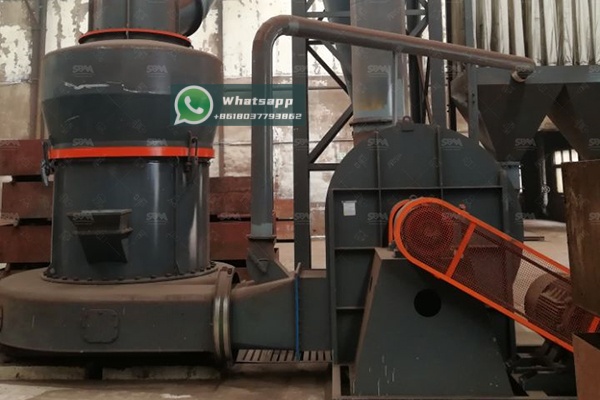

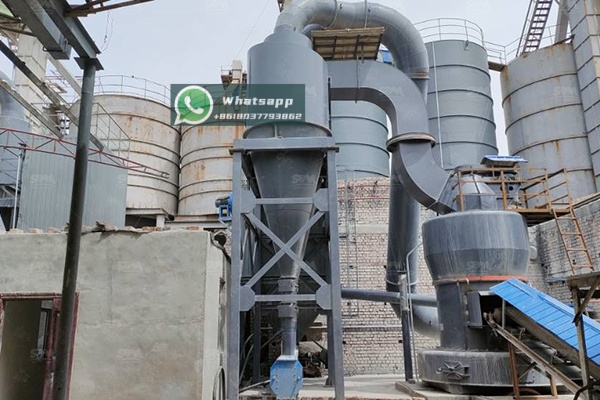

MTW Trapezium Grinding Mill: Compact Efficiency and Long Service Life

The MTW Trapezium Grinding Mill is one of Zenith’s flagship products. It has multiple patents and a trapezium-shaped grinding roller, which improves crushing efficiency and reduces material bypass. The mill is compact, environmentally friendly, and easy to maintain. For gypsum, the mill accepts a maximum feed size of 30 to 50 mm depending on model and produces a final powder between 0.045 mm and 1.6 mm, corresponding to 10 to 325 mesh. The capacity ranges from 3 to 45 t/h. The main motor power ranges from 55 kW to 280 kW, while the fan motor ranges from 55 kW to 315 kW. This low energy consumption is a major advantage in Kenya, where electrical costs can strongly affect operating margins.

For a medium-size Kenyan plant, the MTW175G can grind 9.5 to 25 t/h, enough to produce roughly 5,000 to 13,000 tons per month based on continuous operation. This makes it an excellent choice for a company supplying multiple cement plants or gypsum board lines.

LM Vertical Grinding Mill: High Capacity and Integrated Drying

When gypsum must be processed in very large quantities, the LM Vertical Grinding Mill is the ideal solution. It integrates five separate functions into one machine: crushing, grinding, powder selection, drying, and material conveying. This eliminates the need for multiple independent machines, saves floor space, simplifies installation, and lowers civil engineering costs. The LM series is available in several configurations. The LM130K has a grinding plate diameter of 1300 mm and produces 10–28 t/h. The LM190K with a 1900 mm plate can produce 23–68 t/h using a 500 kW main motor. For very large drymix mortar plants or cement grinding stations, the LM280K offers 50–170 t/h, making it one of the most powerful gypsum mills in its class. Output fineness can be adjusted between 170 and 40 μm.

Additional Zenith Grinding Solutions

Shanghai Zenith Machinery also supplies the MTM Medium-Speed Grinding Mill, Raymond Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, Ball Mill, and Hammer Mill. For a gypsum powder production line, the MTM mill is a cost-effective upgrade from traditional Raymond mills. The LUM Ultrafine Vertical Mill can produce D97 5–30 μm powder for high-end calcined gypsum or waterproof plaster products. This wide product range ensures that Zenith can design a complete solution for any gypsum processing project in Kenya.

Why Choose Shanghai Zenith Machinery Co., Ltd.?

Shanghai Zenith Machinery is an excellent manufacturer of ore grinding equipment in China and has achieved remarkable results in ultra-fine powder grinding. We are specialized in the research, development, and production of industrial powder grinding equipment and related devices. Our main products include the MTW, MTM, LM vertical mill, LUM, XZM, Raymond mill, hammer mill, and ball mill. Zenith combines advanced German and Japanese technology with local engineering expertise. Our machines are built with heavy-duty casted materials and precisely machined parts to withstand intense operating conditions. We also provide project planning, site layout, equipment installation, commissioning, and operator training. For Kenyan clients, Zenith offers competitive pricing, genuine spare parts, and responsive technical support.

Conclusion

Kenya’s building materials boom creates a strong case for investment in local gypsum powder milling. Whether your goal is to produce cement-grade gypsum powder, plaster of Paris, or ultra-fine additive for gypsum boards, Shanghai Zenith Machinery has a mill to match your requirements. The MTW Trapezium Grinding Mill offers compact, energy-saving grinding for medium capacities. The LM Vertical Grinding Mill provides high-capacity integrated grinding and drying for large-scale operations. By choosing Zenith, Kenyan producers can enjoy high availability, low operating costs, and a product that meets the highest quality standards. Contact Zenith today to set up a gypsum powder mill for Kenya and build a more self-sufficient construction industry.
