Diatomite milling line for Libya water purification

Introduction: The Critical Role of Diatomite in Libya’s Water Purification

Libya, a country with arid climate and limited freshwater resources, faces significant challenges in providing clean drinking water to its population. The nation relies heavily on groundwater and desalination, but both sources often require advanced filtration to meet health standards. Diatomite, a naturally occurring siliceous sedimentary rock composed of fossilized diatom frustules, has emerged as a highly effective filtration medium. Its unique porous structure, high permeability, and chemical inertness make it ideal for removing suspended solids, bacteria, and even some heavy metals from water. However, raw diatomite must be processed—specifically milled to precise particle sizes—to unlock its full filtration potential. This article explores the design of a diatomite milling line tailored for Libya’s water purification needs, highlighting the indispensable role of advanced grinding equipment from Shanghai Zenith Machinery Co., Ltd.

Why Diatomite Milling Matters for Water Filtration

The performance of diatomite in water filtration is directly linked to its particle size distribution and uniformity. For use as filter aids (e.g., in diatomaceous earth filters), the material is typically ground to a fineness between 10 and 40 microns (μm). Coarser particles provide high flow rates but lower retention, while finer particles enhance clarification but reduce throughput. Achieving the optimal balance requires precise milling control. Additionally, the milling process must preserve the porous diatom structure, avoid over-grinding, and minimize contamination. This is where professional grinding mills from Shanghai Zenith Machinery come into play, offering robust solutions for diatomite processing.

Components of a Complete Diatomite Milling Line

A typical diatomite milling line for water purification includes the following stages:

• Crushing: Raw diatomite blocks (up to 300 mm) are first reduced to below 30-50 mm using jaw crushers or hammer crushers.
• Drying: Because diatomite often contains >10% moisture, a drying system (e.g., rotary dryer) is needed to lower moisture to <5% for efficient milling.
• Grinding: The core step where dried diatomite is pulverized to target fineness. Depending on required product specifications, different mills are selected.
• Classification: Air classifiers separate oversized particles for regrinding, ensuring a uniform final product (e.g., D97 = 10-40 μm).
• Collection & Packaging: Cyclones and bag filters collect the fine powder, which is then packed into bags for transport to water treatment plants.

Recommended Grinding Solutions from Shanghai Zenith Machinery

For Libya’s diatomite processing, we recommend two highly efficient mills based on capacity and fineness requirements:

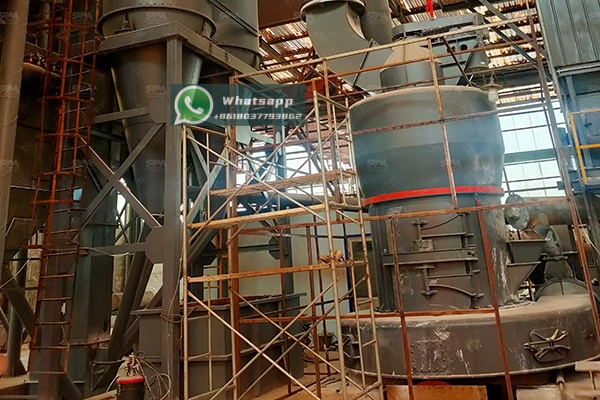

1. MTW Trapezium Grinding Mill – Ideal for Medium-Scale Production

The MTW series is a patented grinding mill with compact structure and long service life. It is particularly suitable for diatomite with a maximum feed size of 30-50 mm, producing a final product down to 0.038 mm (380 mesh) with high throughput. For a typical water filtration grade (e.g., 20-40 μm), the MTW138Z model can achieve 6-17 t/h, making it a cost-effective choice for medium-scale plants in Libya. Its eco-friendly design reduces dust emissions, which is crucial for arid environments.

• Model: MTW138Z
• Max Feed Size: <35 mm
• Final Size: 1.6-0.045 mm (adjustable)
• Capacity: 6-17 t/h
• Main Motor: 90 kW

2. LUM Ultrafine Vertical Mill – For Premium Filter Aids

When high-value, ultra-fine diatomite powder (5-20 μm) is required for specialized water purification (e.g., pharmaceutical-grade filtration), the LUM Ultrafine Vertical Mill is the top choice. It integrates grinding, classifying, and drying in one unit, minimizing footprint—a key advantage in Libya’s remote sites. The LUM1632 model produces powders with D97 = 5-30 μm at 2.0-13.5 t/h, ensuring excellent clarity and flow rate balance. Its intelligent control system allows easy adjustment of fineness, adapting to varying water quality needs.

• Model: LUM1632
• Main Motor: 280-315 kW
• Capacity: 2.0-13.5 t/h
• Fineness (D97): 5-30 μm

Benefits of Using Zenith Equipment in Libya

Libya’s challenging operational environment demands robust and reliable machinery. Shanghai Zenith’s grinding mills offer several advantages:

• Durability: Wear-resistant components extend service life even when processing abrasive diatomite.
• Energy Efficiency: The MTW and LUM mills consume less power per ton compared to traditional ball mills, reducing operational costs in regions with high fuel prices.
• Low Maintenance: Intelligent lubrication systems and easy-access design minimize downtime—critical for ensuring uninterrupted water supply.
• After-Sales Support: Zenith provides installation guidance and spare parts globally, including remote technical assistance for Libyan customers.

Case Study: Milling Line Configuration for a Libyan Water Treatment Plant

Imagine a new water treatment facility in Tripoli requiring 10 tons per hour of diatomite filter aid with a fineness of 25 μm (passing 500 mesh). A typical line could include:

1. A jaw crusher (PE-400×600) reducing raw rock to <40 mm.
2. A rotary dryer lowering moisture from 15% to 3%.
3. An MTW175G Trapezium Mill (capacity 9.5-25 t/h, set to produce 0.045 mm material) followed by an air classifier to achieve D97 = 25 μm.
4. A pulse bag filter and packing system.

Such a configuration ensures consistent product quality while handling Libya’s high ambient dust levels. Alternatively, if ultrafine grades are needed (e.g., 10 μm), the LUM1836 mill with its built-in classifier can replace the MTW and external classifier, simplifying the layout.

Conclusion: Partnering with Shanghai Zenith for Clean Water in Libya

As Libya invests in modernizing its water infrastructure, efficient and reliable diatomite milling lines become essential. Shanghai Zenith Machinery Co., Ltd., with its decades of expertise in ore grinding and ultra-fine powder processing, offers the perfect equipment to meet these demands. Whether you choose the versatile MTW Trapezium Grinding Mill for standard filter aids or the advanced LUM Ultrafine Vertical Mill for premium products, you can trust in Zenith’s commitment to quality, efficiency, and after-sales support. Contact our team today to design a customized diatomite milling solution that will help bring clean water to Libyan communities.
