Cement clinker powder mill for Bangladesh concrete additives

Introduction

The rapid urbanization and infrastructure development in Bangladesh have driven an ever-growing demand for high-quality concrete. In this context, concrete additives such as slag, fly ash, and limestone powder are indispensable for improving workability, durability, and strength. At the heart of these additives lies the need for finely ground cement clinker or supplementary cementitious materials. Selecting the right powder mill is critical to achieving consistent fineness, high throughput, and energy efficiency. Shanghai Zenith Machinery Co., Ltd., a leading Chinese manufacturer of ore grinding equipment with decades of expertise in ultra-fine powder grinding, offers a comprehensive range of mills tailored to the concrete industry. This article explores the technical requirements of cement clinker grinding for concrete additives in Bangladesh and recommends two flagship products from Zenith that deliver superior performance in this application.

The Role of Cement Clinker Grinding in Concrete Additives

Concrete additives are finely ground materials that enhance the properties of fresh and hardened concrete. Cement clinker, when interground with gypsum and other minerals, becomes ordinary Portland cement. However, for specialized additives such as ground granulated blast furnace slag (GGBFS), pozzolans, or limestone fillers, a separate grinding step is necessary. The typical requirement for concrete additive fineness ranges from 300 to 600 m²/kg (Blaine), with particle sizes often below 45 microns. Achieving such fineness demands a mill that can handle abrasiveness, control particle size distribution, and operate efficiently under high humidity conditions common in Bangladesh’s tropical climate. Additionally, power cost and maintenance simplicity are key decision factors for local producers.

Key Considerations for Mill Selection

When choosing a cement clinker powder mill for Bangladesh, several factors must be considered: raw material moisture content (usually <5%), feed size (typically <50 mm), target fineness (0.045–0.038 mm or finer), and hourly capacity (from a few tons to over 100 t/h). Traditional ball mills have been widely used but suffer from high energy consumption and large floor space. Modern vertical roller mills and trapezium mills offer lower energy consumption and more compact layouts. Shanghai Zenith Machinery has engineered its product line to address these exact challenges, with machines that combine crushing, grinding, drying, and classification in a single unit.

Zenith’s Expertise in Grinding Equipment

Shanghai Zenith Machinery Co., Ltd. is recognized as an excellent manufacturer of ore grinding equipment in China, with remarkable achievements in ultra-fine powder grinding. The company specializes in R&D and production of industrial grinding mills, including MTW Trapezium Mill, Ball Mill, MTM Medium-Speed Mill, Raymond Mill, LM Vertical Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Mill, and Hammer Mill. All products are designed with energy efficiency, durability, and easy maintenance in mind. For cement clinker grinding in the concrete additive industry, two models stand out: the LM Vertical Grinding Mill and the Ball Mill. Below we introduce these two solutions in detail.

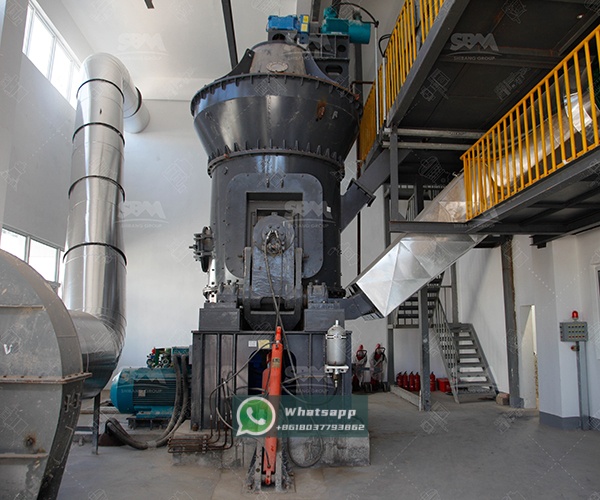

Recommended Product 1: LM Vertical Grinding Mill

The LM Vertical Grinding Mill integrates five functions—crushing, grinding, powder selection, drying, and material conveying—into a single machine. Its small footprint makes it ideal for space-constrained plants in Bangladesh. The mill uses a vertical roller system where the grinding table rotates and the rollers are pressed hydraulically against the material bed. This design ensures high grinding efficiency and low energy consumption compared to ball mills. For cement clinker and concrete additive materials, the LM190K and LM280K models are particularly suitable. With a plate diameter of 1900 mm and capacity up to 68 t/h (output fineness 170-40 μm), the LM190K can handle clinker feed sizes up to 45 mm. The main motor power is 500 kW, which is significantly lower than a ball mill of comparable capacity. Additionally, the built-in classifier allows precise control of particle size distribution, ensuring the high Blaine fineness required for concrete additives. A major advantage for Bangladesh’s humid environment is the integrated drying system: hot air from the mill can remove moisture from the feed, preventing coating and clogging. The LM series also features intelligent control, making operation straightforward for local technicians.

Zenith’s LM vertical mill has been deployed in numerous cement and additive production lines across Asia, Africa, and South America. Its low noise, minimal dust emission, and robust construction make it an excellent choice for sustainable concrete additive production in Bangladesh.

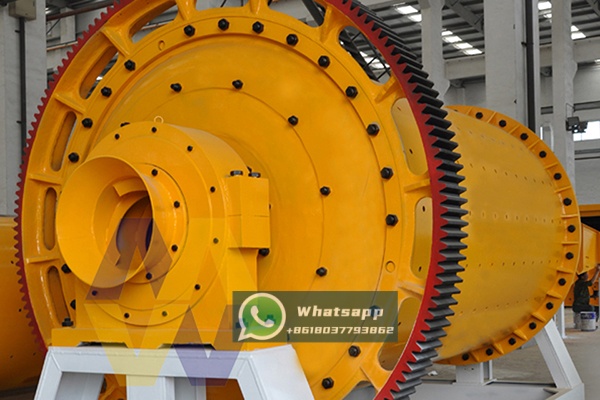

Recommended Product 2: Ball Mill (Wet Type & Over-Flow Type)

For producers who prefer the traditional but proven technology, Shanghai Zenith offers a range of Ball Mills specifically designed for cement clinker and mineral grinding. Ball mills are highly adaptable to raw materials and allow easy adjustment of final product fineness by changing the grinding media size and rotation speed. They are ideal for continuous production and can operate in both dry and wet processes. In Bangladesh, where the availability of water may sometimes be advantageous for wet grinding of certain additives, the wet type ball mill is a practical choice. The Φ1500×4500 ball mill, with a grinding media weight of 11 tons and output capacity of 3–6 t/h, is suitable for small to medium-scale additive plants. For larger operations, the Φ2700×4500 model delivers 12–90 t/h with a power of 430 kW. The over-flow type ball mills (GMQY series) are particularly effective for fine grinding when a narrow particle size distribution is required, as in high-performance concrete additives. The GMQY2445, with 18.2 m³ effective volume and 31 tons of grinding media, can achieve capacities of 9.8–50 t/h depending on feed characteristics. While ball mills have higher energy consumption per ton than vertical mills, their lower initial investment and simpler maintenance can be advantageous for budget-conscious buyers in Bangladesh. Zenith’s ball mills are manufactured using high-quality wear-resistant materials, ensuring long service life under continuous clinker grinding service.

Other Relevant Zenith Products

In addition to the LM Vertical Mill and Ball Mill, Zenith provides the MTW Trapezium Grinding Mill, which is highly efficient for materials up to 50 mm feed size and producing fineness down to 0.038 mm. For ultra-fine applications (325–2500 mesh), the XZM Ultrafine Grinding Mill and LUM Ultrafine Vertical Mill are available. These are ideal when concrete additives require extremely high Blaine values. The MTM Medium-Speed Mill and Raymond Mill are also suitable for softer clinker or additives. However, for the specific combination of high throughput and moderate fineness required for typical concrete additives in Bangladesh, the LM Vertical Mill and Ball Mill remain the most practical choices.

Conclusion

Bangladesh’s concrete additive industry is poised for growth, and reliable cement clinker grinding equipment is the cornerstone of success. Shanghai Zenith Machinery offers advanced mills that combine efficiency, durability, and ease of operation. The LM Vertical Grinding Mill stands out for its compact footprint, energy savings, and integrated drying—perfect for humid climates. The Ball Mill provides a trusted, cost-effective alternative for smaller plants or when wet grinding is preferred. Both machines are backed by Zenith’s decades of expertise in ore grinding and a global service network. For producers aiming to achieve consistent quality and competitive production costs, investing in a Zenith cement clinker powder mill is a strategic decision. Contact Shanghai Zenith Machinery today to discuss your specific requirements and get a customized mill solution for Bangladesh’s concrete additive production.
