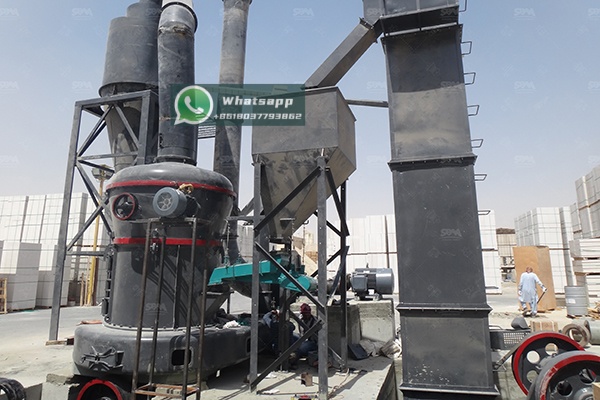

Bentonite mill for high viscosity drilling mud in the Philippines

Introduction

Bentonite is one of the most important industrial minerals used in drilling operations. In the Philippines, where geothermal energy, mineral exploration, water well drilling, and infrastructure projects are expanding, the demand for high viscosity drilling mud is increasing. High viscosity drilling mud is essential for carrying cuttings to the surface, cooling and lubricating the drill bit, stabilizing the borehole wall, and controlling formation pressure. To achieve the required rheology, filtration control, and yield point, bentonite must be processed into a fine powder with a carefully controlled particle size distribution. This is where a professional bentonite mill becomes critical.

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. The company specializes in research, development, and production of industrial powder grinding equipment. Its main products include MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. For bentonite used in high viscosity drilling mud in the Philippines, two products are particularly suitable: the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill.

Why Bentonite Quality Determines Drilling Mud Performance

Bentonite is a montmorillonite-rich clay. When sodium bentonite is mixed with water, it swells and forms a thixotropic gel. This gel gives drilling mud its viscosity, suspension ability, and wall-building properties. For high viscosity drilling mud, the bentonite must hydrate efficiently. If the powder is too coarse, hydration is slow and the mud may not develop sufficient viscosity. If the powder is too fine or has an unfavorable particle size distribution, the mud may become too thick, difficult to pump, or unstable. Therefore, grinding is not simply a size reduction step; it is a key process that affects API yield, filtrate loss, and overall drilling efficiency.

In the Philippines, bentonite may come from local deposits or imported raw materials. Local bentonite often requires sodium activation with soda ash to improve swelling capacity. After activation and drying, the material is ground to a target fineness, typically 200 mesh (75 microns) or finer for API-grade drilling mud. Some high-performance formulations require 325 mesh (45 microns) or a controlled blend of coarse and fine particles. A reliable grinding system must produce a consistent product while handling variations in moisture, hardness, and feed size.

Philippine Market Conditions

The Philippines has a tropical climate with high humidity and frequent rainfall. Bentonite stored or processed in such conditions can absorb moisture, which affects grinding efficiency and powder flowability. Drilling sites are often located in remote areas, including geothermal fields in Leyte and Mindanao, mining districts in Luzon and Mindanao, and water-scarce rural communities. These conditions create demand for grinding equipment that is robust, energy-efficient, and easy to maintain. A mill that can dry and grind in one step offers a major advantage. At the same time, Filipino investors and operators look for low capital and operating costs, short installation periods, and dependable spare parts support.

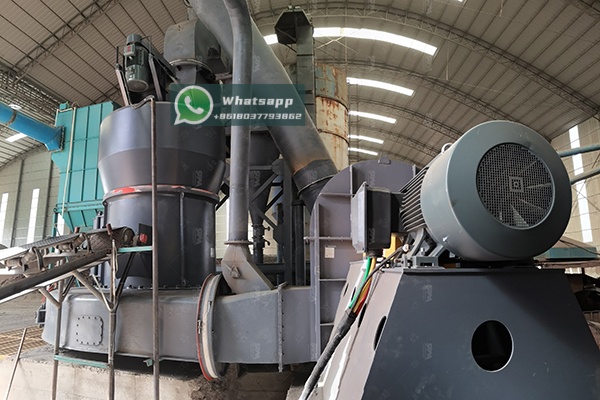

Recommended Product 1: MTW Trapezium Grinding Mill

The MTW Trapezium Grinding Mill is a patented grinding mill known for its compact structure, long service life, and eco-friendly design. It is suitable for processing materials with a maximum input size of 50 mm and can produce a final product as fine as 0.038 mm. This makes it an excellent choice for grinding dried bentonite for high viscosity drilling mud. The MTW mill uses advanced bevel gear transmission, internal lubrication, and a curved air duct, which improve efficiency and reduce pressure loss. Its classifier can be adjusted to produce 200 mesh, 325 mesh, or other target fineness levels required by drilling mud specifications.

For a bentonite processing plant in the Philippines, the MTW138Z, MTW175G, and MTW215G are strong options. The MTW138Z has a capacity of 6-17 t/h with a main motor of 90 kW. The MTW175G can reach 9.5-25 t/h and uses a 160 kW main motor. The MTW215G offers 15-45 t/h with a 280 kW main motor. These capacities match small to medium-scale drilling mud production, as well as centralized powder supply for multiple drilling projects. The mill is also well suited to producing bentonite powder for other applications, such as foundry sand, cat litter, and construction materials.

Key Advantages of MTW for Bentonite

• Adjustable final fineness from 1.6 mm down to 0.045 mm and finer, supporting API-grade drilling mud.
• High capacity with low energy consumption per ton.
• Compact layout and low civil construction cost.
• Environmentally friendly operation with effective dust collection.
• Wear-resistant rollers and rings for long service life.

Recommended Product 2: LM Vertical Grinding Mill

The LM Vertical Grinding Mill integrates five functions—crushing, grinding, powder selection, drying, and material conveying—into a single machine. It offers a small occupational area, produces a fine final powder, and is an eco-friendly production solution. For bentonite in the Philippines, this integration is especially valuable because raw bentonite often contains moisture. The LM vertical mill can use hot air to dry the material while grinding, reducing the need for a separate drying system and lowering overall operating costs.

The LM Vertical Mineral Mill Series includes models such as LM130K, LM190K, and LM280K. The LM130K has a plate diameter of 1300 mm, a capacity of 10-28 t/h, and an output fineness of 170-40 microns. The LM190K offers 23-68 t/h with a 500 kW main motor. The LM280K can reach 50-170 t/h with a 1250 kW main motor. For high viscosity drilling mud, the LM130K and LM190K are particularly suitable for medium and large-scale production. If the target is finer bentonite powder, the LUM Ultrafine Vertical Mill and XZM Ultrafine Grinding Mill can also be considered for specialty grades.

How to Select the Right Bentonite Mill

Selecting a bentonite mill for high viscosity drilling mud requires a systematic evaluation. First, define the target product fineness. Most API-grade drilling mud bentonite is ground to 200 mesh, but some markets prefer 325 mesh or a custom blend. Second, determine the required capacity. A small drilling mud supplier may need 5-10 t/h, while a regional processing plant may require 20-50 t/h or more. Third, assess the feed moisture. If the bentonite has high moisture, the LM Vertical Grinding Mill with drying function is more efficient. If the material is already dried, the MTW Trapezium Grinding Mill offers excellent precision and capacity. Fourth, consider the available space, power supply, and maintenance resources. Finally, work with a manufacturer that can provide testing, process design, installation, and after-sales service.

Shanghai Zenith Machinery Co., Ltd. provides complete grinding solutions for bentonite processing. From jaw crusher and dryer to grinding mill, classifier, dust collector, and packing system, Zenith can design a customized production line for Philippine customers. The company can recommend the most suitable model based on raw material characteristics, target fineness, capacity, and investment budget. With proven equipment and global project experience, Zenith helps customers produce high-quality bentonite for high viscosity drilling mud and gain a competitive advantage in the Philippine market.

Conclusion

High viscosity drilling mud is essential for safe and efficient drilling in the Philippines. The performance of the mud depends heavily on the quality of bentonite powder, which in turn depends on the grinding process. The MTW Trapezium Grinding Mill and LM Vertical Grinding Mill from Shanghai Zenith Machinery Co., Ltd. offer reliable, efficient, and flexible solutions for bentonite processing. The MTW mill is ideal for precise grinding of dried bentonite, while the LM vertical mill excels in combined drying and grinding for high-moisture materials. By choosing the right mill and working with an experienced manufacturer, Philippine bentonite processors can meet the growing demand for high viscosity drilling mud in geothermal, mining, water well, and construction markets.
