Basalt Grinding Mill for Mineral Filler Production in UAE

The United Arab Emirates has turned its geographical location and substantial investments in infrastructure into a regional production hub for construction materials. One of the most value-adding opportunities in this sector is the production of mineral fillers from basalt. Mineral fillers are fine powders which are used as functional additives in asphalt pavements, cement-based products, polymer composites, coatings and industrial building materials. In the UAE, where road construction, prefabricated concrete and oil-field projects demand high-performance materials, a basalt grinding mill for mineral filler production in UAE can transform local volcanic rock into a consistent and profitable product line.

Basalt is abundant in and around the UAE, particularly in the northern emirates and adjacent mountain zones. Unlike limestone or dolomite, basalt gives exceptionally high compressive strength, excellent resistance to chemical attack and high thermal stability. When ground to a powder, it functions as a strong extender and stabilizer. For example, asphalt mastic sometimes uses fine mineral powder to fill voids in mineral aggregates; a well-graded basalt filler improves the tensile strength of asphalt, reduces rutting, and improves moisture resistance. Fine basalt powder is also used in grouts, adhesive mortars, engineered stone and even as a partial substitute for Portland cement in special formulations.

Why dry grinding technology is the heart of a basalt filler plant

Mineral filler production normally requires final powders in the range of 75 micrometers, or 200 mesh, down to about 45 micrometers, known as 325 mesh. Some advanced product specifications demand an ultrafine performance below 30 micrometers. To create these powders consistently, the grinding system must combine high reliability, accurate particle-size classification and low specific energy consumption.

Basalt has a relatively high hardness and often contains abrasive minerals. This creates two important requirements. The first is wear protection: the grinding components, classifier blades and internal surfaces have to be manufactured from wear-resistant alloys. The second is process stability: sudden changes in feed hardness or feed moisture can destabilize the mill and affect the final filler quality. For this reason, the best choice is a mill with robust built-in classifiers, automated lubrication, and a design that is proven on hard rock.

Water availability in the UAE is also a concern. Dry grinding is therefore the preferred method. A modern mill can dry, grind and classify within a single airflow loop, so no water is required and no slurry treatment is needed. This is exactly the type of process offered by Shanghai Zenith Machinery Co., Ltd. As an excellent manufacturer of ore grinding equipment in China, Zenith has developed a full range of mills suitable for mineral filler projects from small pilot plant capacities to large industrial lines.

Considerations before choosing a basalt grinding mill

Before recommending equipment, it is useful to consider three factors. The first is feed size. In most UAE aggregates plants, basalt can be fed to the mill after secondary or tertiary crushing. The mill should accept feed sizes up to 30 to 50 mm in order to simplify the plant layout. The second is target fineness and throughput. A project that needs 10 tonnes per hour of 45-micron filler has a different equipment selection from a plant that needs 40 tonnes per hour. The third is cost of operation. Grinding hard basalt consumes power; selecting a properly sized mill prevents over-grinding and excessive wear.

Shanghai Zenith Machinery Co., Ltd. has technical solutions for each operating scale. The Zenith main products include MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill and Hammer Mill. For most basalt mineral filler operations, two mills are especially useful: the MTW Trapezium Grinding Mill and the LUM Ultrafine Vertical Mill.

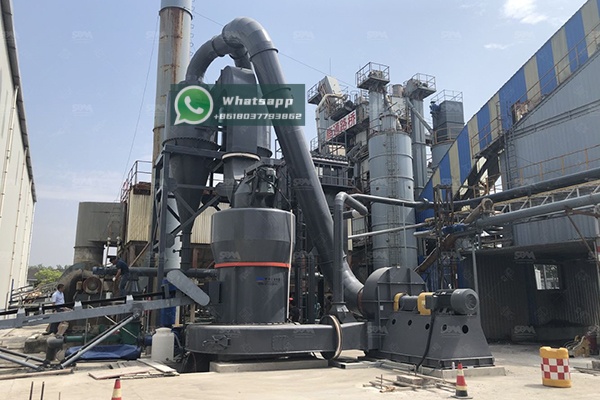

Recommended solution 1: MTW Trapezium Grinding Mill

The MTW Trapezium Grinding Mill is a patented mill with compact structure and particularly strong adaptive features. It is suitable for processing materials with a maximum feed size of up to 50 mm and can produce a final product as fine as 0.038 mm, or about 38 microns. The trapezium-shaped roller and grinding ring reduce vibration and make the mill suitable for hard and abrasive materials such as basalt. The classifier inside the mill can be adjusted without stopping the machine, allowing the plant to respond to changing market requirements.

For a typical basalt filler production line in the UAE, MTW models offer a wide capacity range. The MTW110 can produce 3 to 9 tonnes per hour with a 55 kW main motor; MTW138Z produces 6 to 17 tonnes per hour with a 90 kW main motor and a 110 kW fan; MTW175G is rated at 9.5 to 25 tonnes per hour with a 160 kW main motor. For larger projects, MTW215G can produce 15 to 45 tonnes per hour with a 280 kW main motor. These capacities make the MTW series a very efficient basalt grinding mill for mineral filler production in UAE, especially when the target product is 325 mesh or slightly finer.

Recommended solution 2: LUM Ultrafine Vertical Mill

When the filler specification becomes more demanding, the LUM Ultrafine Vertical Mill is the preferred option. It has been developed for ultra-fine powder processing and offers a final fineness with D97 in the range of 5 to 30 micrometers. For high-performance mineral filler products, this is an advantage because the very fine fraction improves particle packing, surface smoothness and chemical reactivity.

The LUM mill integrates grinding, drying, classifying and transportation in one unit. This reduces the plant footprint, which is valuable in industrial areas where space is expensive. It also uses a classifying system that ensures a high percentage of finished fines is delivered continuously. Intelligent control makes operation easier; lubricating oil and hydraulic pressures can be monitored from a central panel. These features make LUM ideal for high-value basalt filler and ultra-fine mineral powder applications.

The LUM1525 model has a main machine power of 220 to 250 kW and can produce 1.6 to 11.5 tonnes per hour. Larger models such as LUM1632 have 280 to 315 kW installed power and produce 2.0 to 13.5 tonnes per hour. If extra output is needed, LUM1836 provides 355 to 400 kW main machine power with a throughput up to 15 tonnes per hour. These units are particularly valuable when producing fillers with a D97 of 30 micrometers or below, which is difficult to achieve with ordinary pendulum mills.

Supporting the UAE mineral filler industry

Shanghai Zenith Machinery Co., Ltd. is not just an equipment supplier; it is an engineering partner. The company is specialized in the research, development and production of industrial powder grinding equipment. Each machine is supported by process documentation, flow sheet design, field commissioning and after-sales service. Whether the operator chooses MTW for medium-fine filler production or LUM for ultra-fine basalt products, the goal is the same: high availability, repeatable quality and low cost per tonne.

In the UAE, successful basalt grinding projects also depend on local conditions such as ambient humidity, feed contamination and electric power quality. Zenith equipment is designed with generous safety factors and can be configured with PLC control, dust collection, soundproofing and complete ancillary systems. This reduces project risk and gives operators the flexibility to refine their filler specifications as market demand evolves.

With abundant basalt resources and a rapidly expanding industrial base, the UAE offers an ideal environment for mineral filler manufacturing. Choosing the correct grinding technology is the first step toward business success. Shanghai Zenith Machinery Co., Ltd. delivers exactly that technology with proven performance and professional support. Therefore, for new projects or plant upgrades in the Emirates, the MTW Trapezium Grinding Mill and LUM Ultrafine Vertical Mill represent two dependable and cost-effective choices for producing high-quality basalt mineral filler.
