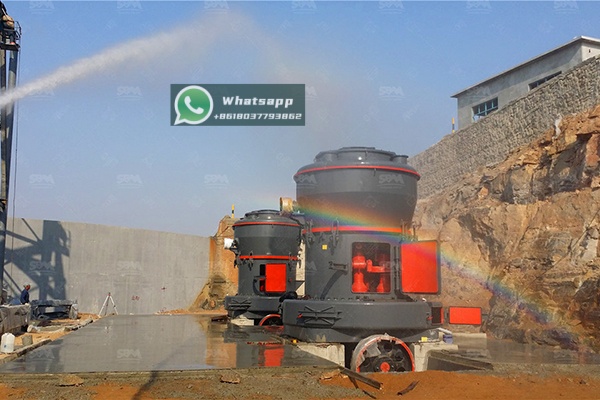

Quartz milling line for Oman glass making

Introduction

The Sultanate of Oman is emerging as a regional hub for glass manufacturing, driven by construction, beverage packaging, automotive and solar energy industries. Glass production demands consistent quality silica sand or quartz powder, which must meet strict specifications for particle size distribution, chemical purity and low iron content. Shanghai Zenith Machinery Co., Ltd., a leading Chinese manufacturer of ore grinding equipment, has developed advanced quartz milling lines that are specifically suited for Omani mineral processors. With decades of experience and a full range of grinding mills, Zenith helps producers transform raw quartz into high-value glass-grade powder.

The Importance of Quartz Powder for Glass Making

Silica (SiO2) is the backbone of glass. In a typical glass batch, silica sand or quartz powder accounts for 60 to 75 percent of the raw material. The quality of quartz directly influences the melting behaviour, clarity, strength and chemical resistance of the final glass. For example, container glass requires silica powder with a particle size mainly between 0.1 mm and 0.6 mm, while flat glass and fibreglass often require finer and more uniform particle distributions. Iron oxide content must be carefully controlled because even small amounts cause undesirable colouration. Therefore, the milling process must be precise, stable and contamination-free.

Oman has ample quartz resources, but mined quartz often needs a complete processing line to remove impurities and reach the required fineness. A well-designed quartz milling line can turn lumpy quartz into powder with high purity and controlled granulometry. This creates an excellent opportunity for investors to substitute imported glass sand with locally produced quartz powder.

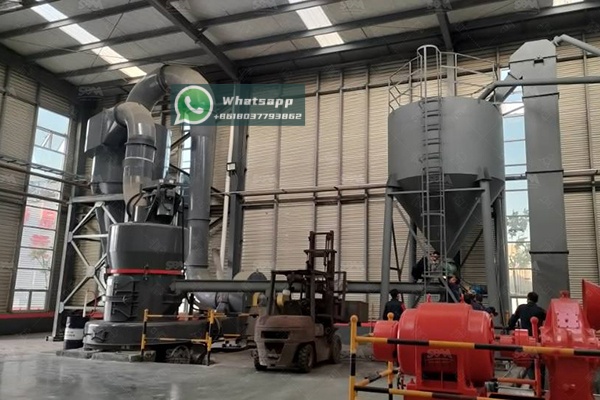

Flow Sheet of a Complete Quartz Milling Line

A standard quartz milling line in Oman typically includes a jaw crusher, an impact crusher or cone crusher, a bucket elevator, a vibrating feeder, a grinding mill, a classifier, a dust collection system, and a powder packing unit. The material is first reduced by crushing to a size smaller than 30–50 mm, which is the maximum feed size accepted by most grinding mills. The crushed quartz is then conveyed into the grinding mill, where it is ground to the target fineness. Hot air or a blower system removes moisture, and a cyclone or bag filter collects the finished powder.

Recommended Zenith Equipment for the Quartz Milling Line

For the core grinding stage, Shanghai Zenith Machinery offers several proven mills. Among them, the MTW Trapezium Grinding Mill and the LUM Ultrafine Vertical Mill are especially suitable for quartz milling in glass production.

MTW Trapezium Grinding Mill

The MTW mill is a flagship product with multiple patents. It features a compact structure, long service life, and environment-friendly operation. The mill can accept a maximum feed size of up to 50 mm and produce powder from 1.6 mm down to 0.045 mm. This range is ideal for glass-making quartz sand. Depending on the model, the MTW mill delivers capacities from 3 to 45 t/h, making it flexible for small, medium and larger Omani operations.

Key parameters of the MTW series include:

• Max feed size: < 30–50 mm
• Final size: 1.6–0.045 mm
• Capacity: 3–45 t/h
• Main motor: 55–280 kW

For a mid-sized quartz milling line, the MTW175G is a strong choice. It accepts feed up to 40 mm, produces a final product as fine as 0.045 mm, and has a capacity of 9.5–25 t/h. The main motor is 160 kW, with a fan motor of 200 kW. These specifications make it an efficient solution for glass-grade silica sand production.

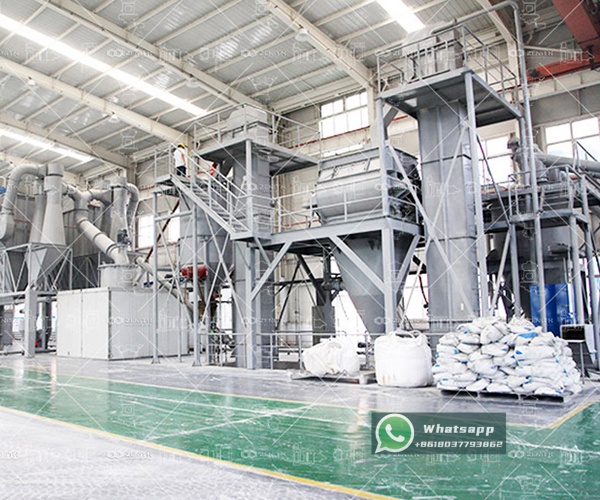

LUM Ultrafine Vertical Mill

When an Omani glass plant needs fine or ultra-fine quartz powder for high-end applications, such as fibreglass, specialty glassware or solar glass, the LUM Ultrafine Vertical Mill is the right equipment. This mill integrates grinding, drying, classifying and conveying into one unit. It occupies a small area and is easy to maintain with intelligent control systems. The LUM series can achieve a final product with D97 in the range 5–30 μm, which is essentially ultrafine powder.

Key parameters of the LUM series include:

• Main machine power: 220–400 kW
• Capacity: 1.6–15 t/h
• Output fineness D97: 5–30 μm

By adding an LUM vertical mill to the line, a producer can create premium quartz powder for the growing speciality glass market in the Gulf region.

Why Choose Shanghai Zenith Machinery

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China. The company specialises in research, development and production of industrial powder grinding equipment. Zenith’s product portfolio includes MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill and Hammer Mill. This broad range enables Zenith to design a solution that exactly matches the ore characteristics, capacity requirements and product specifications of an Omani quartz project.

Zenith mills are built with durable wear parts and advanced sealing systems to reduce dust and maintenance. The grinding process is highly efficient, which saves electricity and operating cost. In a dry climate like Oman, water scarcity is always a concern; Zenith’s dry grinding technology avoids the need for large quantities of water. This is a decisive advantage compared with wet processing methods.

Additional Equipment Options

For plants that prefer very high throughput and low capital investment, the Zenith Ball Mill remains a reliable option. It is widely used in metallurgy, cement and non-metallic minerals, and it can grind quartz with continuous operation. The wet type over-flow ball mill, such as the GMQY2445, has an effective volume of 18.2 m³ and a capacity up to 50 t/h. However, for glass-grade dry quartz powder, the MTW and LUM mills are more targeted solutions because they combine grinding and classifying with lower energy consumption.

Designing a Quartz Milling Line for Oman

When designing a quartz milling line for an Omani investor, Zenith engineers consider several factors. First is the raw quartz size and hardness. Oman quartz can vary from sand deposits to hard rock. A jaw crusher is typically used for the primary stage, followed by a cone crusher to reduce particles to the required feed size. Second is the desired output fineness. For standard container glass, the MTW mill is sufficient. For ultrafine glass powder, the LUM mill is added or used alternatively. Third is capacity. A line for 20 t/h of glass sand might include a MTW215G mill, which can produce 15–45 t/h. Smaller operations may choose MTW138Z or MTW110Z.

Dust collection is another important aspect. Quartz dust can cause health problems, so Zenith’s mills are equipped with bag filters and negative-pressure systems. The entire line can be automated, with controls that maintain stable fineness and throughput. This is essential for glass manufacturers because inconsistent particle size affects melting and forming processes.

Benefits for the Omani Market

Building a local quartz milling line in Oman reduces reliance on imported glass sand. It creates jobs, develops domestic mineral downstream processing, and offers a steady supply of raw material. Oman’s strategic location on the Arabian Sea also allows export to other Gulf countries, East Africa and South Asia. With Zenith’s modern grinding technology, Omani producers can produce powder that meets international glass industry standards.

Furthermore, Zenith’s after-sales support includes spare parts supply, installation guidance and operator training. The company has wide experience in exporting equipment to Middle East and North African countries. Therefore, Omani customers can expect reliable service and a fast response.

Product Recommendation Summary

For a dedicated quartz milling line for glass making, we recommend the MTW Trapezium Grinding Mill as the primary unit for producing silica sand in the 0.045–1.6 mm range. If the target product is ultrafine quartz flour, we recommend the LUM Ultrafine Vertical Mill, which produces powders with D97 from 5 to 30 μm. Together, these two machines give Omani glass makers the flexibility to supply different market segments.

Conclusion

Quartz milling for glass making requires a balanced combination of crushing, grinding and classifying equipment. Shanghai Zenith Machinery provides complete solutions and individual grinding mills that deliver the required fineness, purity, capacity and energy efficiency. By adopting Zenith’s MTW Trapezium Grinding Mill and LUM Ultrafine Vertical Mill, Omani investors can build a world-class quartz milling line that supports the nation’s industrial diversification and creates long-term profitability.
